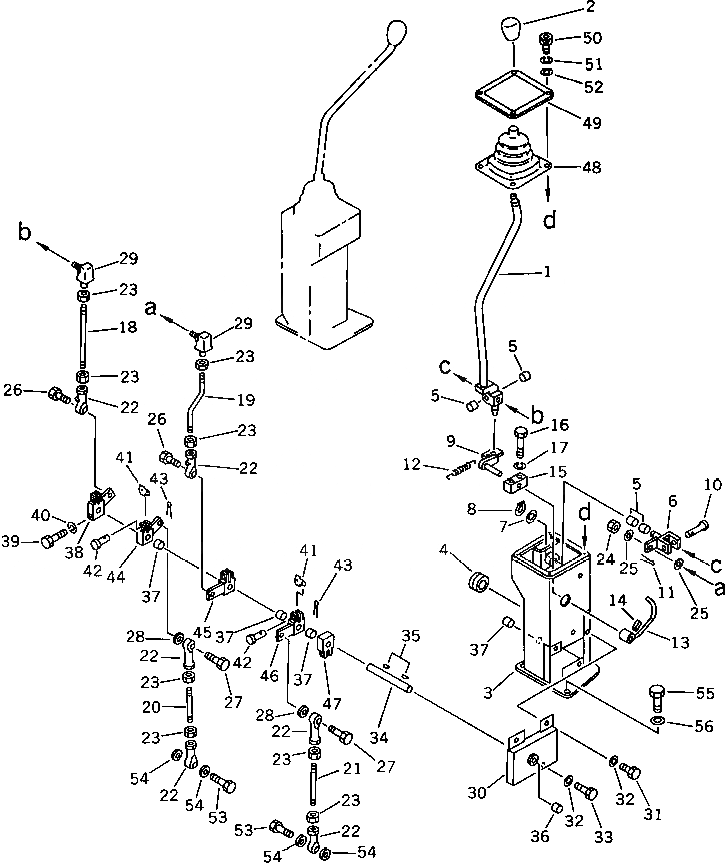

Запчасти Komatsu PC20-5 РЫЧАГ УПРАВЛЕНИЯ РАБОЧИМ ОБОРУДОВАНИЕМ (QUICK SHIFT ТИП) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

|$0

20S-43-00400

CONTROL LEVER ASS'Y

1

203-43-42132

LEVER

2

20D-43-11370

KNOB

3

20S-43-24110

STAND

4

09415-02512

CAP

5

203-43-31420

BUSHING

6

205-43-52140

YOKE

7

01641-21423

WASHER

8

04064-01410

RING,SNAP

9

20S-43-21370

LEVER

10

04205-11450

PIN

11

04050-14022

PIN,COTTER

12

203-43-21370

SPRING

13

205-43-63830

LEVER

14

04025-00520

PIN,SPRING

15

20S-43-21390

BLOCK

16

01010-50840

BOLT

17

01602-20825

WASHER,SPRING

18

04245-41019

ROD

19

20S-43-24210

ROD

20

04245-41009

ROD

21

04245-41011

ROD

22

04250-41056

END,ROD

23

01582-11008

NUT

24

01582-11008

NUT

25

01643-31032

WASHER

26

01010-51025

BOLT

27

01010-51030

BOLT

28

04254-01032

SPACER

29

207-43-11170

JOINT

30

20S-43-24120

BRACKET

31

01010-51016

BOLT

32

01602-21030

WASHER,SPRING

33

01010-51020

BOLT

34

20S-43-24130

SHAFT

35

04010-00516

KEY

36

09350-01620

BUSHING

37

09350-01615

BUSHING

38

20S-43-24140

LEVER

39

01010-50830

BOLT

40

01602-20825

WASHER,SPRING

41

20S-43-24190

PLATE

42

04205-10625

PIN

43

04050-11612

PIN,COTTER

44

20S-43-24150

LEVER

45

20S-43-24160

LEVER

46

20S-43-24170

LEVER

47

20S-43-24180

LEVER

48

203-43-42782

BELLOWS

49

205-43-62260

COVER

50

205-06-62170

BOLT

51

205-06-62180

WASHER,SPRING

52

205-06-62190

WASHER

53

01010-51035

BOLT

54

04254-01032

SPACER

55

01010-51230

BOLT

56

01643-31232

WASHER
