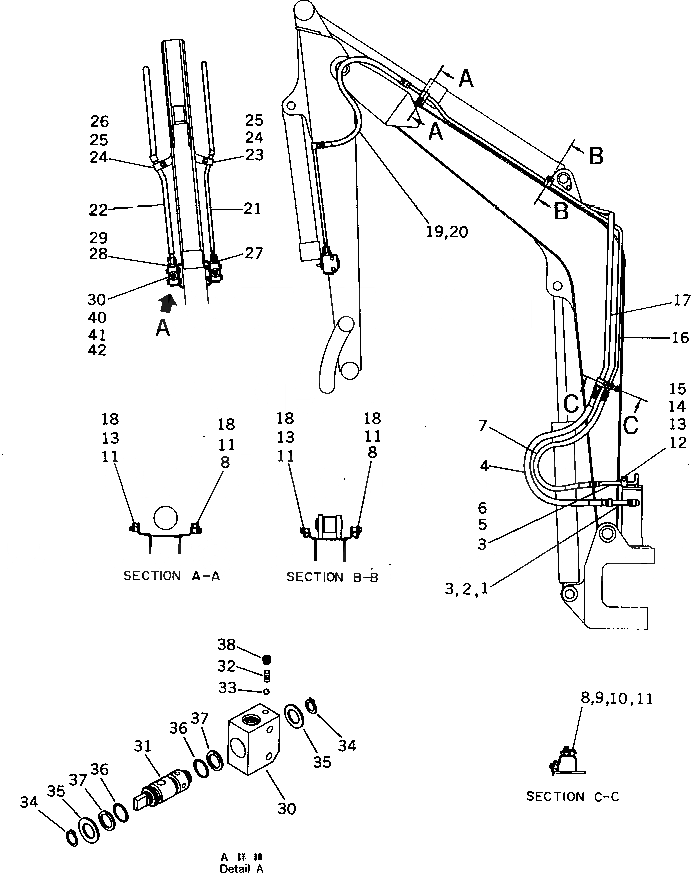

Запчасти Komatsu PC20-5 HYD. ТРУБЫ (ПОВОРОТНОЕ СОЕДИНЕНИЕ - НАВЕСН. ОБОРУД) (США СПЕЦ-Я.)(W.A.P.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20S-973-2250

ELBOW

2

20R-62-21540

ELBOW

3

07002-11823

O-RING

4

07113-00410

HOSE

5

20S-973-2230

TUBE

6

20R-62-21141

ELBOW

7

07113-00309

HOSE

8

201-62-21890

CLAMP

9

20S-62-13140

CLAMP

10

01010-51025

BOLT

11

01602-21030

WASHER,SPRING

12

20S-973-2240

PLATE

13

20S-62-13140

CLAMP

14

01010-51020

BOLT

15

01602-21030

WASHER

16

20R-973-3210

TUBE

17

20R-973-3220

TUBE

18

01010-51020

BOLT

19

20R-62-21280

HOSE

20

20T-62-56180

HOSE

21

20R-973-2171

TUBE

22

20R-973-2161

TUBE

23

20S-62-13140

CLAMP

24

01010-51020

BOLT

25

01602-21030

WASHER,SPRING

26

201-62-21890

CLAMP

27

114-62-23110

NIPPLE

28

232-60-14271

NIPPLE

29

07002-12434

O-RING

|$29

20X-973-1200

VALVE ASS'Y

30

20X-973-1210

BODY

31

20X-973-1220

SPOOL

32

236-10-12240

SPRING

33

04260-00793

BALL

34

04064-02012

RING

35

01643-32060

WASHER

36

07000-13025

O-RING

37

07001-03025

RING,BACK-UP

38

07043-00108

PLUG

39

07040-12414

PLUG

40

07002-12434

O-RING

41

01010-51060

BOLT

42

01643-31032

WASHER
