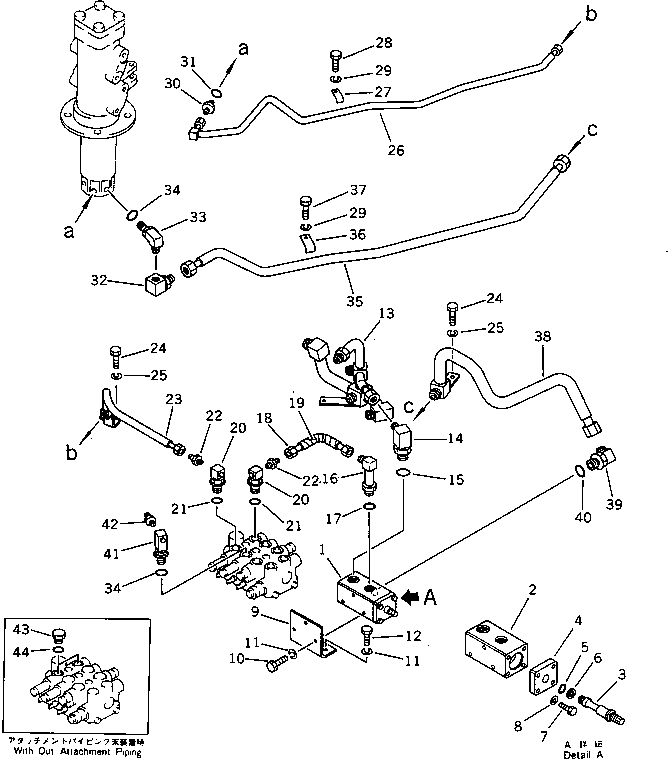

Запчасти Komatsu PC20-5 HYD. ТРУБЫ(КЛАПАН - ПОВОРОТНОЕ СОЕДИНЕНИЕ)(США СПЕЦ-Я.)(W.НАВЕСН.ОБОРУДТРУБЫ) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20T-973-2600

VALVE ASS'Y

2

20T-973-2620

BODY

3

20T-973-2630

SPOOL

4

20T-973-2640

PLATE

5

07000-12018

O-RING

6

07001-02018

RING,BACK-UP

7

01010-50820

BOLT

8

01643-30823

WASHER

9

20S-973-2160

BRACKET

10

01010-51020

BOLT

11

01602-21030

WASHER,SPRING

12

01010-51030

BOLT

13

20S-973-2450

TUBE

14

201-936-7520

ELBOW

15

07002-02434

O-RING

16

20R-62-11360

ELBOW

17

07002-12034

O-RING

18

07108-20304

HOSE

19

203-62-32440

COVER

20

20S-973-2580

TEE

21

07002-11823

O-RING

22

176-62-15490

NIPPLE

23

20S-973-2510

TUBE

24

01010-51020

BOLT

25

01602-21030

WASHER,SPRING

26

20S-973-2520

TUBE

27

20S-62-13140

CLAMP

28

01010-51020

BOLT

29

01602-21030

WASHER,SPRING

30

20S-62-21690

UNION

31

07002-11823

O-RING

32

20S-62-21710

ELBOW

33

20S-973-2570

ELBOW

34

07002-11823

O-RING

35

20S-973-2550

TUBE

36

201-62-21890

CLAMP

37

01010-51025

BOLT

38

20S-973-2540

TUBE

39

20S-62-11310

ELBOW

40

07002-12434

O-RING

41

20S-973-2590

ELBOW

42

176-62-15490

NIPPLE

43

07040-11812

PLUG,(WITHOUT ATTACHMENT PIPING)

44

07002-11823

O-RING,(WITHOUT ATTACHMENT PIPING)
