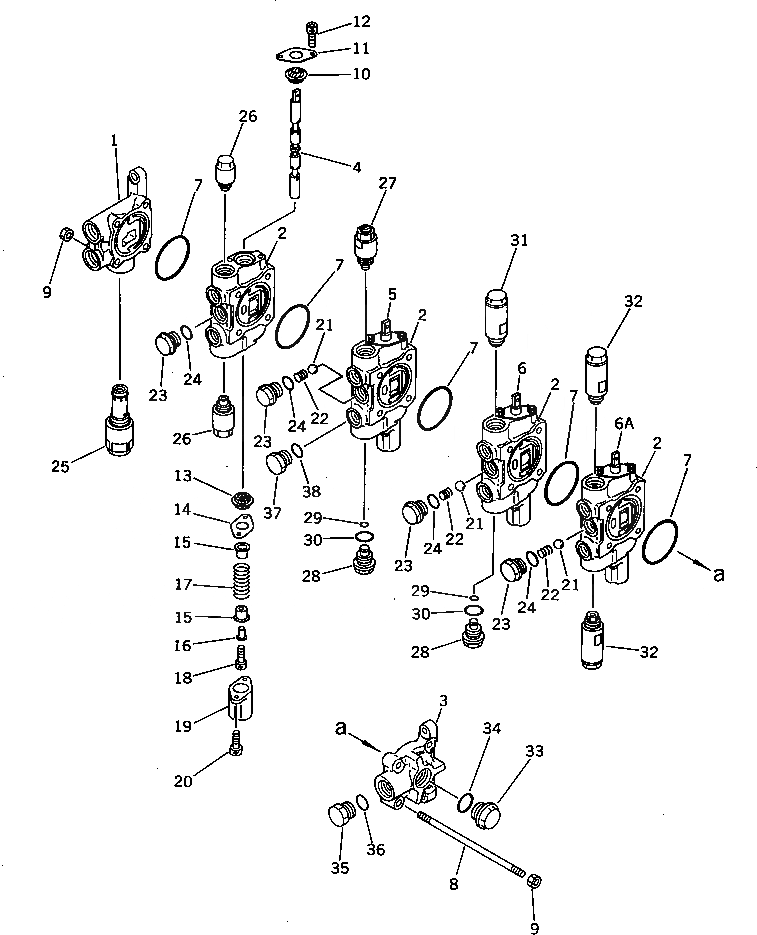

Запчасти Komatsu PC20-5 4-Х СЕКЦИОНН. КЛАПАН (/) (США СПЕЦ-Я.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$0

709-34-11500

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

COVER

4

SPOOL

5

SPOOL

6

SPOOL

6A

SPOOL

7

07000-12055

O-RING

8

700-25-11210

STUD

9

01580-10806

NUT

10

709-32-11530

SEAL,DUST

11

709-32-11540

PLATE

12

01252-30610

BOLT

13

709-32-11530

SEAL,DUST

14

709-32-11540

PLATE

15

709-32-11550

RETAINER

16

709-32-11560

COLLAR

17

709-32-11580

SPRING

18

01252-30620

BOLT

19

709-32-11570

COVER

20

01252-30616

BOLT

21

04260-01270

BALL

22

709-32-11820

SPRING

23

709-32-11810

PLUG

24

07002-11823

O-RING

25

700-23-58001

VALVE ASS'Y

26

709-30-61100

VALVE ASS'Y

27

709-30-65701

VALVE ASS'Y

28

709-32-11830

PLUG

29

709-32-11840

O-RING

30

07002-02034

O-RING

31

709-30-62300

VALVE ASS'Y

32

709-30-62200

VALVE ASS'Y

33

700-22-11370

PLUG

34

07002-02434

O-RING

35

07040-12012

PLUG

36

07002-02034

O-RING

37

07040-11812

PLUG

38

07002-11823

O-RING
