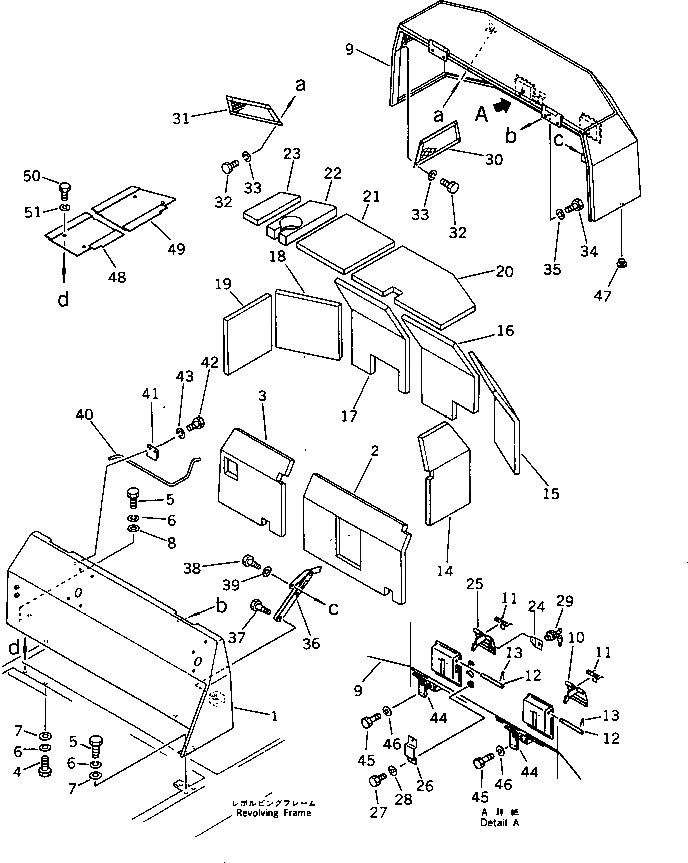

Запчасти Komatsu PC20-5 КАБИНА (/) (США СПЕЦ-Я.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$0

20S-54-21300

COVER ASS'Y

1

20S-54-21310

COVER

2

20S-54-21330

SHEET

3

20S-54-21340

SHEET

4

01010-51025

BOLT

5

01010-51030

BOLT

6

01602-21030

WASHER,SPRING

7

01643-31032

WASHER

8

01643-31232

WASHER

|$9

20S-54-25100

HOOD ASS'Y

9

20S-54-25110

HOOD

10

20S-54-21450

LEVER

11

20T-54-26430

SPRING

12

20S-54-21460

PIN

13

04050-13018

PIN,COTTER

14

20S-54-21210

SHEET

15

20S-54-21220

SHEET

16

20S-54-21430

SHEET

17

20S-54-25120

SHEET

18

20S-54-21250

SHEET

19

20S-54-21260

SHEET

20

20S-54-21270

SHEET

21

20S-54-21280

SHEET

22

20S-54-21290

SHEET

23

20S-54-21350

SHEET

24

20R-54-23240

PLATE

25

20S-54-25130

LEVER

26

20T-54-28130

COVER

27

01010-50812

BOLT

28

01643-30823

WASHER

29

205-54-63730

LOCK ASS'Y

30

20S-54-21120

COVER

31

20S-54-21130

COVER

32

01010-50816

BOLT

33

01602-20825

WASHER,SPRING

34

01010-51020

BOLT

35

01602-21030

WASHER,SPRING

36

20R-54-21430

STAY

37

20R-54-21440

BOLT

38

20R-54-21450

BOLT

39

07005-01412

GASKET

40

20S-54-21142

BAR

41

20S-54-21160

BRACKET

42

01010-51020

BOLT

43

01602-21030

WASHER,SPRING

44

20R-54-21170

LOCK

45

01010-51025

BOLT

46

01602-21030

WASHER,SPRING

47

203-54-32260

STOPPER

48

20S-54-21380

COVER

49

20S-54-21390

COVER

50

01010-51020

BOLT

51

01602-21030

WASHER,SPRING

52

20S-54-21170

CLIP,(NOT SHOWN)
