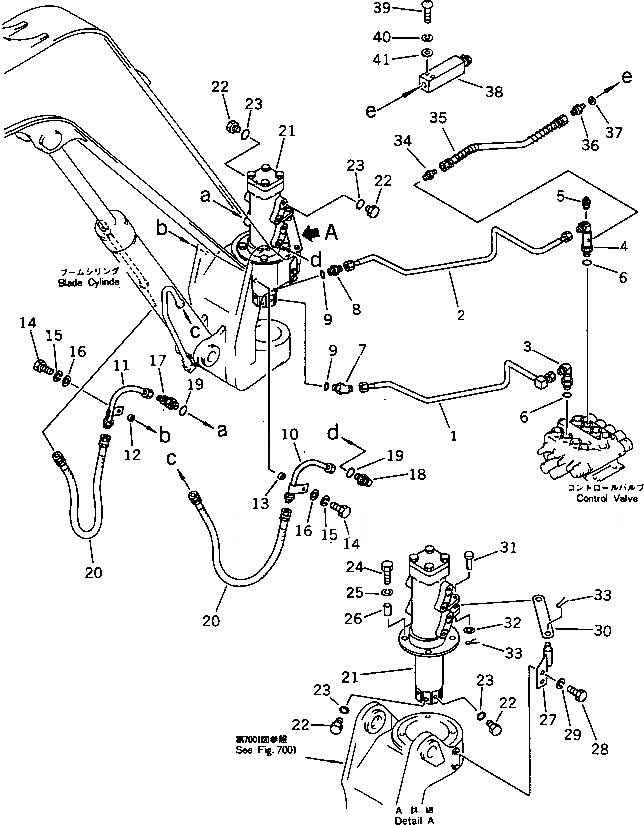

Запчасти Komatsu PC20-5 ГИДРОЛИНИЯ (КЛАПАН TO/FROM ЦИЛИНДР СТРЕЛЫ) (TBG.СПЕЦ-Я.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20S-62-21650

TUBE

2

20S-62-21660

TUBE

3

20R-62-11311

ELBOW

4

20S-62-24120

ELBOW

5

07042-20108

PLUG

6

07002-12034

O-RING

7

20S-62-21670

ELBOW

8

20S-62-21690

UNION

9

07002-11823

O-RING

10

20S-62-23120

TUBE

11

20S-62-23130

TUBE

12

20S-62-23140

SPACER

13

20S-62-23160

SPACER

14

01010-51025

BOLT

15

01602-21030

WASHER,SPRING

16

01640-21016

WASHER

17

20R-62-21141

ELBOW

18

20S-62-23150

ELBOW

19

07002-11823

O-RING

20

20S-62-23110

HOSE

21

703-07-13100

SWIVEL JOINT ASS'Y

22

07040-11812

PLUG

23

07002-11823

O-RING

24

01010-51045

BOLT

25

01602-21030

WASHER,SPRING

26

207-54-15180

SPACER

27

20S-60-21410

BRACKET

28

01010-51025

BOLT

29

01602-21030

WASHER,SPRING

30

20S-60-21420

LINK

31

201-60-11230

PIN

32

01641-21626

WASHER

33

04050-14025

PIN,COTTER

34

20S-62-21740

NIPPLE

35

198-79-16790

HOSE

36

20S-62-14161

NIPPLE

37

20S-62-14180

GASKET

38

20S-60-13120

SWITCH,OIL PRESSURE

39

01220-40545

SCREW

40

01601-20513

WASHER,SPRING

41

01641-20508

WASHER
