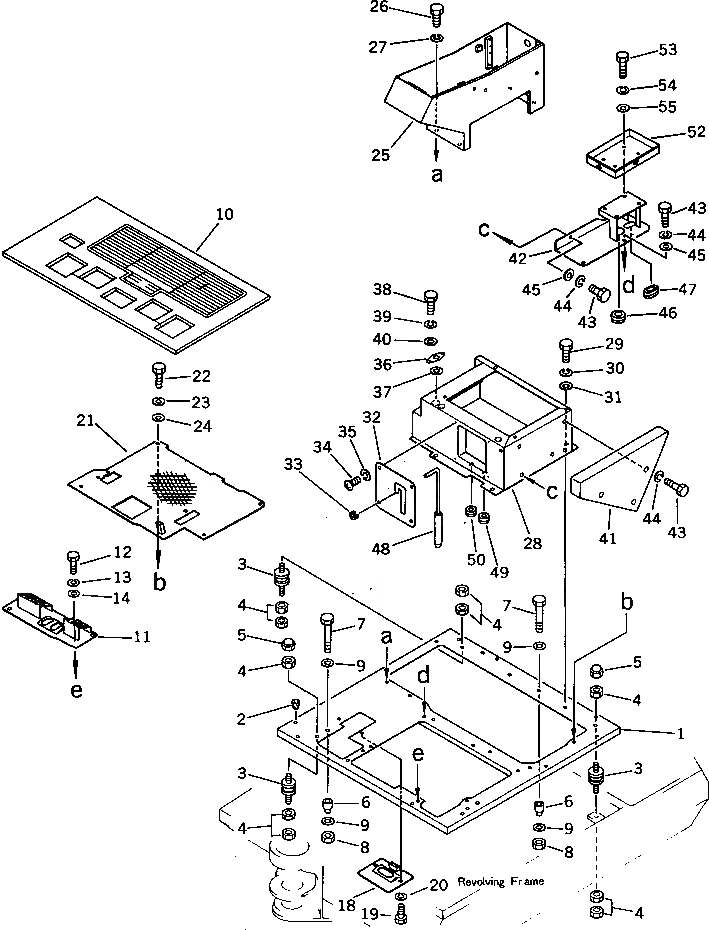

Запчасти Komatsu PC20-5 КАБИНА (СПЕЦ-Я TBG) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
1
20S-54-22111
FRAME
1
20S-54-22110
FRAME
3
20R-01-12111
CUSHION
4
01580-11210
NUT
5
20T-54-26130
NUT
6
20T-54-11510
BOSS
7
01010-51680
BOLT
8
01580-11613
NUT
9
01643-31645
WASHER
10
20S-54-22220
MAT,FLOOR
11
20S-54-24130
COVER
12
01010-51025
BOLT
13
01602-21030
WASHER,SPRING
14
01643-31032
WASHER
18
20S-54-24120
COVER
19
01010-51025
BOLT
20
01602-21030
WASHER,SPRING
21
20S-54-22150
FLOOR
22
01010-51025
BOLT
23
01602-21030
WASHER,SPRING
24
01643-31032
WASHER
25
20S-54-22130
BOX,PANEL
26
01010-51025
BOLT
27
01602-21030
WASHER,SPRING
28
20S-54-22120
BOX
29
01010-51025
BOLT
30
01602-21030
WASHER,SPRING
31
01643-31032
WASHER
32
20S-54-22230
PLATE
33
20S-54-12310
GROMMET
34
01220-40616
SCREW
35
01602-20619
WASHER,SPRING
36
20S-54-22240
PLATE
37
20S-54-22250
SHEET
38
01010-50620
BOLT
39
01602-20619
WASHER,SPRING
40
01643-30623
WASHER
41
20S-54-22180
COVER
42
20S-54-24110
COVER
43
01010-51025
BOLT
44
01602-21030
WASHER,SPRING
45
01643-31032
WASHER
46
09415-05016
CAP
47
120-06-24110
GROMMET
48
20S-54-12220
PIN
49
08037-01610
GROMMET
50
09415-01610
CAP
51
20S-54-24110
COVER
52
20S-54-15210
CASE
53
01010-50620
BOLT
54
01602-20619
WASHER,SPRING
55
01643-30623
WASHER
Выбрано товаров: 52
