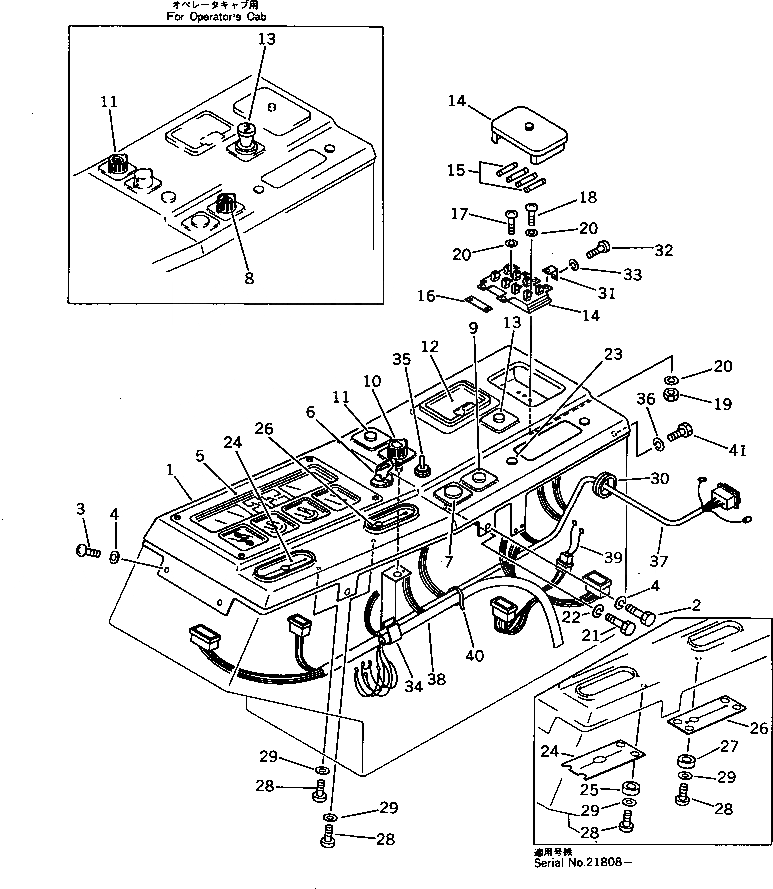

Запчасти Komatsu PC20-5 ПАНЕЛЬ ПРИБОРОВ (СПЕЦ-Я TBG) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20S-06-21270

PANEL

2

01010-50820

BOLT

3

01220-40820

SCREW

4

01602-20825

WASHER,SPRING

5

20S-06-21240

GAUGE ASS'Y,CLUSTER

6

08086-20000

SWITCH,STARTING

7

09415-01008

CAP

8

205-06-71321

SWITCH,HEATER

9

09415-00706

CAP

10

205-06-71331

SWITCH,LAMP

11

205-06-71341

SWITCH,WIPER

12

20S-06-21210

ASHTRAY

13

20S-06-21190

LIGHTER

14

20S-06-21130

BOX,FUSE

15

08040-02000

FUSE, 20A

16

150-06-14290

TERMINAL

17

01220-40525

SCREW

18

01220-40520

SCREW

19

01580-10504

NUT

20

01601-20513

WASHER,SPRING

21

01010-50610

BOLT

22

01602-20619

WASHER,SPRING

23

09415-00706

CAP

24

20S-06-21161

PLATE

24

20S-06-21160

PLATE

25

20S-06-21690

SPACER

26

20S-06-21171

PLATE

26

20S-06-21170

PLATE

27

20S-06-21690

SPACER

28

01220-40510

SCREW

29

362-54-23680

WASHER

30

08037-02512

GROMMET

31

20S-06-21150

PLATE

32

01220-40406

SCREW

33

01601-20410

WASHER,SPRING

34

20S-06-21180

CLIP

35

203-06-41570

SWITCH

36

01602-20825

WASHER,SPRING

37

20S-06-21610

WIRE ASS'Y

38

20S-06-21310

WIRE ASS'Y

39

20S-06-21380

WIRE

40

08034-00414

BAND

41

01010-50820

BOLT
