Запчасти Komatsu PC20-5 ПОВОРОТН. БЛОК И СТРЕЛА РАБОЧЕЕ ОБОРУДОВАНИЕ

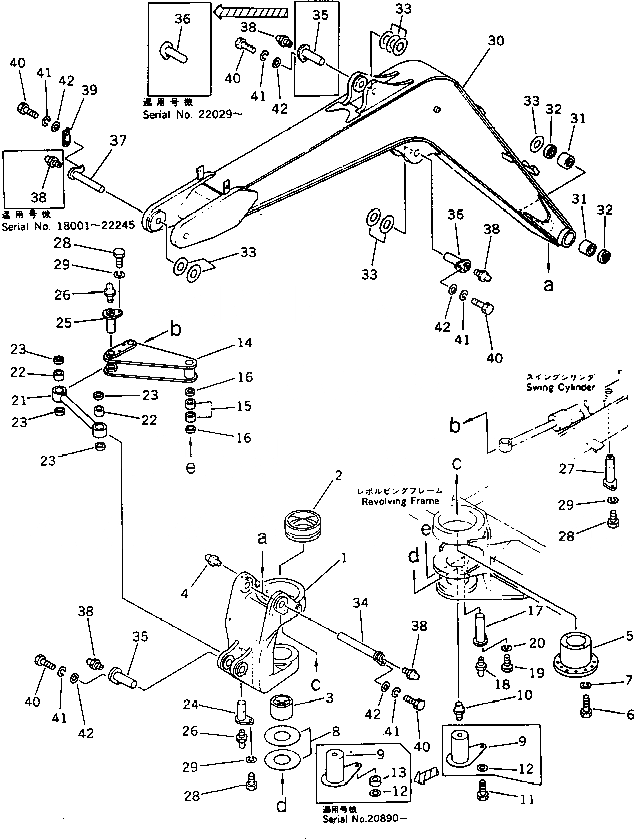

Схема запчастей Komatsu PC20-5 - ПОВОРОТН. БЛОК И СТРЕЛА РАБОЧЕЕ ОБОРУДОВАНИЕ

Артикул

Название

Примечание

Количество

|1

20R-70-00130

SWING BRACKET ASS'Y

1

BRACKET

2

20S-70-21420

BUSHING

3

20S-70-21430

BUSHING

4

07020-00000

FITTING,GREASE

5

20S-70-21440

SHAFT

6

01010-51235

BOLT

7

01602-21236

WASHER,SPRING

8

20S-70-21460

SPACER¤ 0.5MM

|8

20S-70-21470

SPACER¤ 1.0MM

9

20S-70-21452

PIN

|9

20S-70-21450

PIN

10

07020-00675

FITTING,GREASE

11

01010-51635

BOLT

12

20S-70-21480

WASHER

|12

01643-31645

WASHER

13

20S-70-21490

SPACER

|14

20S-70-00150

LINK ASS'Y

14

LINK

15

07143-10304

BUSHING

16

07145-00035

SEAL,DUST

17

20S-70-21330

PIN

18

07020-00000

FITTING,GREASE

19

01010-51225

BOLT

20

01602-21236

WASHER,SPRING

|21

20S-70-00170

ROD ASS'Y

21

ROD

22

07143-10304

BUSHING

23

07145-00035

SEAL

24

20S-70-21350

PIN

25

20S-70-21360

PIN

26

07020-00000

FITTING,GREASE

27

20S-70-21340

PIN

28

01010-51225

BOLT

29

01602-21236

WASHER,SPRING

|30

20R-70-00121

BOOM ASS'Y

|30

20R-70-00120

BOOM ASS'Y

30

BOOM

|30

BOOM

31

20S-70-11220

BUSHING

32

07145-00040

SEAL,DUST

33

20R-70-11260

SPACER¤ 1.0MM

34

20R-70-11163

PIN

35

20R-70-11171

PIN

|35

20R-70-11171

PIN

36

20S-70-21150

PIN

|36

20S-70-11181

PIN

37

20S-70-21221

PIN

|37

20S-70-21220

PIN

38

07020-00000

FITTING,GREASE

|38

07020-00000

FITTING,GREASE

39

20R-70-11250

PLATE

40

01010-51230

BOLT

41

01602-21236

WASHER,SPRING

42

01643-31232

WASHER

Выбрано товаров: 55
