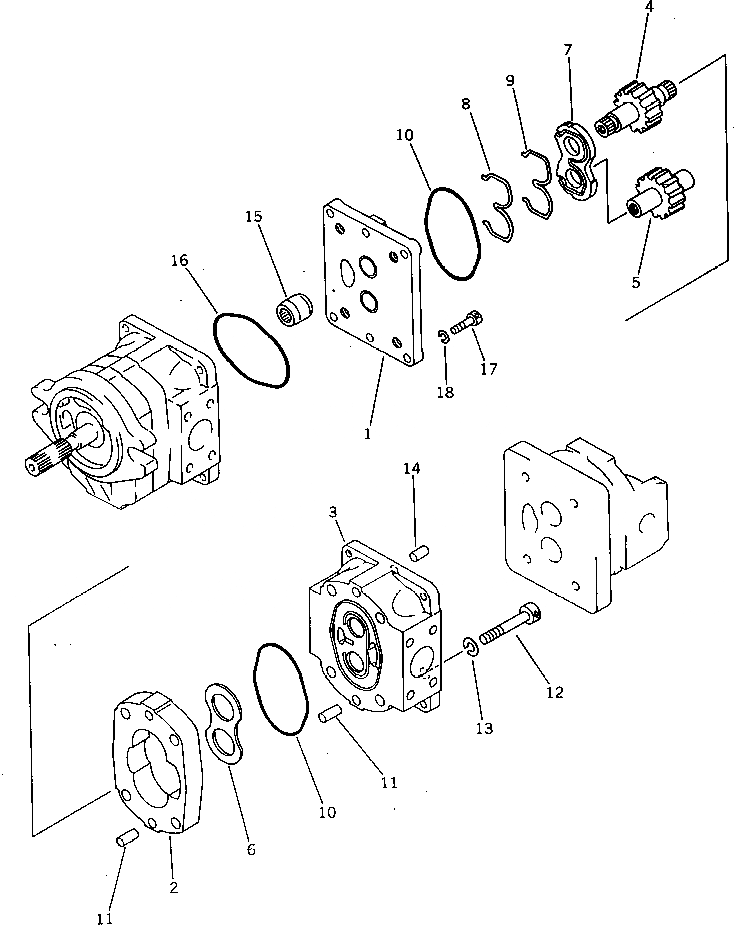

Запчасти Komatsu PC20-5 ГИДР. НАСОС. (/)(№8-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

705-86-14000

PUMP ASS'Y

|1

705-62-22330

PUMP ASS'Y

1

BRACKET ASS'Y

2

CASE,GEAR

3

CARRIER ASS'Y

4

GEAR,DRIVE

5

GEAR,DRIVEN

6

PLATE,SIDE

7

PLATE,SIDE

8

RING,BACK-UP

9

SEAL,RING

10

O-RING

11

PIN,DOWEL

12

BOLT

13

WASHER,SPRING

14

705-67-01230

PIN,DOWEL

15

705-67-01330

COUPLING ASS'Y

16

705-17-01381

O-RING

17

01252-30830

BOLT

18

01602-20825

WASHER,SPRING
