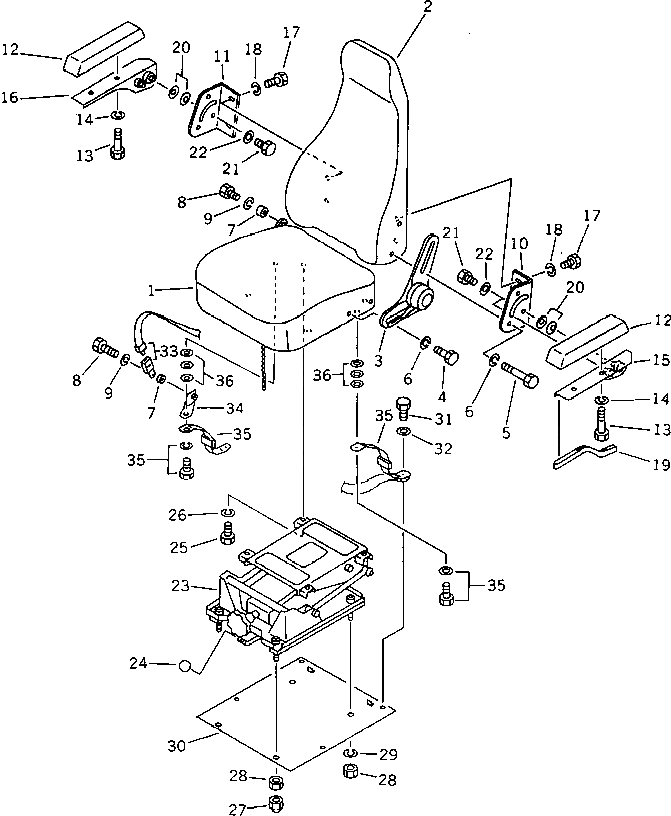

Запчасти Komatsu PC20-5 СИДЕНЬЕ ОПЕРАТОРА (ДЛЯ КАБИНА ROPS¤ СИСТЕМА ROPS) ОСНОВНАЯ РАМА И КАБИНА

|1

20T-57-00060

SEAT ASS'Y

1

20B-57-21241

CUSHION

2

20T-57-23110

CUSHION,BACK

3

155-57-12181

LEVER

4

01010-51025

BOLT

5

01010-51050

BOLT

6

01602-21030

WASHER,SPRING

7

203-57-21330

SPACER

8

01010-51020

BOLT

9

01602-21030

WASHER,SPRING

10

20T-57-23130

BRACKET

11

20T-57-23140

BRACKET

12

20T-57-23120

CUSHION

13

01010-50835

BOLT

14

01602-20825

WASHER,SPRING

15

20T-57-23150

SUPPORT

16

20T-57-23160

SUPPORT

17

01010-51020

BOLT

18

01602-21030

WASHER,SPRING

19

205-57-72590

SEAL

20

175-54-27350

SPRING

21

01010-51220

BOLT

22

01643-31032

WASHER

23

20S-57-12120

SUSPENSION ASS'Y

24

20D-43-13570

KNOB

25

01010-51020

BOLT

26

01602-21030

WASHER,SPRING

27

20T-54-26130

NUT

28

01580-11210

NUT

29

01602-21236

WASHER,SPRING

30

20T-956-1310

COVER

31

01010-51020

BOLT

32

01643-31032

WASHER

33

20N-57-49125

BELT,SEAT

34

20S-57-25150

BRACKET

35

09409-20000

BELT¤ TETHER,TETHER

|35

09409-00001

BOLT

|35

09409-00002

WASHER,SPRING

36

01643-31232

WASHER
