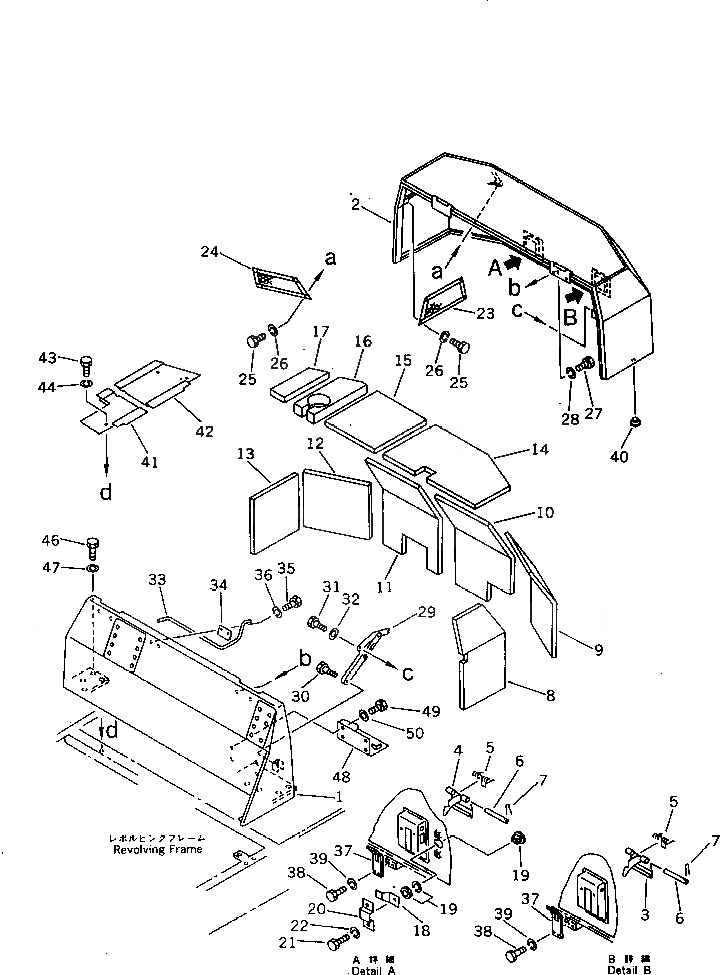

Запчасти Komatsu PC20-5 КАБИНА (ДЛЯ КАБИНА ROPS¤ СИСТЕМА ROPS) ОСНОВНАЯ РАМА И КАБИНА

1

20S-956-1120

COVER

|2

20S-956-1110

HOOD ASS'Y

2

20S-54-26140

HOOD

|2

20R-54-21372

HINGE (WELDED)

3

20S-54-21450

LEVER

4

20S-54-25130

LEVER

5

20T-54-26430

SPRING

6

20S-54-21460

PIN

7

04050-13018

PIN,COTTER

8

20S-54-21210

SHEET

9

20S-54-21220

SHEET

10

20S-54-21430

SHEET

11

20S-54-25120

SHEET

12

20S-54-21250

SHEET

13

20S-54-21260

SHEET

14

20S-54-21270

SHEET

15

20S-54-21280

SHEET

16

20S-54-21290

SHEET

17

20S-54-21350

SHEET

18

20R-54-23240

PLATE

19

20N-54-41830

LOCK ASS'Y

20

20T-54-28130

COVER

21

01010-50812

BOLT

22

01643-30823

WASHER

23

20S-54-21120

COVER

24

20S-54-21130

COVER

25

01010-50816

BOLT

26

01602-20825

WASHER,SPRING

27

01010-51020

BOLT

28

01602-21030

WASHER,SPRING

29

20R-54-21430

STAY

30

20R-54-21440

BOLT

31

20R-54-21450

BOLT

32

07005-01412

GASKET

33

20S-54-21141

BAR

34

20S-54-21160

BRACKET

35

01010-51020

BOLT

36

01602-21030

WASHER,SPRING

37

20R-54-21170

LOCK

38

01010-51025

BOLT

39

01602-21030

WASHER,SPRING

40

203-54-32260

STOPPER

41

20S-54-26170

COVER

42

20S-54-21390

COVER

43

01010-51020

BOLT

44

01602-21030

WASHER,SPRING

45

20S-54-21170

CLIP,(NOT SHOWN)

46

01010-52055

BOLT

47

01643-32060

WASHER

48

20S-54-26160

BRACKET

49

01010-51020

BOLT

50

01643-31032

WASHER
