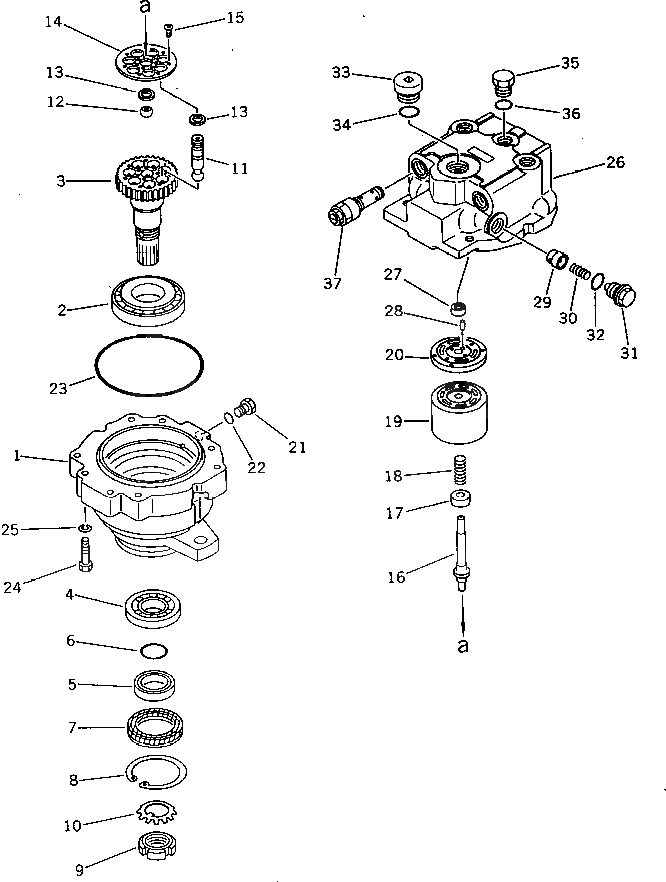

Запчасти Komatsu PC20-5 МОТОР ПОВОРОТА (/) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

|1

706-73-10700

SWING MOTOR ASS'Y

1

706-73-42030

CASE

2

706-74-41880

BEARING

3

706-73-42760

SHAFT

4

706-75-40890

BEARING

5

706-75-40910

RING

6

07000-03040

O-RING

7

706-75-90180

SEAL,OIL

8

04065-08225

RING,SNAP

9

01530-03610

NUT

10

01658-03618

WASHER,LOCK

11

706-73-41163

PISTON ASS'Y

12

706-73-41220

BALL

13

706-73-41251

HOLDER

14

706-73-41263

RETAINER

15

706-73-41217

SCREW

16

706-73-42080

SHAFT

17

706-73-41130

RING

18

706-73-41110

SPRING

19

706-73-41091

BLOCK

20

706-73-42840

PLATE

21

07040-11409

PLUG

22

07002-01423

O-RING

23

706-73-42370

O-RING

24

01010-51055

BOLT

25

01602-21030

WASHER,SPRING

26

706-73-72140

HOUSING

27

706-73-40010

BEARING

28

04020-00616

PIN

29

706-73-72420

VALVE

30

706-73-72440

SPRING

31

706-73-72430

PLUG

32

07002-12434

O-RING

33

07040-13316

PLUG

34

07002-13334

O-RING

35

07040-12012

PLUG

36

07002-12034

O-RING

37

706-73-85101

RELIEF VALVE ASS'Y
