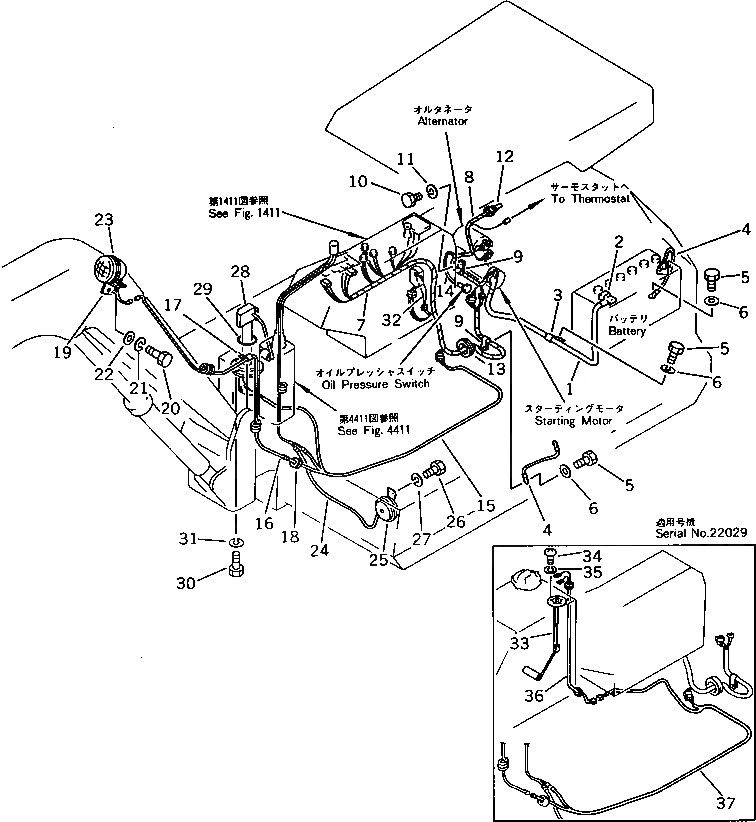

Запчасти Komatsu PC20-5 ЭЛЕКТРИКА КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20S-06-21430

WIRE

2

20S-06-13230

TERMINAL COVER

3

08036-02514

CLIP

4

20R-06-11240

WIRE

5

01010-51016

BOLT

6

01642-21016

WASHER

7

20S-06-21310

WIRE ASS'Y

8

20S-06-21390

WIRE ASS'Y

9

08036-01414

CLIP

10

01010-51016

BOLT

11

01602-21030

WASHER,SPRING

12

198-06-11940

SENSOR,WATER TEMPERATURE

13

08037-05016

GROMMET

|13

08037-05022

GROMMET,(FOR ROPS CAB¤ ROPS CANOPY)

14

20S-06-13210

WIRE

15

20S-06-21340

WIRE ASS'Y

16

20R-06-21370

WIRE

17

08036-10614

CLIP

18

08037-01008

GROMMET

19

201-06-21110

BRACKET

20

01010-51025

BOLT

21

01602-21030

WASHER,SPRING

22

01643-31032

WASHER

23

08125-01200

LAMP ASS'Y

|23

08107-01260

BULB¤ 60W

|23

08125-00006

LENS

24

20S-06-21450

WIRE

25

08160-41200

HORN

26

01010-50816

BOLT

27

01602-20825

WASHER,SPRING

28

20S-06-21250

GAUGE

29

07000-02085

O-RING

30

01010-51016

BOLT

31

01602-21030

WASHER,SPRING

32

20S-06-21380

WIRE

33

20T-06-31110

FLOAT

34

01220-40408

SCREW

35

01601-20410

WASHER,SPRING

36

20T-06-31180

WIRE

37

20T-06-31140

WIRE
