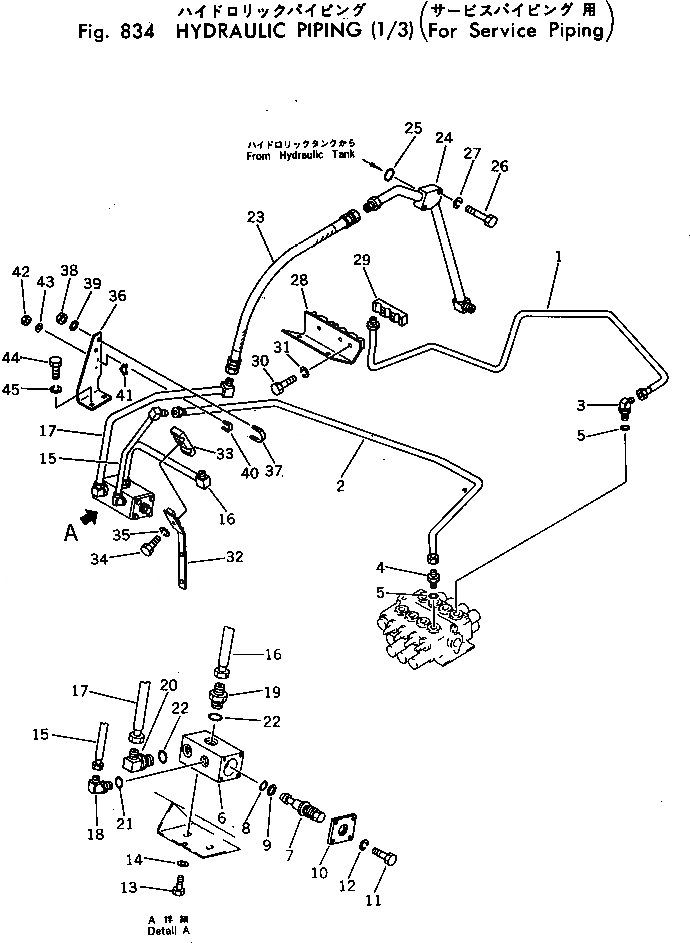

Запчасти Komatsu PC20-3 ГИДРОЛИНИЯ (/) (ДЛЯ SERVICE ТРУБЫ) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20S-973-1331

TUBE

2

20S-973-1342

TUBE

3

07235-20315

ELBOW

4

07230-10315

UNION

5

07002-12034

O-RING

|$5

20T-973-2600

VALVE ASS'Y

6

20T-973-2620

BODY

7

20T-973-2630

SPOOL

8

07000-12018

O-RING

9

07001-02018

RING,BACK-UP

10

20T-973-2640

PLATE

11

01010-50820

BOLT

12

01602-20825

WASHER,SPRING

13

01010-51020

BOLT

14

01643-21032

WASHER

15

20S-973-1350

TUBE

16

20S-973-1420

TUBE

17

20S-973-1450

TUBE

18

07235-10315

ELBOW

19

232-60-14271

NIPPLE

20

22D-62-15220

ELBOW

21

07002-12034

O-RING

22

07002-12434

O-RING

23

07102-20406

HOSE

24

20S-973-1471

TUBE

25

07000-03035

O-RING

26

01010-31060

BOLT

27

01602-01030

WASHER,SPRING

28

20S-973-1371

BRACKET

29

20S-973-1411

CLAMP

30

01010-51025

BOLT

31

01602-21030

WASHER,SPRING

32

20S-973-1431

BRACKET

33

20S-973-1440

CLAMP

34

01010-51040

BOLT

35

01602-21030

WASHER,SPRING

36

20S-973-1391

BRACKET

37

07283-22236

CLIP

38

01599-01011

NUT

39

01643-31032

WASHER

40

07283-21529

CLIP

41

07283-51523

SEAT

42

01598-00809

NUT

43

01643-30823

WASHER

44

01010-51020

BOLT

45

01602-21030

WASHER,SPRING
