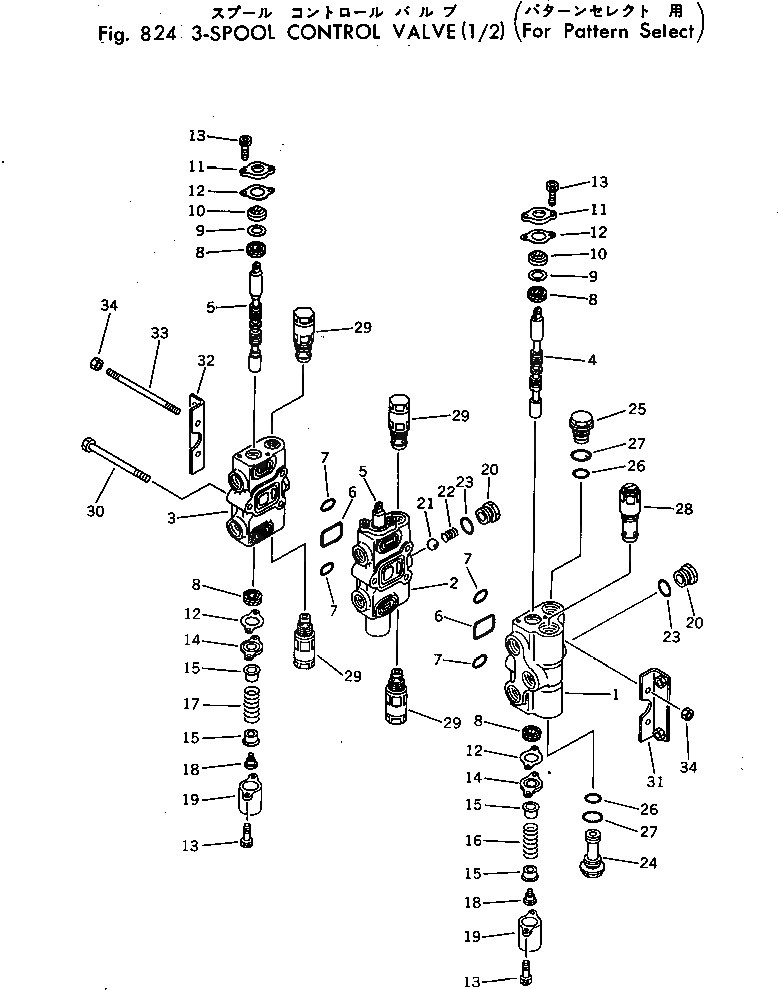

Запчасти Komatsu PC20-3 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН (/) (ДЛЯ PATTERN SELECT) ОПЦИОННЫЕ КОМПОНЕНТЫ

|$0

700-23-49000

VALVE ASS'Y,L.H.

1

BODY

2

BLOCK

3

COVER

4

SPOOL,TRAVEL, L.H.

5

SPOOL,ARM, SWING

6

07000-13040

O-RING

7

700-22-11450

O-RING

8

700-22-11252

U-PACKING

9

700-22-11430

COLLAR

10

700-22-11261

SEAL,DUST

11

700-22-11270

PLATE

12

700-22-11420

GASKET

13

01252-30616

BOLT

14

700-22-11281

PLATE

15

700-22-11290

RETAINER

16

700-22-11311

SPRING

17

700-23-13130

SPRING

18

700-22-11320

PLUG

19

700-22-11331

COVER

20

700-22-11351

PLUG

21

700-22-12340

BALL

22

700-22-12350

SPRING

23

07002-12434

O-RING

24

700-26-11150

PLUG

25

700-22-11360

PLUG

26

07000-12014

O-RING

27

07002-02434

O-RING

28

700-22-51001

VALVE ASS'Y

29

700-20-66001

VALVE ASS'Y

30

700-23-13140

BOLT

31

700-26-11170

ANGLE

32

700-22-11220

ANGLE

33

700-23-13110

STUD

34

01580-10806

NUT
