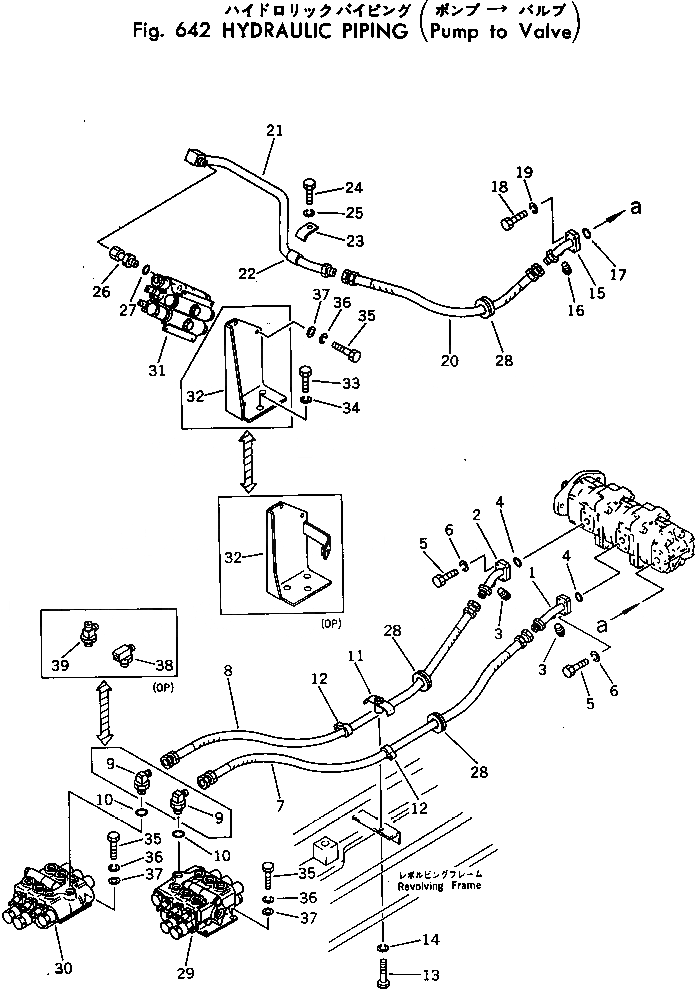

Запчасти Komatsu PC20-3 ГИДРОЛИНИЯ (ИЗ НАСОСА В КЛАПАН) ГИДРАВЛИКА

1

20S-62-11270

TUBE

2

20S-62-11280

TUBE

3

07042-20108

PLUG

4

07000-13025

O-RING

5

01010-50835

BOLT

6

01602-20825

WASHER,SPRING

7

20R-62-21490

HOSE

8

20R-62-21410

HOSE

9

20S-62-11310

ELBOW

10

07002-12434

O-RING

11

20S-62-11320

CLAMP

12

202-98-11360

BUSHING

13

01010-51065

BOLT

14

01602-21030

WASHER,SPRING

15

20S-62-15130

TUBE

16

07042-20108

PLUG

17

07000-13025

O-RING

18

01010-50835

BOLT

19

01602-20825

WASHER,SPRING

20

07108-20404

HOSE

21

20S-967-1310

TUBE

22

20S-62-11910

SHEET

23

20S-62-11890

CLAMP

24

01010-51025

BOLT

25

01602-21030

WASHER,SPRING

26

20S-62-15150

TUBE

27

07002-12434

O-RING

28

08037-03614

GROMMET

29

700-23-36001

VALVE ASS'Y

30

700-23-35002

VALVE ASS'Y

31

700-22-38000

VALVE ASS'Y

31

700-22-44000

VALVE ASS'Y,(FOR TRAVEL HIGH)

32

20S-62-11460

BRACKET

32

20S-967-1420

BRACKET,(FOR TRAVEL HIGH)

33

01010-31225

BOLT

34

01602-01236

WASHER,SPRING

35

01010-50825

BOLT

36

01602-20825

WASHER,SPRING

37

01643-30823

WASHER

38

20S-967-1440

TEE,(FOR TRAVEL HIGH)

39

20S-967-1450

TEE,(FOR TRAVEL HIGH)
