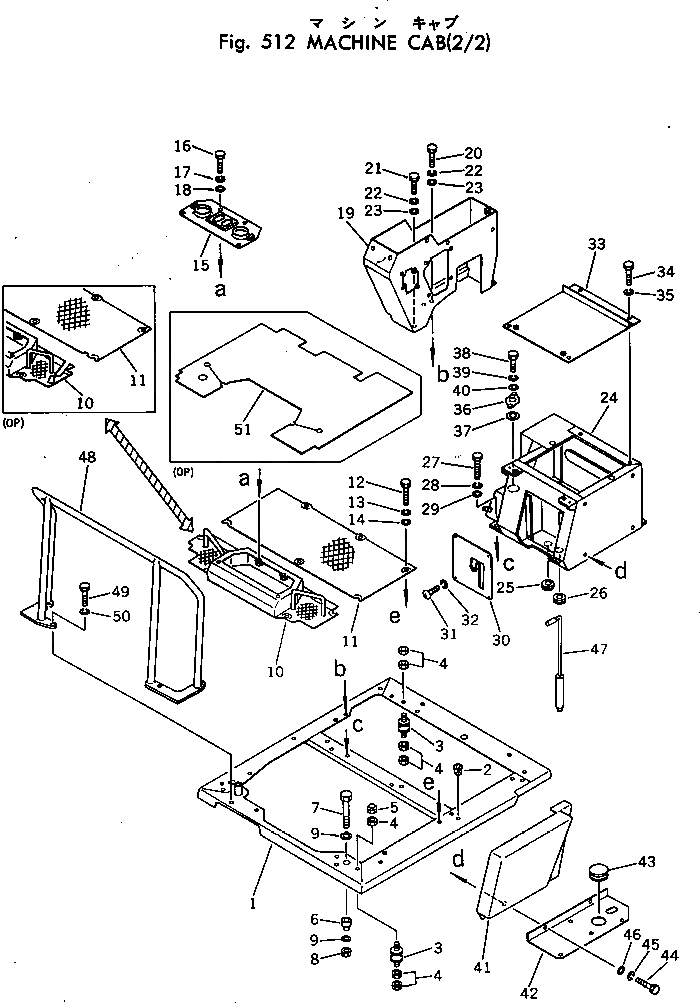

Запчасти Komatsu PC20-3 КАБИНА (/) ОСНОВНАЯ РАМА И КАБИНА

1

20S-54-12110

FRAME

2

07049-01012

PLUG,(FOR CANOPY)

3

20R-01-12111

CUSHION

4

01580-11210

NUT

5

20T-54-26130

NUT

6

20T-54-11510

BOSS

7

01010-31680

BOLT

8

01580-11613

NUT

9

01643-21645

WASHER

10

20S-54-12130

FLOOR

10

20S-967-1620

FLOOR,(FOR TRAVEL HIGH)

11

20S-54-12140

FLOOR

11

20S-967-1630

FLOOR,(FOR TRAVEL HIGH)

12

01010-31025

BOLT

13

01602-01030

WASHER,SPRING

14

01643-31032

WASHER

15

20S-54-12150

COVER

16

01010-31025

BOLT

17

01602-01030

WASHER,SPRING

18

01643-31032

WASHER

19

20S-54-12160

BOX,PANEL

20

01010-31035

BOLT

21

01010-31025

BOLT

22

01602-01030

WASHER,SPRING

23

01643-31032

WASHER

24

20S-54-12171

BOX

25

09415-01610

CAP

26

08037-01610

GROMMET

27

01010-31025

BOLT

28

01602-01030

WASHER,SPRING

29

01643-31032

WASHER

30

20S-54-12320

PLATE

31

01220-40616

SCREW

32

01602-00619

WASHER,SPRING

33

20S-54-12180

COVER

34

01010-31225

BOLT

35

01602-01236

WASHER,SPRING

36

20S-54-12190

PLATE

37

20S-54-12210

SHEET

38

01010-30620

BOLT

39

01602-20619

WASHER,SPRING

40

01643-30623

WASHER,(FOR CANOPY)

41

20S-54-12280

COVER

42

20S-54-12291

COVER

43

09415-05016

CAP

44

01010-31025

BOLT

45

01602-01030

WASHER,SPRING

46

01643-31032

WASHER

47

20S-54-12220

PIN,SWING LOCK

48

20S-54-12410

HANDRAIL,(FOR CANOPY)

49

01010-31025

BOLT,(FOR CANOPY)

50

01602-01030

WASHER,SPRING (FOR CANOPY)

51

20S-54-12330

MAT (OP)
