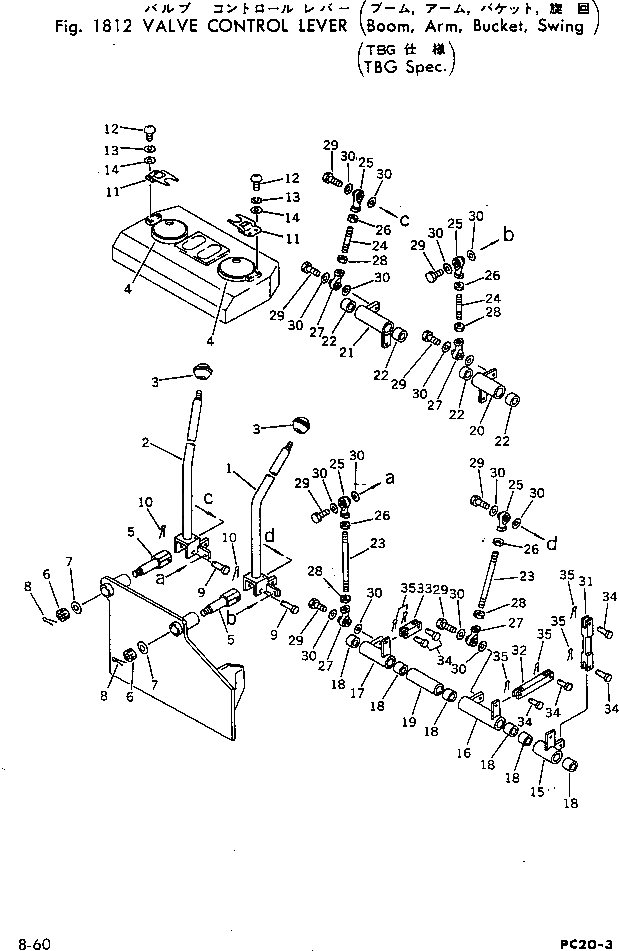

Запчасти Komatsu PC20-3 КЛАПАН РЫЧАГ УПРАВЛ-Я (СТРЕЛА¤ РУКОЯТЬ¤ КОВШ¤ ПОВОРОТН.) (СПЕЦ-Я TBG) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20S-43-11550

LEVER

2

20S-43-11560

LEVER

3

20R-43-11280

KNOB

4

20S-43-11370

COVER

5

20S-43-11380

SHAFT

6

01593-11411

NUT

7

20S-43-11390

WASHER

8

04050-13022

PIN,COTTER

9

20S-43-11410

PIN

10

04050-13020

PIN,COTTER

11

20S-43-11422

LOCK

12

01220-40820

SCREW

13

01602-00825

WASHER,SCREW

14

01643-30823

WASHER

|$14

20S-43-00200

LEVER ASS'Y,L.H.

|$15

20S-43-00340

LEVER ASS'Y,CENTER

|$16

20S-43-00330

LEVER ASS'Y,R.H.

15

LEVER,L.H.

16

LEVER,CENTER

17

LEVER,R.H.

18

09350-02220

BUSHING

19

20S-43-11430

COLLAR

|$22

20S-43-00350

LEVER ASS'Y,L.H.

|$23

20S-43-00320

LEVER ASS'Y,R.H.

20

LEVER,L.H.

21

LEVER,R.H.

22

09350-02220

BUSHING

23

04248-31217

ROD

24

20S-43-11471

ROD

25

04250-51265

END,ROD

26

01582-11210

NUT

27

04250-71265

END,ROD, L.H. THREAD

28

01508-21207

NUT,L.H. THREAD

29

01010-31235

BOLT

30

04254-01232

SPACER

31

20S-43-11540

YOKE

32

20S-43-11340

YOKE

33

20S-43-11350

YOKE

34

04205-10622

PIN

35

04050-11610

PIN,COTTER
