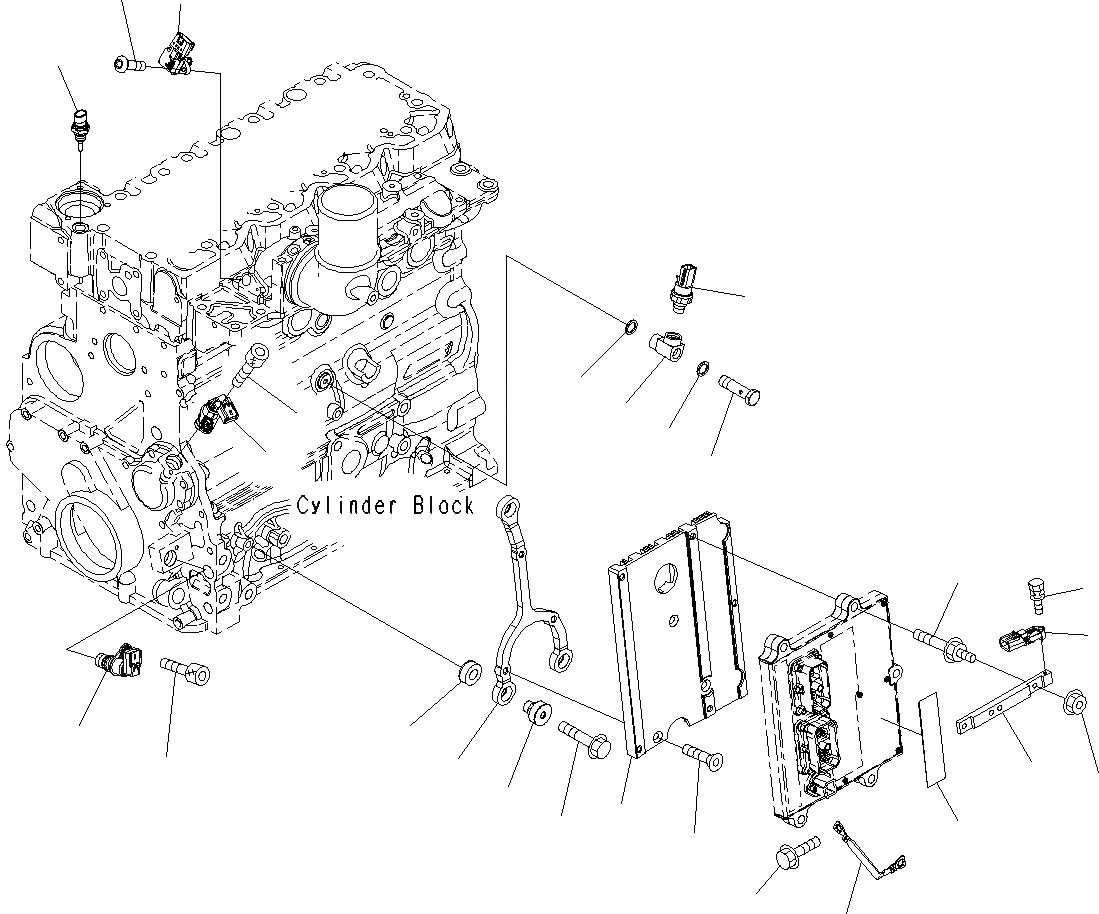

Запчасти Komatsu PC195LC-8 ТОПЛИВН. ВПРЫСК КОНТРОЛЛЕР КОМПОНЕНТЫ A

1

6754-81-9200

SENSOR ASS'Y, POSITION

|$2

6261-81-2920

O-RING

2

6216-84-9220

BOLT

3

6754-81-9120

BRACKET

4

6735-61-2120

BOLT

5

6754-81-9110

ISOLATOR

6

6754-81-9130

ISOLATOR

7

6754-81-9140

SUPPORT

8

6754-81-9150

BOLT

9

6754-81-9170

WIRE

10

6216-74-6180

BOLT

11

6261-81-1900

SENSOR, PRESSURE

12

6734-71-5520

BOLT

13

6744-81-4010

SWITCH, PRESSURE

|$15

6219-81-1990

O-RING

14

6261-81-6901

SENSOR ASS'Y

|$17

6216-84-9740

SEAL

15

6216-84-2130

PLATE, NAME

16

6754-81-2701

SENSORE, TEMPERATURE

|$20

6754-81-2710

O-RING

17

01584-00605

NUT

18

6754-81-9180

SCREW

19

6751-81-9110

BRACKET

20

6754-81-9160

BOLT

21

6751-81-2110

ADAPTER

22

6751-81-9121

SCREW

23

6751-81-9130

SEAL, WASHER
