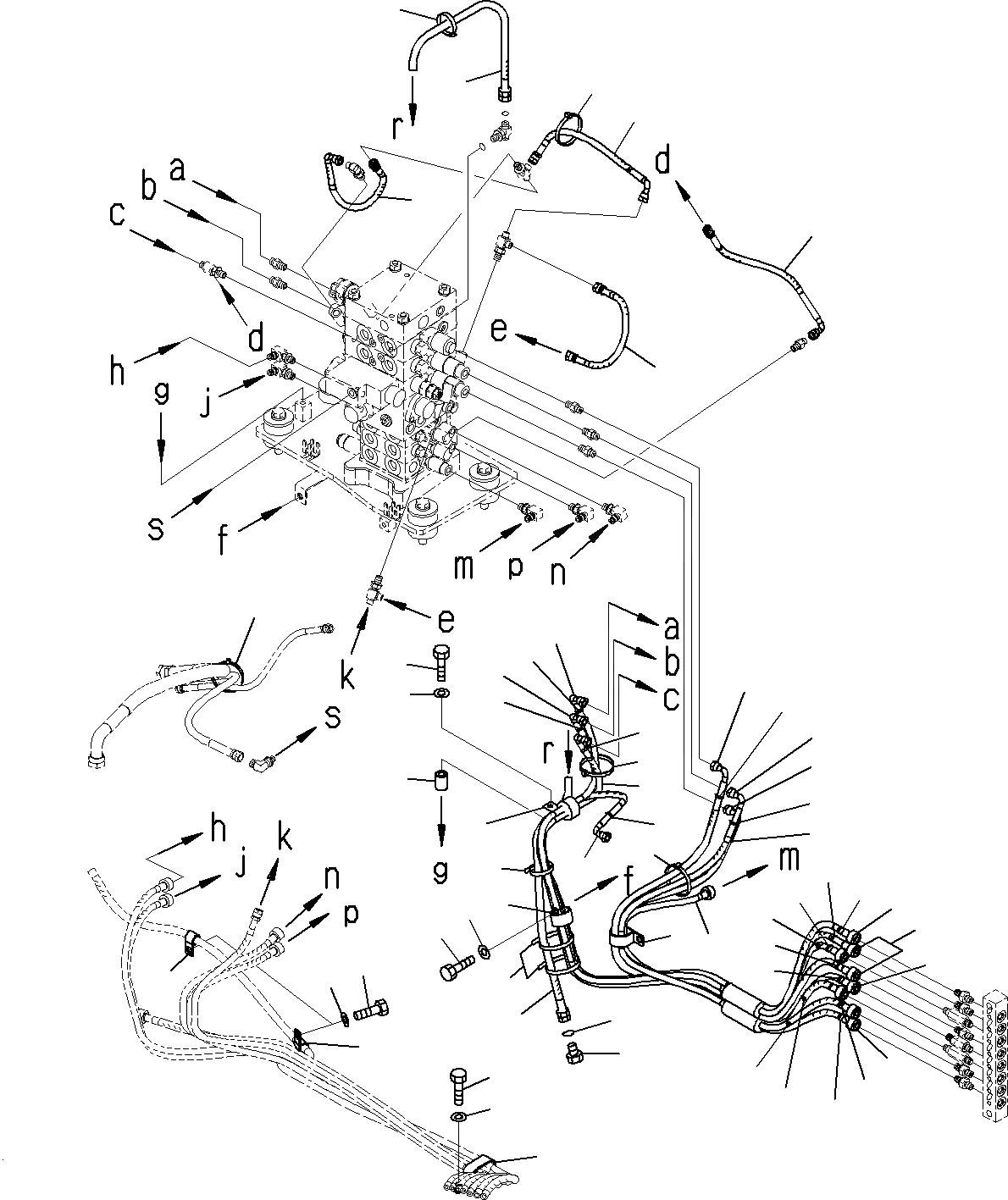

Запчасти Komatsu PC195LC-8 ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) КЛАПАН КОНТУР H

1

04434-52712

CLIP

2

04434-53412

CLIP

3

01010-81225

BOLT

4

01643-31232

WASHER

5

20Y-03-11220

COLLAR

6

04434-53412

CLIP

7

01010-81260

BOLT

8

01643-31232

WASHER

9

21K-62-73540

HOSE

10

21K-62-73440

HOSE

11

02761-00216

HOSE

12

20Y-62-22790

BAND (RED)

13

20Y-62-22810

BAND (YELLOW)

14

20Y-62-22840

BAND (BLACK)

15

20Y-62-22850

BAND (GREEN)

16

21K-62-73530

HOSE

17

21K-62-73450

HOSE

18

02761-00212

HOSE

19

02761-00213

HOSE

20

20Y-62-22820

BAND (BLUE)

21

20Y-62-22830

BAND (WHITE)

22

20Y-62-22860

BAND (BROWN)

23

08034-20834

BAND

24

22U-62-26861

HOSE

25

22U-62-26861

HOSE

26

08034-20834

BAND

27

21K-62-75580

HOSE

28

02760-00203

HOSE

29

195-911-4350

CLIP

30

01010-81225

BOLT

31

01643-31232

WASHER

32

04434-51612

CLIP

33

01010-81225

BOLT

34

01643-31232

WASHER

35

02760-00210

HOSE

36

07376-70210

PLUG

37

02896-11008

O-RING

38

08034-20834

BAND

39

08034-20834

BAND
