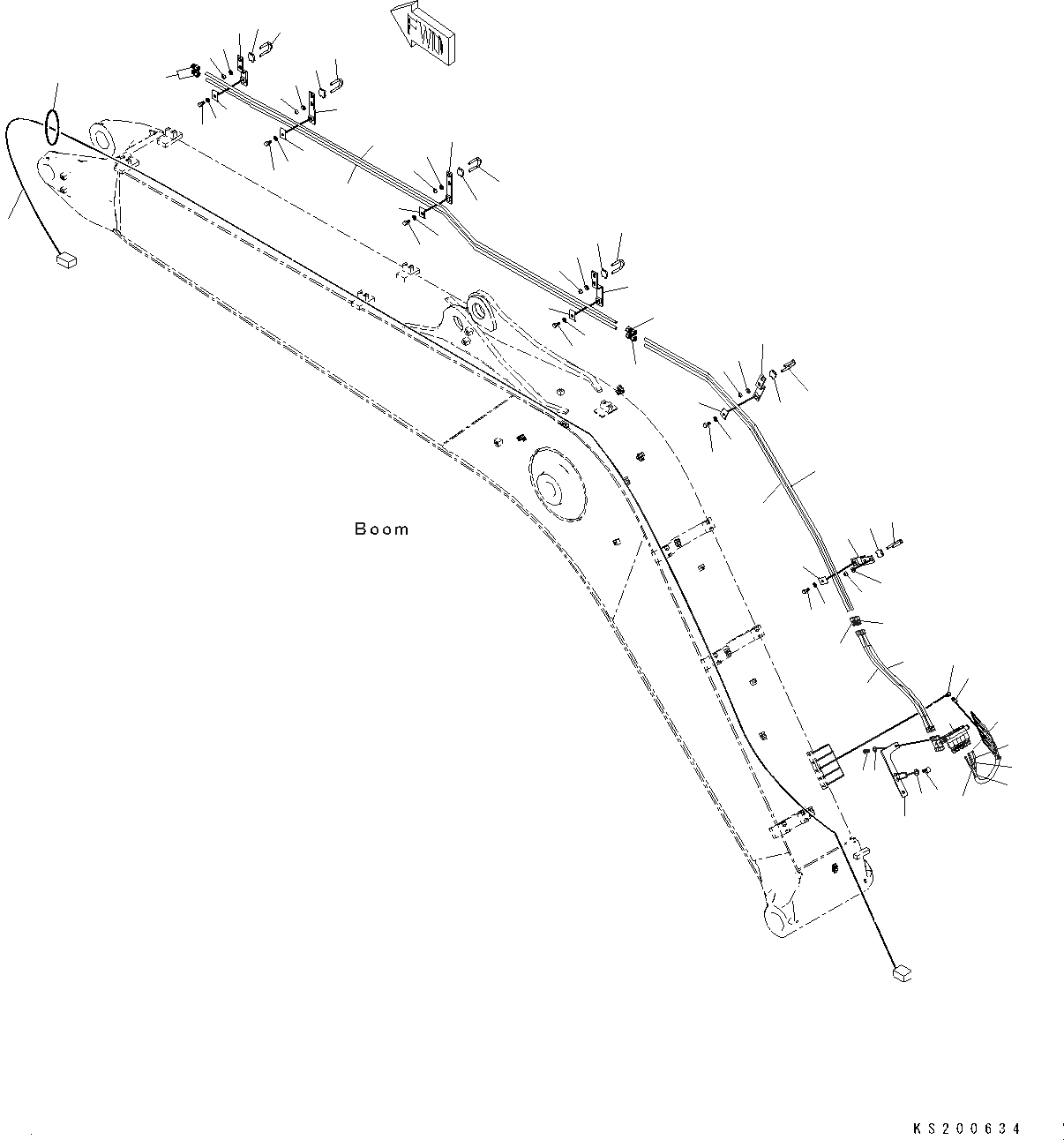

Запчасти Komatsu PC190NLC-8 СТРЕЛА, АВТОМАТИЧ. СМАЗ. ЧАСТИ СТРЕЛА, АВТОМАТИЧ. СМАЗ. ЧАСТИ

1

01010-81020

Bolt

2

01643-31032

Washer

3

01010-81025

Bolt

4

01643-31032

Washer

5

01010-81025

Bolt

6

01643-31032

Washer

7

01010-81025

Bolt

8

01643-31032

Washer

9

01010-81030

Bolt

10

01643-31032

Washer

11

01597-01009

Nut

12

01597-01009

Nut

13

01597-01009

Nut

14

01643-31032

Washer

15

01643-31032

Washer

16

01643-31032

Washer

17

07283-33450

Clip, Pipe

18

07283-33450

Clip, Pipe

19

07283-33450

Clip, Pipe

20

07283-53444

Seat, Pipe Clip

21

07283-53444

Seat, Pipe Clip

22

07283-53444

Seat, Pipe Clip

23

20Y-62-K7520

Union

24

20Y-62-K7520

Union

25

20Y-62-K7520

Union

26

20Y-62-K7530

Fitting

27

20Y-62-K7540

Fitting

28

20Y-62-K8582

Clamp

28

20Y-62-K8581

Clamp

29

20Y-62-K8582

Clamp

29

20Y-62-K8581

Clamp

30

20Y-62-K8582

Clamp

30

20Y-62-K8581

Clamp

|31

21K-62-K3311

Block Assy

31

21K-62-K3320

Block

32

21K-62-K3510

Hose

|32

203-62-57950

Mark 5

33

21K-62-K3520

Hose

|33

21K-62-K4140

Mark 9

34

21K-62-K3530

Hose

|34

203-62-57930

Mark 3

35

21K-62-K3540

Hose

|35

203-62-57980

Mark 8

36

21K-62-K3550

Hose

|36

203-62-57940

Mark 4

37

21K-62-K3330

Hose

38

21K-62-K3342

Bracket

|38

21K-62-K3341

Bracket

39

21K-62-K3350

Tube

40

21K-62-K3360

Tube

41

21K-62-K3370

Tube

42

21K-62-K3391

Bracket

42

21K-62-K3390

Bracket

43

21K-62-K3411

Bracket

43

21K-62-K3410

Bracket

44

21K-62-K3421

Bracket

44

21K-62-K3420

Bracket

45

20Y-06-K1031

Harness

46

08034-20414

Band
