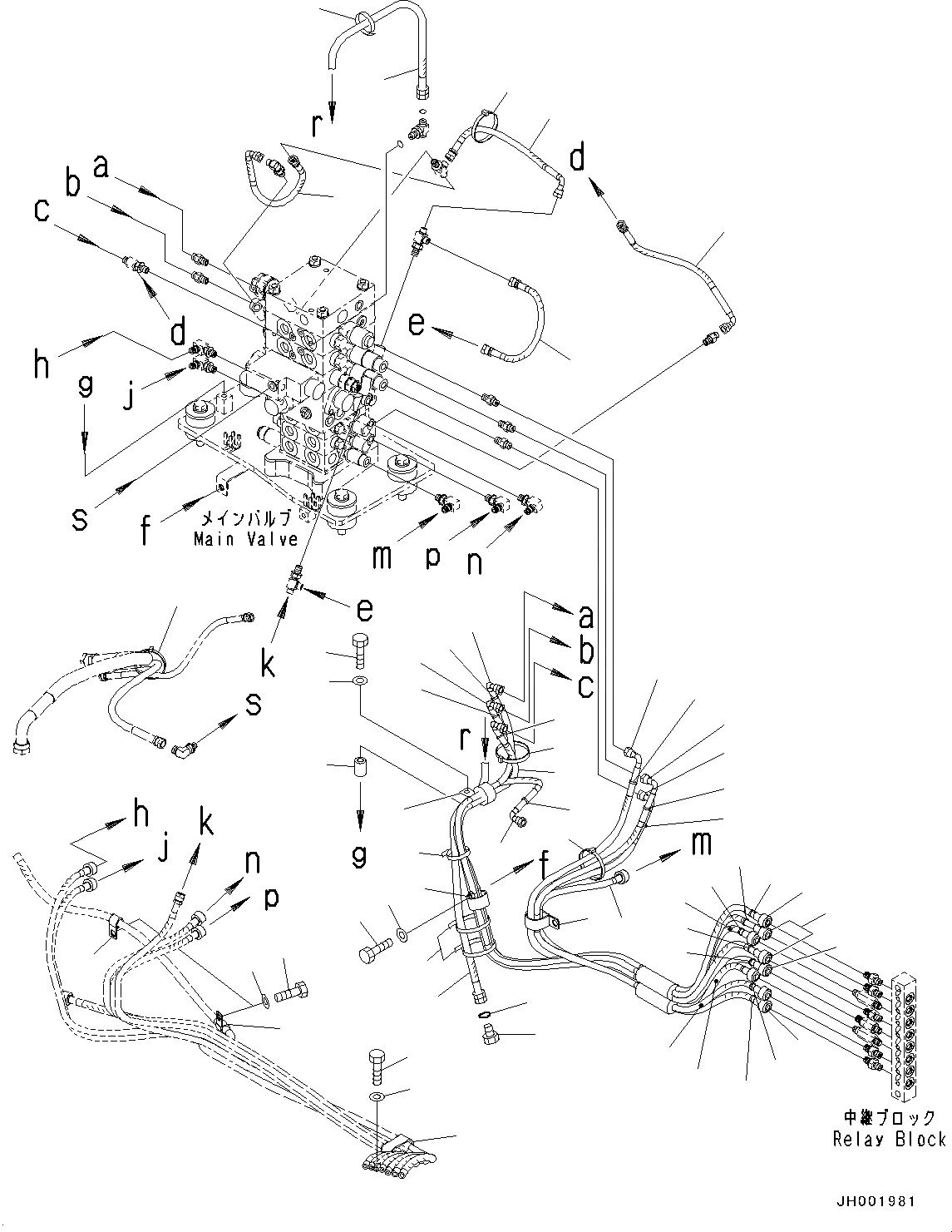

Запчасти Komatsu PC190LC-8 ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) КЛАПАН КОНТУР ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) КЛАПАН КОНТУР

1

04434-52712

Clip

2

04434-53412

Clip

3

01010-81225

Bolt

4

01643-31232

Washer

5

20Y-03-11220

Collar

6

04434-53412

Clip

7

01010-81260

Bolt

8

01643-31232

Washer

9

21K-62-71961

Hose, L=1750mm

10

21K-62-71970

Hose, L=1450mm

11

21K-62-72740

Hose, L=1600mm

12

20Y-62-22790

Band, Red

13

20Y-62-22810

Band, Yellow

14

20Y-62-22840

Band, Black

15

20Y-62-22850

Band, Green

16

21K-62-71911

Hose, L=1250mm

17

21K-62-71931

Hose, L=1000mm

18

21K-62-71940

Hose, L=1200mm

19

21K-62-72190

Hose, L=1300mm

20

20Y-62-22820

Band, Blue

21

20Y-62-22830

Band, White

22

20Y-62-22860

Band, Brown

23

08034-20834

Band

24

22U-62-26861

Hose, L=450mm

25

22U-62-26861

Hose, L=450mm

26

08034-20834

Band

27

21K-62-75580

Hose, L=400mm

28

02760-00203

Hose

29

195-911-4350

Clip

30

01010-81225

Bolt

31

01643-31232

Washer

32

04434-51612

Clip

33

01010-81225

Bolt

34

01643-31232

Washer

35

02760-00210

Hose, Face Seal Type, L=1000mm

36

07376-70210

Plug

37

02896-11008

O-Ring

38

08034-20834

Band

39

08034-20834

Band
