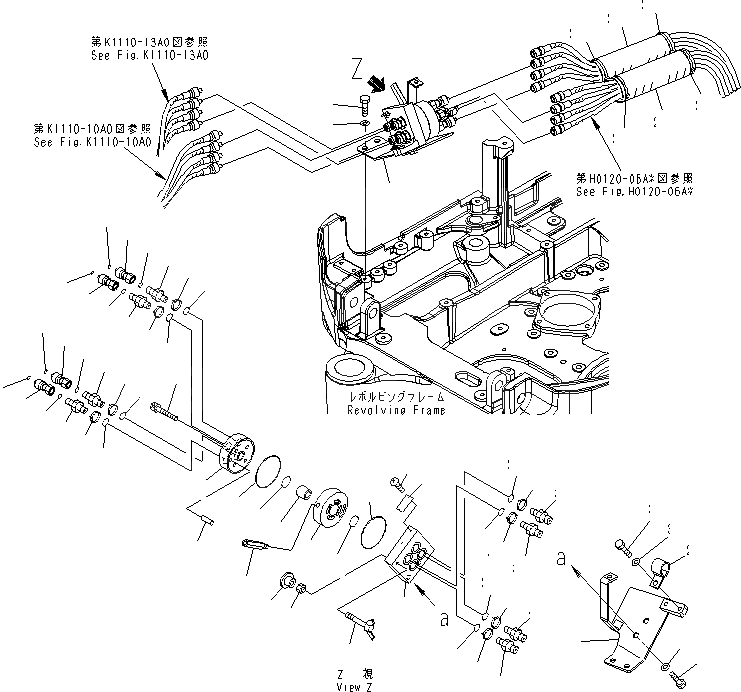

Запчасти Komatsu PC18MR-2 ISO-ЭКСКАВАТ. PATTERN УПРАВЛ-Е (КРОМЕ ЯПОН.)(№8-) ГИДРАВЛИКА

|$1

22L-62-24851

VALVE ASS'Y

1

NY09000-1080B

PLATE,NAME

2

NY16076-1030A

PLATE

3

NY16076-10400

COLLAR

4

NY16229-10100

PLATE

5

NY16229-10200

PLATE

6

NY16229-10300

LEVER

7

NY16229-10400

COLLAR

8

NY81900-00079

BOLT

9

NY81900-00081

BOLT,WING

10

NY83110-30080

NUT

11

NY84110-00248

SCREW

12

NY84230-51335

PIN

13

NY86786-01019

O-RING

14

NY86900-60062

O-RING

15

01010-81020

BOLT

16

01643-31032

WASHER

17

22J-62-28612

BRACKET

18

01010-81025

BOLT

19

01643-31032

WASHER

20

22L-62-24840

NIPPLE

21

07000-12014

O-RING

22

421-62-31110

UNION

23

22M-62-15590

JOINT

24

20U-62-22190

O-RING

25

07000-12014

O-RING

26

02896-11008

O-RING

27

20P-62-72380

SHEET

28

08034-20823

BAND

29

04434-52711

CLIP

30

01010-81020

BOLT

31

01643-31032

WASHER

32

21U-62-34710

BAND, YELLOW

33

21U-62-34720

BAND, BLACK

34

21U-62-34730

BAND, GREEN

35

21U-62-34740

BAND, ORANGE
