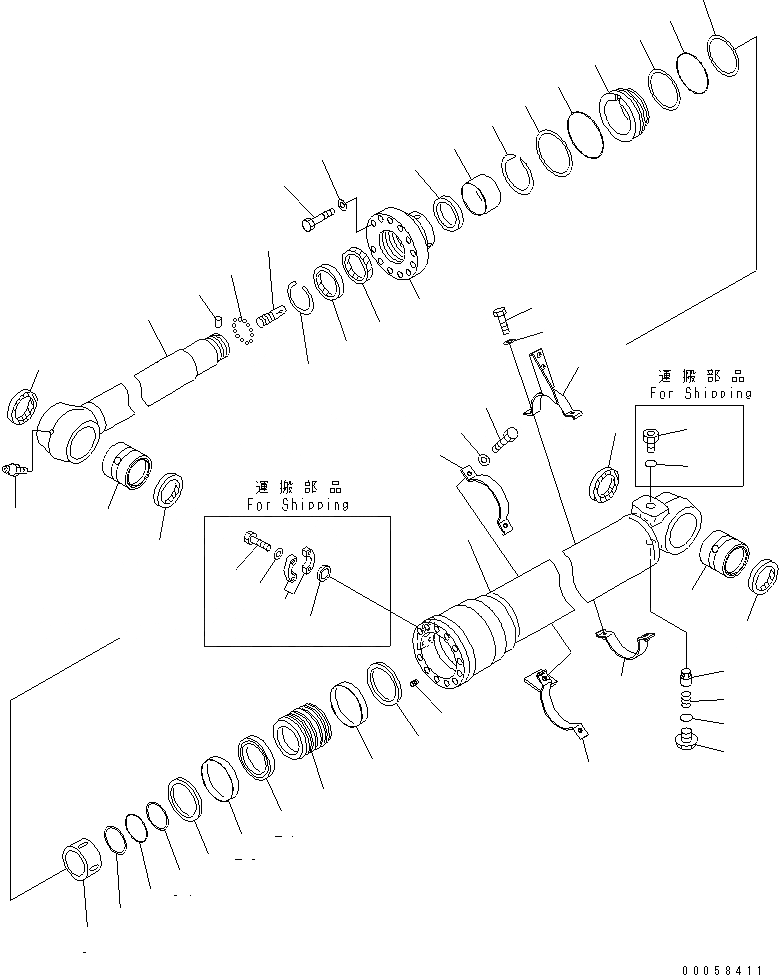

Запчасти Komatsu PC180NLC-7-E0 ЦИЛИНДР РУКОЯТИ(С КЛАПАН ПЕРЕГРУЗКИ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XN630

CYLINDER GROUP,(FINAL COATING)

|$54

====================

|1

707-01-0L120

CYLINDER ASS'Y

1

707-13-12650

CYLINDER

2

707-58-85310

ROD,PISTON

3

707-76-80431

BUSHING

4

07145-00080

SEAL,DUST (KIT)

5

707-76-80431

BUSHING

6

07145-00080

SEAL,DUST (KIT)

7

07020-00000

FITTING,GREASE

8

707-71-70820

PLUNGER

9

707-35-91220

RING,BACK-UP (KIT)

10

07000-15110

O-RING (KIT)

11

707-71-32590

COLLAR

12

707-71-80230

PLUNGER

13

04260-00635

BALL

14

707-71-91270

CAP

15

707-27-12650

HEAD,CYLINDER

16

707-56-85510

SEAL,DUST (KIT)

17

07179-13099

RING,SNAP

18

707-51-85030

PACKING,ROD (KIT)

19

707-51-85650

RING,BUFFER (KIT)

20

707-52-90610

BUSHING

21

707-35-91220

RING,BACK-UP (KIT)

22

07000-15110

O-RING (KIT)

23

01010-81670

BOLT

24

01643-51645

WASHER

25

707-75-85110

RING,SNAP

26

707-36-12851

PISTON

27

707-44-12150

RING,PISTON (KIT)

28

707-39-12140

RING,WEAR (KIT)

29

707-44-12911

RING

30

07000-15075

O-RING (KIT)

31

707-35-90930

RING,BACK-UP (KIT)

32

01310-01216

SCREW

33

707-83-13010

VALVE

34

07750-01628

SPRING

35

707-87-14070

PLUG

36

07002-12034

O-RING (KIT)

37

707-88-22970

BRACKET

38

707-88-21630

BAND

39

707-88-22930

BRACKET

40

707-88-21620

BAND

41

07372-21035

BOLT

42

01643-51032

WASHER

43

07371-30640

FLANGE

44

707-88-33030

HEAD

45

07040-12412

PLUG

46

07002-12434

O-RING

47

07372-21035

BOLT

48

01643-51032

WASHER

|$55

====================

|K

707-99-46420

SERVICE KIT
