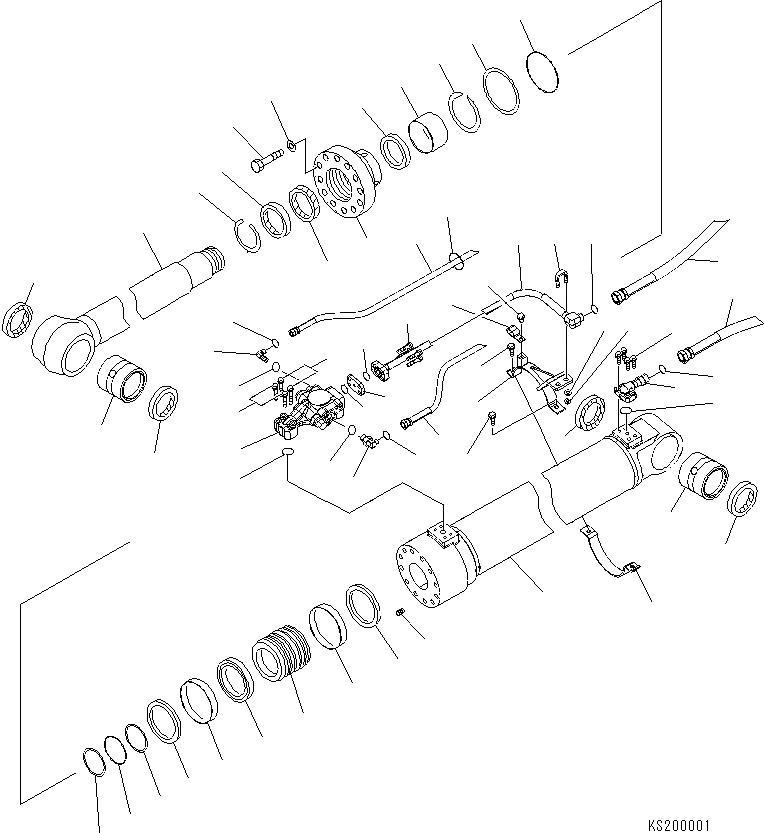

Запчасти Komatsu PC180NLC-7-E0 СТРЕЛА ADJUST ЦИЛИНДР (ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-0M220

CYLINDER GROUP,(FINAL COATING)

|$2

====================

|1

707-01-0AE20

CYLINDER ASS'Y

1

707-13-15480

CYLINDER

2

707-58-90F80

ROD,PISTON

3

707-76-90540

BUSHING

4

07145-00090

SEAL,DUST (KIT)

5

707-76-90490

BUSHING

6

07145-00090

SEAL,DUST (KIT)

7

707-27-15580

HEAD,CYLINDER

8

195-63-94170

SEAL,DUST (KIT)

9

07179-13104

RING,SNAP

10

707-51-90030

PACKING,ROD (KIT)

11

707-51-90650

RING,BUFFER (KIT)

12

707-52-90680

BUSHING

13

707-35-91660

RING,BACK-UP (KIT)

14

07000-15140

O-RING (KIT)

15

01010-82085

BOLT

16

707-88-75310

WASHER

17

707-75-90110

RING,SNAP

18

707-36-90560

PISTON

19

707-44-15150

RING,PISTON (KIT)

20

707-39-15110

RING,WEAR (KIT)

21

707-44-15911

RING

22

07000-15090

O-RING (KIT)

23

07001-05090

RING,BACK-UP (KIT)

24

01310-01216

SCREW

25

702-21-08330

VALVE ASS'Y

26

07375-21050

BOLT

27

07375-21060

BOLT

28

07000-13030

O-RING

29

21K-62-K1990

ORIFICE

30

07000-13030

O-RING

31

21K-62-K1711

TUBE

32

07000-13030

O-RING

33

07375-21045

BOLT

34

20J-62-11630

ELBOW

|34

02782-10315

ELBOW

35

07002-12034

O-RING

36

02896-11009

O-RING

37

02782-10210

ELBOW

38

07002-11423

O-RING

39

02896-11008

O-RING

40

21K-62-K1730

BAND

41

21K-62-K1721

BRACKET

42

01024-81035

BOLT

43

02783-32236

CLIP

44

01643-31032

WASHER

45

01597-01009

NUT

|46

21K-62-K1741

HOSE ASS'Y

46

02760-00229

HOSE

47

02760-00325

HOSE

48

04435-51812

CLIP

49

01024-81020

BOLT

50

08034-20834

BAND

51

21K-62-K1950

TUBE

52

07375-21035

BOLT

53

07000-13030

O-RING

54

02896-61015

O-RING

55

02896-61015

O-RING

56

21K-62-K2111

HOSE

57

21K-62-K2121

HOSE

|K

707-99-56630

SERVICE KIT
