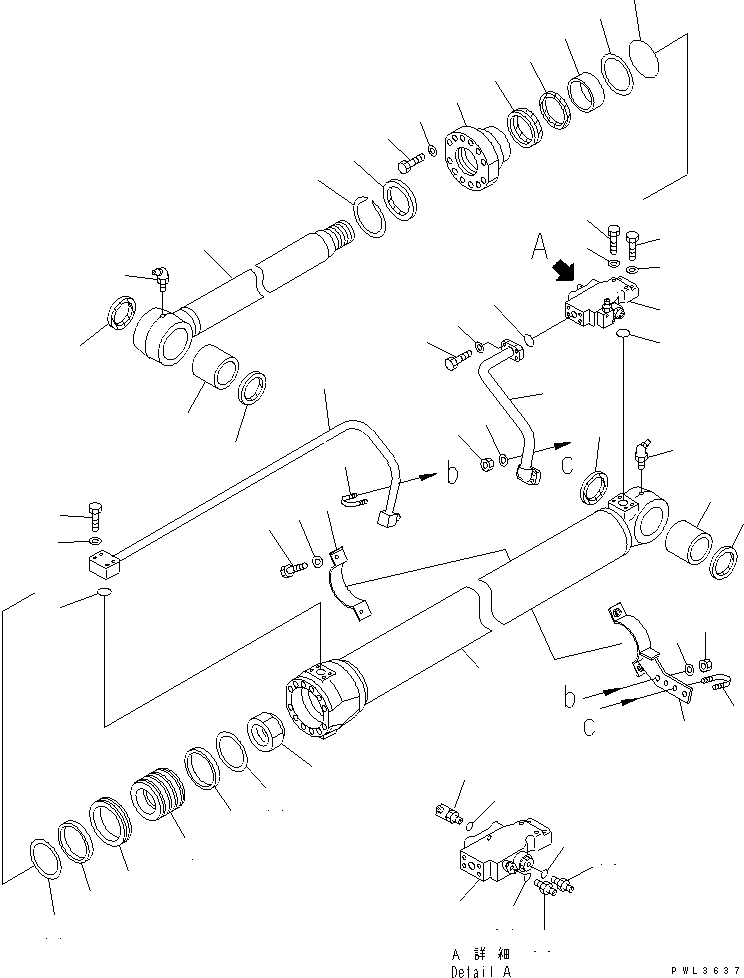

Запчасти Komatsu PC180NLC-6K ЦИЛИНДР СТРЕЛЫ(ПРАВ.) (С КЛАПАН БЕЗОПАСНОСТИ)(№K-K999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G1

21P-63-K2201

CYLINDER ASS'Y,BOOM

|1

21P-63-K1611

CYLINDER ASS'Y

1

21K-63-54140

CYLINDER

2

21K-63-54120

ROD,PISTON

3

707-27-11620

HEAD

4

707-36-11410

PISTON

5

07165-14850

NUT

6

01010-81670

BOLT

7

01643-51645

WASHER

8

144-63-94170

SEAL,DUST

9

07179-13089

RING,SNAP

10

707-51-75030

PACKING,ROD

11

707-51-75630

RING,BUFFER

12

07000-15105

O-RING

13

07001-05105

RING,BACK-UP

14

707-52-90500

BUSHING

15

707-44-11180

RING,PISTON

16

707-39-11110

RING,WEAR

17

707-44-11911

RING

18

707-76-70330

BUSHING

19

07145-00070

SEAL,DUST

20

707-76-70230

BUSHING

21

07020-00675

FITTING,GREASE

22

707-88-97750

BAND

23

21P-63-K2131

BAND

24

01010-51025

BOLT

25

01643-31032

WASHER

26

21P-62-K2571

TUBE

27

07000-13025

O-RING

28

01010-50850

BOLT

29

01643-50823

WASHER

30

21P-62-K2551

TUBE

31

07000-13030

O-RING

32

07372-21035

BOLT

33

01643-51032

WASHER

34

07283-22236

CLIP

35

01599-01011

NUT

36

01643-31032

WASHER

37

07283-22738

CLIP

38

01599-01011

NUT

39

01643-31032

WASHER

40

702-21-08021

PILOT VALVE ASS'Y,(SEE FIG.Y1665-01A0)

41

07000-13025

O-RING

42

07372-21055

BOLT

43

01643-51032

WASHER

44

07372-21060

BOLT

45

01643-51032

WASHER

46

20E-62-K5181

NIPPLE

47

07002-01423

O-RING

48

07235-10315

ELBOW

49

07002-02034

O-RING

50

07230-20210

UNION

51

07002-01423

O-RING
