Артикул
Название
Примечание
Количество
|1
20Y-54-K1100

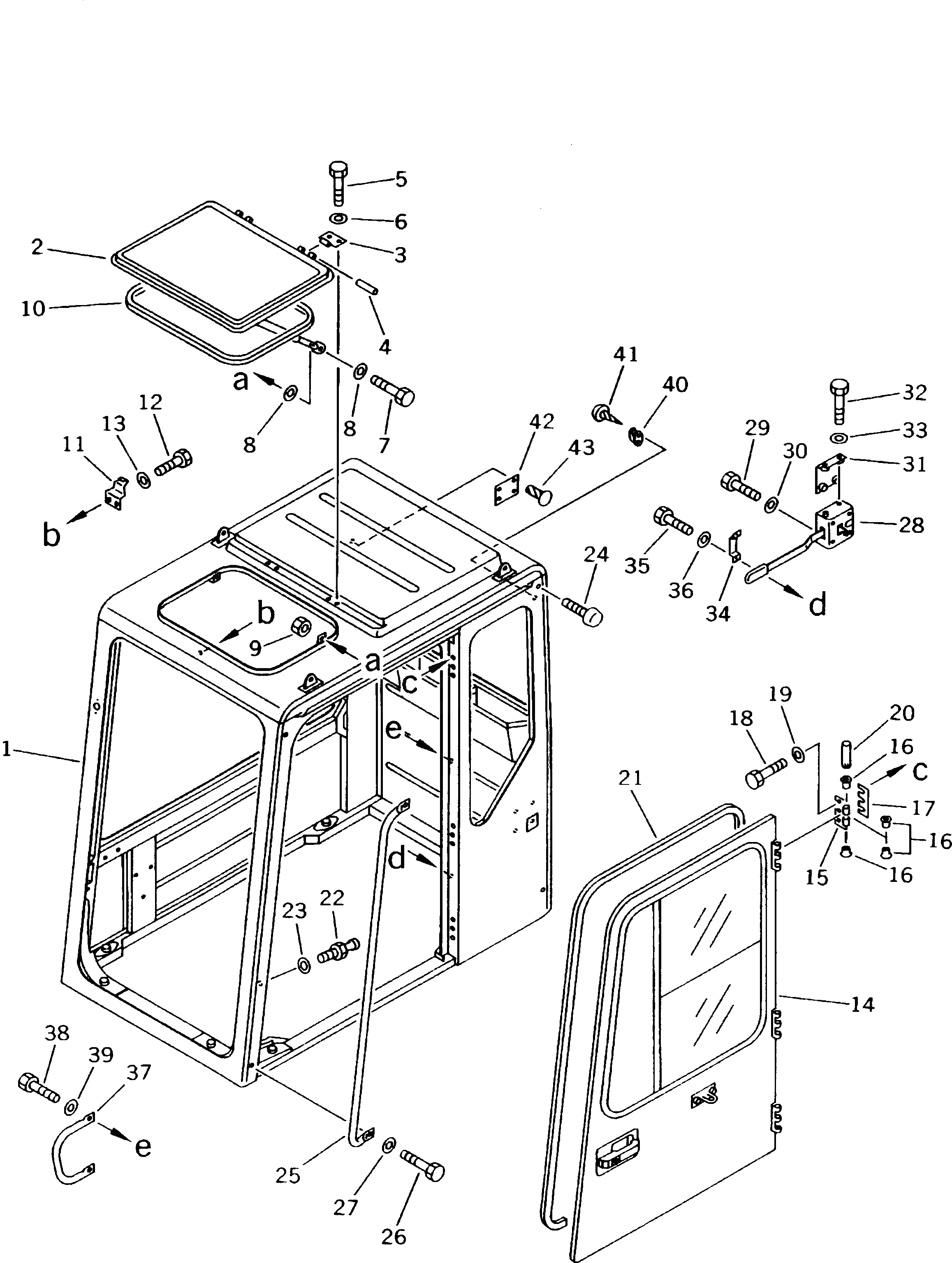

OPERATOR'S CAB ASS'Y
|$$2
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5201 TO 5206.
1
20Y-54-K1340
CAB
2
20Y-54-K1440
ROOF HATCH ASS'Y
3
20Y-54-K2410
HINGE
4
20Y-54-K2390
PIN
5
01010-50616
BOLT
6
01641-20608
WASHER
7
01010-50616
BOLT
8
01641-20608
WASHER
9
01598-00608
NUT
10
20Y-54-K2570
SEAL
11
20Y-54-K2580
BRACKET
12
01010-50616
BOLT
13
01641-20608
WASHER
14
20Y-54-K1830
DOOR ASS'Y,(SEE FIG.5205)
15
20Y-54-K1430
HINGE
16
20Y-54-K1960
BUSHING
17
20Y-54-K1970
SHIM
18
01010-50825
BOLT
19
01641-20812
WASHER
20
20Y-54-K1950
PIN
21
20Y-54-K2620
SEAL
22
20Y-54-K2550
BOLT
23
20Y-54-K2560
WASHER
24
20Y-54-K2290
BUFFER
25
20Y-54-K2530
HANDLE
26
01010-51030
BOLT
27
01641-21016
WASHER
28
20Y-54-K1330
LOCK BACK ASS'Y,(SEE FIG.5206)
29
01010-50816
BOLT
30
01641-20812
WASHER
31
20Y-54-K2190
COVER
32
20Y-54-K2750
SCREW
33
01641-20508
WASHER
34
20Y-54-K2210
BRACKET
35
20Y-54-K2740
SCREW
36
01641-20608
WASHER
37
20Y-54-K2540
HANDLE
38
01010-51030
BOLT
39
01641-21016
WASHER
40
20Y-54-K2510
HOOK
41
20Y-54-K2520
SCREW
42
20Y-54-K2240
PLATE¤ NAME,(LIMITED SUPPLY)
43
20Y-54-K2250
RIVET
Выбрано товаров: 45
