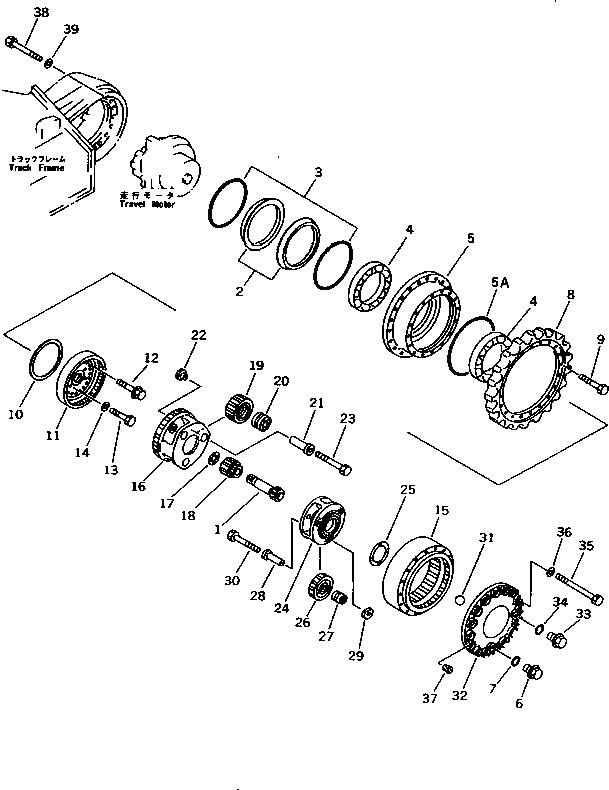

Запчасти Komatsu PC180NLC-5K КОНЕЧНАЯ ПЕРЕДАЧА И ЗВЕЗДОЧКА ХОД И ХОДОВАЯ

|1

21P-27-00010

FINAL DRIVE ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3351 AND 6431 TO 6433.

1

20Y-27-13130

SHAFT

|2

150-27-00028

FLOATING SEAL ASS'Y

2

150-27-00262

SEAL RING ASS'Y

|2

RING

3

144-873-0310

O-RING ASS'Y

|3

O-RING

4

20Y-27-11570

BEARING

5A

20Y-27-13290

O-RING

5

20Y-27-13120

HUB

6

07044-12412

PLUG

7

07002-02434

O-RING

8

20Y-27-11581

SPROCKET

9

20Y-27-11560

BOLT

10

20Y-27-00031

SPACER KIT

|10

SPACER¤ 4.70MM

|10

SPACER¤ 4.75MM

|10

SPACER¤ 4.80MM

|10

SPACER¤ 4.85MM

|10

SPACER¤ 4.90MM

|10

SPACER¤ 4.95MM

|10

SPACER¤ 5.00MM

|10

SPACER¤ 5.05MM

|10

SPACER¤ 5.10MM

11

20Y-27-13270

RETAINER

12

20Y-27-11180

BOLT

13

01010-51645

BOLT

14

01643-31645

WASHER

15

20Y-27-13190

GEAR

16

20Y-27-13230

CARRIER

17

205-26-71541

WASHER,THRUST

18

20Y-27-13210

GEAR

19

20Y-27-13220

GEAR

20

20Y-27-13260

BEARING

21

20Y-27-13240

PIN

22

20Y-27-11240

HOLDER

23

01011-51200

BOLT

24

20Y-27-13150

CARRIER

25

205-27-71570

SPACER

26

20Y-27-13140

GEAR

27

20Y-27-13180

BEARING

28

20Y-27-13160

PIN

29

20Y-27-13170

HOLDER

30

01010-51055

BOLT

31

04260-01905

BALL

32

20Y-27-13110

COVER

33

07044-12412

PLUG

34

07002-02434

O-RING

35

20Y-27-13280

BOLT

36

01643-31645

WASHER

37

07049-01215

PLUG

38

01010-51670

BOLT

39

01643-31645

WASHER
