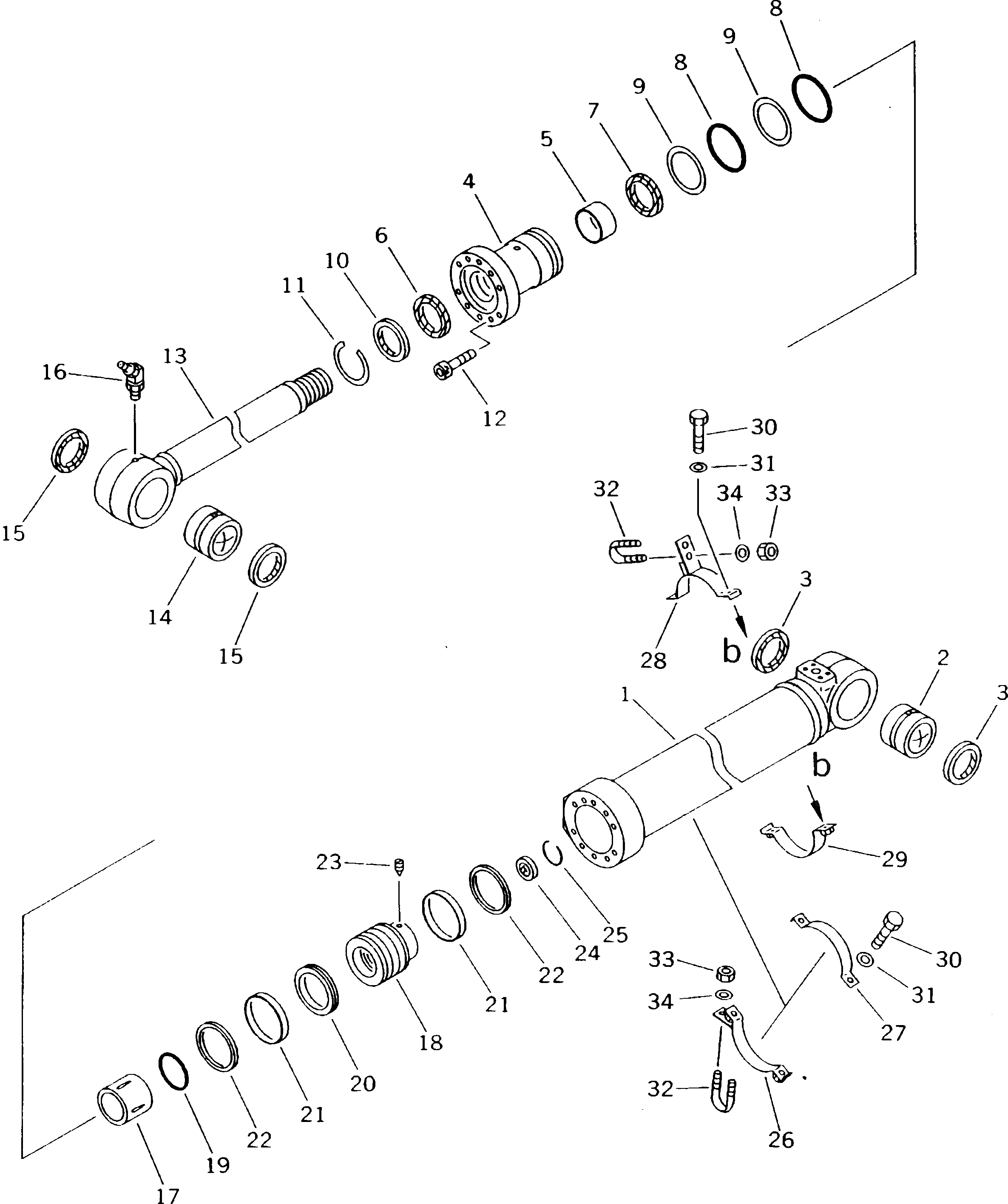

Запчасти Komatsu PC180NLC-5K ЦИЛИНДР РУКОЯТИ(ДЛЯ СТОПОРН. КЛАПАН) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

|1

21P-63-K1710

CYLINDER ASS'Y,ARM

1

21P-63-K1720

CYLINDER

2

707-76-80230

BUSHING

3

07145-00080

SEAL,DUST

4

21P-63-K1740

HEAD,CYLINDER

5

707-52-90600

BUSHING

6

707-51-85030

PACKING,ROD

7

707-51-85630

RING,BUFFER

8

21P-63-K1770

O-RING

9

21P-63-K1760

RING,BACK-UP

10

07016-20858

SEAL,DUST

11

21P-63-K1750

RING,SNAP

12

203-63-K2120

BOLT

13

21P-63-K1730

ROD,PISTON

14

707-76-80230

BUSHING

15

07145-00080

SEAL,DUST

16

203-63-K2370

FITTING,GREASE

17

21P-63-K2340

BUSHING,CUSHION

18

21P-63-K1790

PISTON

19

21P-63-K1810

O-RING

20

707-44-12180

RING,PISTON

21

707-39-12110

RING,WEAR

22

707-44-12911

RING

23

203-63-K2050

SCREW,SET

24

203-63-K1230

RING,CUSHION

25

203-63-K2110

RING,SNAP

26

21P-63-K2220

BRACKET

27

21P-63-K2230

BAND

28

21P-63-K2250

BRACKET

29

21P-63-K2240

BAND

30

203-63-K2210

BOLT

31

203-63-K2220

WASHER

32

21P-63-K1960

CLIP

33

203-63-K2790

NUT

34

203-63-K2230

WASHER
