Артикул
Название
Примечание
Количество
|1
700-85-49001
VALVE ASS'Y,R.H.
|$$2

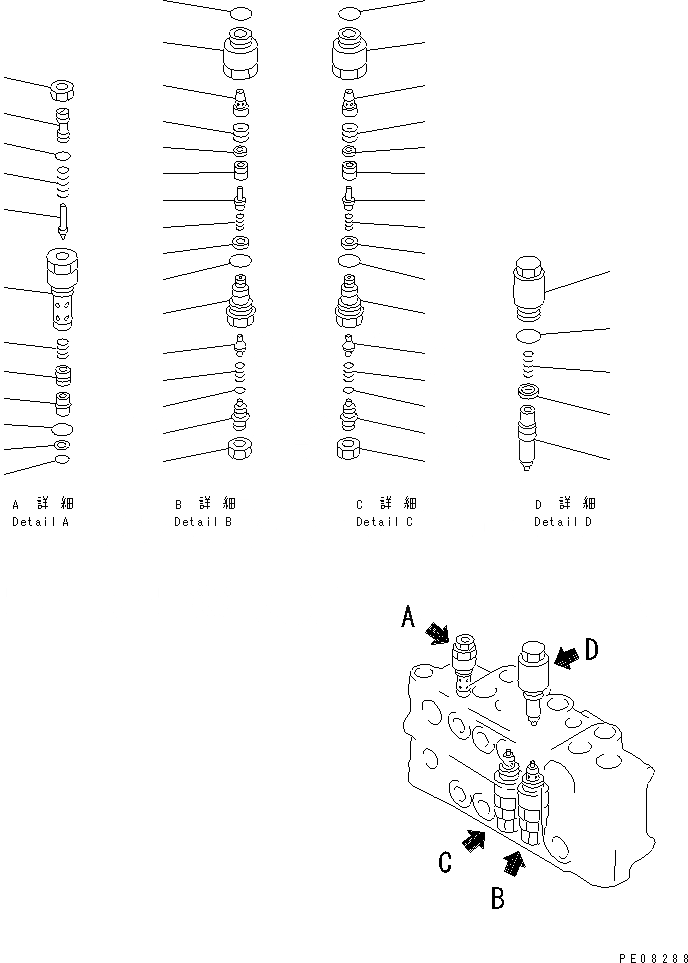

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6211 TO 6214.
|1
709-70-55400
RELIEF VALVE ASS'Y,RELIEF
1
SLEEVE
2
709-70-51420
POPPET
3
709-70-51230
SPRING
4
700-20-51340
SCREW
5
07000-02011
O-RING
6
01582-11411
NUT
7
700-22-11410
O-RING
8
07002-02434
O-RING
9
700-20-51550
RING
10
VALVE
11
709-70-51210
SPRING
12
700-20-51540
RETAINER
|13
709-70-74501
VALVE ASS'Y,SUCTION AND SAFETY
13
709-70-71112
SLEEVE
14
SLEEVE
15
POPPET
16
SEAL
17
PISTON
18
709-70-71210
SPRING
19
PLUG
20
SEAL
21
709-70-71220
SPRING
22
07002-02434
O-RING
23
POPPET
24
SPRING
25
SCREW
26
O-RING
27
NUT
28
709-25-11390
O-RING
|29
709-20-81201
VALVE ASS'Y,SUCTION
29
709-20-61110
SLEEVE
30
VALVE
31
709-20-61160
SPRING
32
SEAL
33
709-25-11390
O-RING
|34
709-70-74402
VALVE ASS'Y,SUCTION AND SAFETY
34
709-70-71112
SLEEVE
35
SLEEVE
36
POPPET
37
SEAL
38
PISTON
39
709-70-71210
SPRING
40
PLUG
41
SEAL
42
709-70-71220
SPRING
43
07002-02434
O-RING
44
POPPET
45
SPRING
46
SCREW
47
O-RING
48
NUT
49
709-25-11390
O-RING
Выбрано товаров: 55
