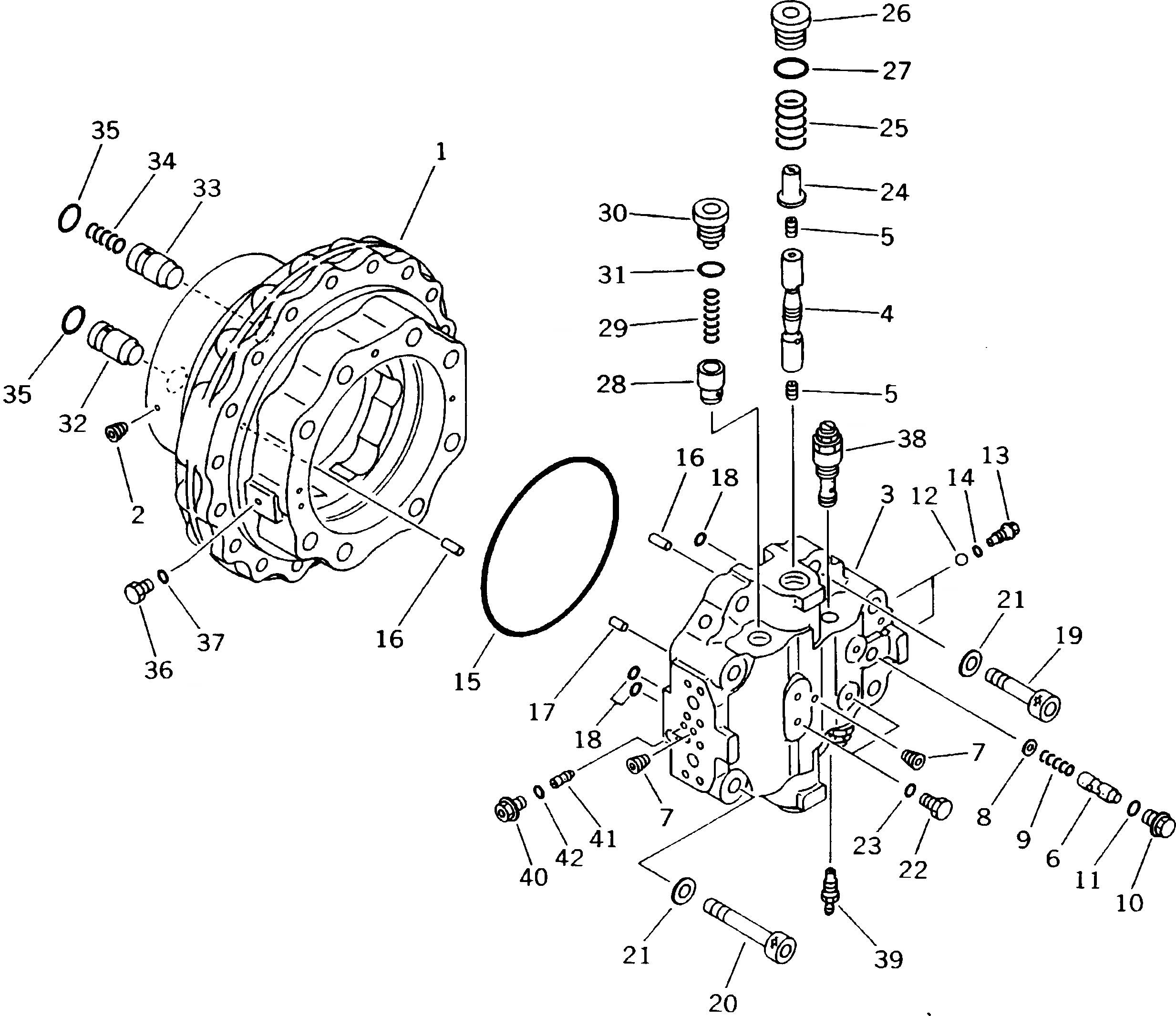

Запчасти Komatsu PC180LLC-5K МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

21P-27-00010

FINAL DRIVE ASS'Y

|1

708-8H-00120

MOTOR ASS'Y

|1

708-8H-04112

CASE ASS'Y

1

CASE

2

PLUG

|3

708-8H-04220

END COVER ASS'Y

3

COVER,END

4

SPOOL

5

SCREW

6

SPOOL

7

PLUG

8

708-8H-14211

PLATE

9

706-8E-14170

SPRING

10

706-8E-14190

PLUG

11

07002-11823

O-RING

12

04260-00793

BALL

13

706-8E-14110

PLUG

14

07002-11023

O-RING

15

07000-05220

O-RING

16

04020-01024

PIN

17

708-18-13230

PIN

18

07000-12012

O-RING

19

708-8H-11210

BOLT

20

708-8H-11220

BOLT

21

708-8H-11260

WASHER

22

708-8H-11530

PLUG

23

07002-11423

O-RING

24

708-8H-16120

RETAINER

25

708-8H-16160

SPRING

26

708-8H-16141

PLUG

27

07002-13634

O-RING

28

706-75-74231

VALVE

29

706-75-74240

SPRING

30

708-8H-16150

PLUG

31

07002-13034

O-RING

32

708-8H-14140

PISTON

33

708-8H-14180

PISTON

34

708-8H-14170

SPRING

35

07000-13038

O-RING

36

07040-11007

PLUG

37

07002-11023

O-RING

38

706-73-86202

VALVE ASS'Y,C.O.R.

39

20B-27-11210

BLEEDER

40

708-8E-16160

PLUG

41

708-8E-16180

VALVE

42

07002-11023

O-RING
