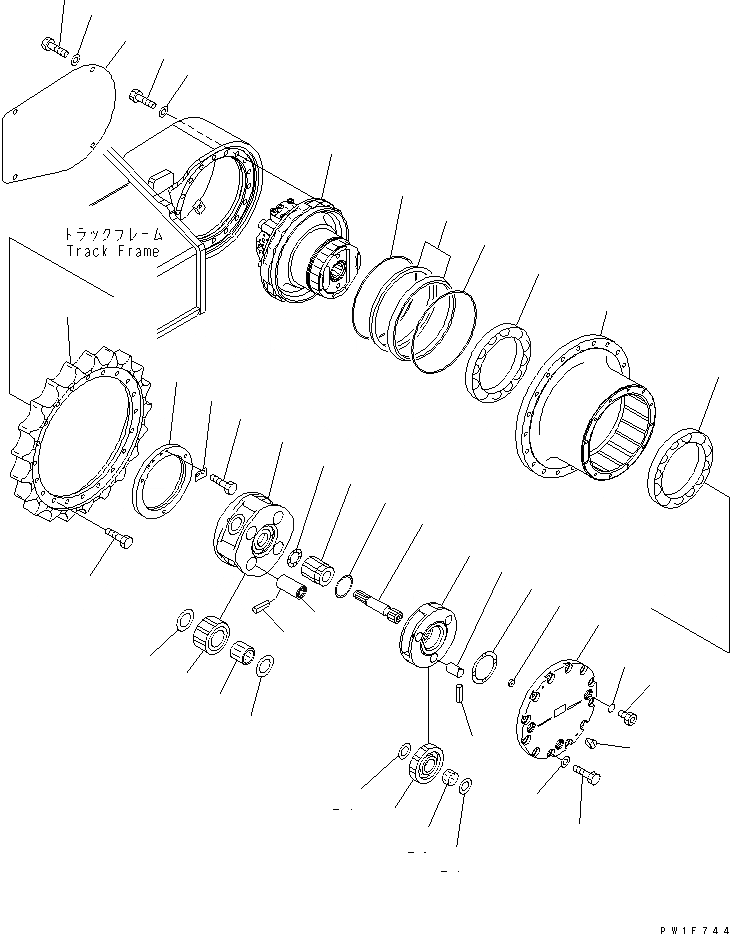

Запчасти Komatsu PC180LC-7K КОНЕЧНАЯ ПЕРЕДАЧА НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

|1

21K-27-00101

FINAL DRIVE ASS'Y

1

708-8F-00230

MOTOR ASS'Y,P

|2

150-27-00330

FLOATING SEAL ASS'Y

2

RING

3

O-RING

4

20Y-27-31120

HUB,HUB

5

20Y-27-31130

BEARING

6

20Y-27-22261

LOCK

7

20Y-27-31180

LOCK

8

01010-81020

BOLT

9

20Y-27-22170

CARRIER

10

20Y-27-22140

GEAR

11

20Y-27-22220

BEARING

12

20Y-27-21250

WASHER

13

20Y-27-31160

PIN

14

20Y-27-21290

PIN

15

20Y-27-13310

WASHER

16

20Y-27-22130

GEAR

17

20Y-27-22240

WASHER

18

20Y-27-31110

CARRIER

19

20Y-27-22120

GEAR

20

20Y-27-22210

BEARING

21

20Y-27-21240

WASHER

22

20Y-27-21220

PIN

23

20Y-27-21280

PIN

24

20Y-27-31140

SHAFT

25

20Y-27-21310

WASHER

26

20Y-27-31150

COVER

27

20Y-27-22250

BUTTON

28

01010-61230

BOLT

29

01643-31232

WASHER

30

07049-01012

PLUG

31

20Y-27-31190

PLUG

32

07002-12434

O-RING

33

20Y-27-11582

SPROCKET

34

20Y-27-11561

BOLT

35

01010-81660

BOLT

36

01643-31645

WASHER

37

20Y-30-21191

COVER

38

01010-81230

BOLT

39

01643-31232

WASHER
