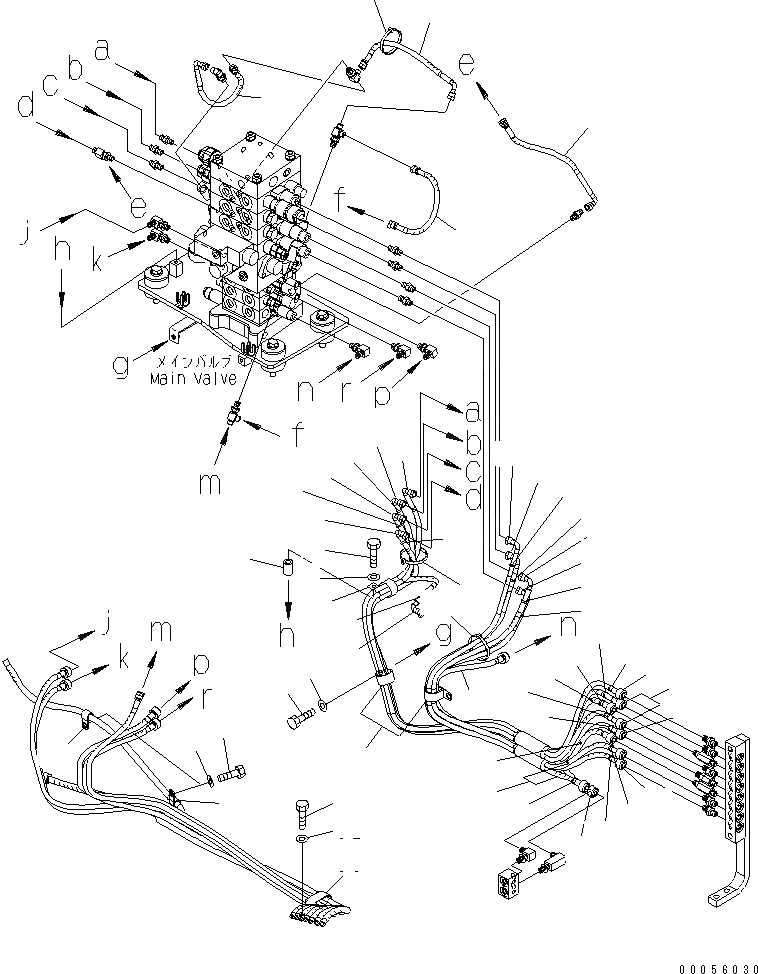

Запчасти Komatsu PC180LC-7-E0 ОСНОВН. КЛАПАН PPC ЛИНИЯ ( АКТУАТОР) ГИДРАВЛИКА

1

04434-53412

CLIP

2

01010-81225

BOLT

3

01643-31232

WASHER

4

20Y-03-11220

COLLAR

5

04434-53412

CLIP

6

01010-81260

BOLT

7

01643-31232

WASHER

8

21K-62-75340

HOSE¤ 1500MM

9

21K-62-75360

HOSE¤ 1750MM

10

21K-62-75330

HOSE¤ 1450MM

11

21K-62-75350

HOSE¤ 1600MM

12

20Y-62-22790

BAND¤ RED

13

20Y-62-22810

BAND¤ YELLOW

14

20Y-62-22840

BAND¤ BLACK

15

20Y-62-22850

BAND¤ GREEN

16

21K-62-75250

HOSE¤ 1000MM

17

21K-62-75290

HOSE¤ 1200MM

18

21K-62-75310

HOSE¤ 1250MM

19

21K-62-75320

HOSE¤ 1300MM

20

20Y-62-22810

BAND¤ YELLOW

21

20Y-62-22820

BAND¤ BLUE

22

20Y-62-22830

BAND¤ WHITE

23

20Y-62-22860

BAND¤ BROWN

24

08034-20834

BAND

25

22U-62-26861

HOSE

26

22U-62-26861

HOSE

27

08034-20834

BAND

28

21K-62-75580

HOSE¤ 400MM

29

22B-62-25320

HOSE¤ 300MM

30

195-911-4350

CLIP

31

01010-81225

BOLT

32

01643-31232

WASHER

33

04434-51612

CLIP

34

01010-81225

BOLT

35

01643-31232

WASHER
