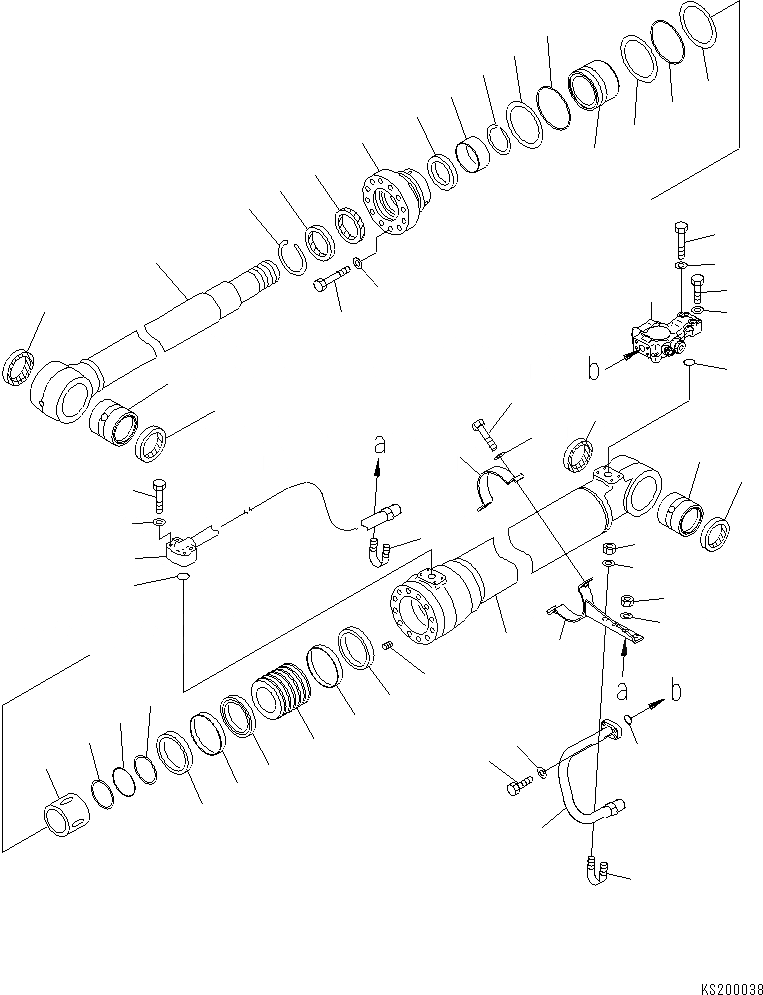

Запчасти Komatsu PC180LC-7-E0 СТРЕЛА ГИДРОЦИЛИНДР ПОДЪЕМА (ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ) (ПРАВ.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XM210

CYLINDER ASS'Y,R.H.

|1

707-01-0AE00

CYLINDER ASS'Y

1

707-13-12610

CYLINDER

2

21K-70-71320

BUSHING

3

07145-00070

SEAL,DUST (KIT)

4

707-58-85490

ROD,PISTON

5

707-76-80431

BUSHING

6

07145-00080

SEAL,DUST (KIT)

7

707-27-12350

HEAD,CYLINDER

8

07179-13099

RING,SNAP

9

707-56-85510

SEAL,DUST (KIT)

10

707-52-90610

BUSHING

11

707-75-85110

RING,SNAP

12

707-51-85030

PACKING,ROD (KIT)

13

07000-15110

O-RING (KIT)

14

707-35-91220

RING,BACK-UP (KIT)

15

707-51-85650

RING,BUFFER (KIT)

16

01010-81670

BOLT

17

01643-51645

WASHER

18

707-36-12851

PISTON

19

707-44-12150

RING,PISTON (KIT)

20

707-39-12140

RING,WEAR (KIT)

21

707-44-12911

RING

22

707-71-70820

PLUNGER

23

07000-15075

O-RING (KIT)

24

707-35-90930

RING,BACK-UP (KIT)

25

01310-01216

SCREW

26

707-71-35090

COLLAR

27

707-35-91220

RING,BACK-UP (KIT)

28

07000-15110

O-RING (KIT)

29

707-86-48420

TUBE,R.H.

30

01010-80850

BOLT

31

01643-50823

WASHER

32

07000-13025

O-RING (KIT)

33

707-88-50360

BRACKET,R.H.

34

707-88-21251

BAND

35

07372-21035

BOLT

36

01643-51032

WASHER

37

07283-32738

CLIP

38

01597-01009

NUT

39

01643-31032

WASHER

|40

707-79-90170

VALVE ASS'Y

40

707-86-68550

TUBE

41

07000-13030

O-RING

42

07372-21035

BOLT

43

01643-51032

WASHER

44

702-21-08350

PILOT VALVE

45

07000-13030

O-RING

46

07372-21060

BOLT

47

01643-51032

WASHER

48

07372-21050

BOLT

49

01643-51032

WASHER

50

07283-32236

CLIP

51

01597-01009

NUT

52

01643-31032

WASHER

|K

707-99-46430

SERVICE KIT
