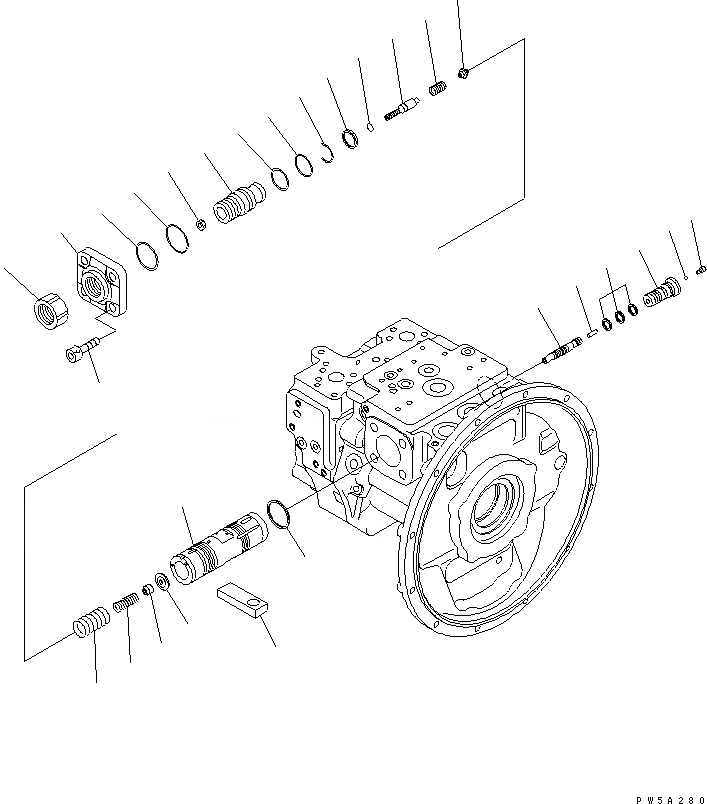

Запчасти Komatsu PC180LC-7-E0 ОСНОВН. НАСОС (/9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-3M-00030

PUMP ASS'Y

|1

708-3M-01030

PUMP SUB ASS'Y

1

708-2G-14120

SLIDER

|2

708-3M-03020

VALVE ASS'Y,PC

2

708-2G-03590

PISTON ASS'Y,SERVO

3

708-2G-15320

SEAL

4

708-3M-15630

PLUG

5

708-2L-35760

BALL

6

708-2L-35770

PLUG

7

708-2L-35690

SEAL

8

708-2L-35170

PIN

9

708-3M-15670

SPOOL

10

708-2G-15290

RETAINER

11

708-2G-15140

SEAT

12

708-2G-15270

SPRING

13

708-3M-15620

SPRING

14

708-2G-15151

SEAT

15

708-3M-15610

SPRING

16

708-2G-14340

SCREW

17

07000-B3038

O-RING

18

708-2G-15230

RING,BACK-UP

19

708-2G-15260

SEAL

20

708-2G-15240

PLUG

21

07000-B2012

O-RING

22

07000-B2050

O-RING

23

708-2G-15310

RING

24

708-2G-14190

COVER

25

01580-10806

NUT

26

708-2L-35290

NUT

27

708-2G-15330

RING,WIRE

28

01252-61645

BOLT
