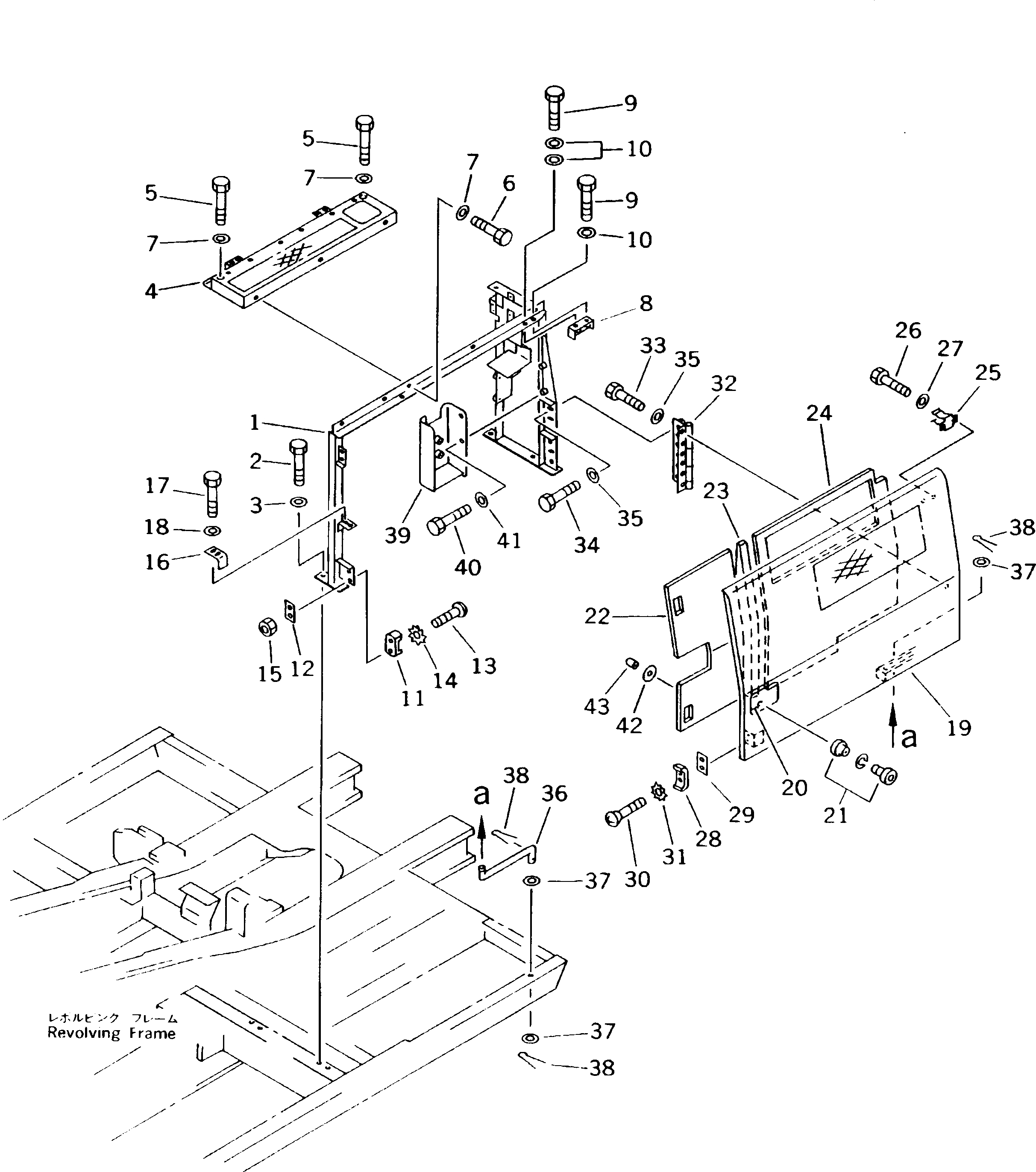

Запчасти Komatsu PC180LC-5K ЛЕВ. COVER ЧАСТИ КОРПУСА

1

21K-54-39221

BRACKET

2

01010-51030

BOLT

3

01643-31032

WASHER

4

21K-54-39141

COVER

5

01010-51050

BOLT

6

01010-51025

BOLT

7

01643-31032

WASHER

8

203-54-56810

BRACKET

9

01010-51025

BOLT

10

01643-31032

WASHER

11

566-54-13410

STRIKER

12

203-54-56790

PLATE

13

01225-40820

SCREW

14

566-54-13570

WASHER

15

01580-10806

NUT

16

203-54-59290

PLATE

17

01010-51025

BOLT

18

01643-31032

WASHER

|19

21K-54-K1181

COVER ASS'Y

19

COVER

20

421-54-11372

LOCK ASS'Y (WELDED)

21

421-54-11381

LOCK

22

203-54-K1441

SHEET

23

203-54-K1451

SHEET

24

21K-54-K1171

SHEET

25

203-54-56820

CLAMP

26

01010-51016

BOLT

27

01643-31032

WASHER

28

566-54-14420

STOPPER

29

203-54-52610

PLATE

30

01225-40820

SCREW

31

566-54-13570

WASHER

32

203-54-59240

HINGE

33

01010-51225

BOLT

34

01010-51230

BOLT

35

01643-31232

WASHER

36

21K-54-33610

BAR

37

01642-21016

WASHER

38

04050-13018

PIN,COTTER

39

203-54-59840

BRACKET

40

01010-51020

BOLT

41

01643-31032

WASHER

42

205-54-K5371

WASHER

43

205-54-K5320

CAP
