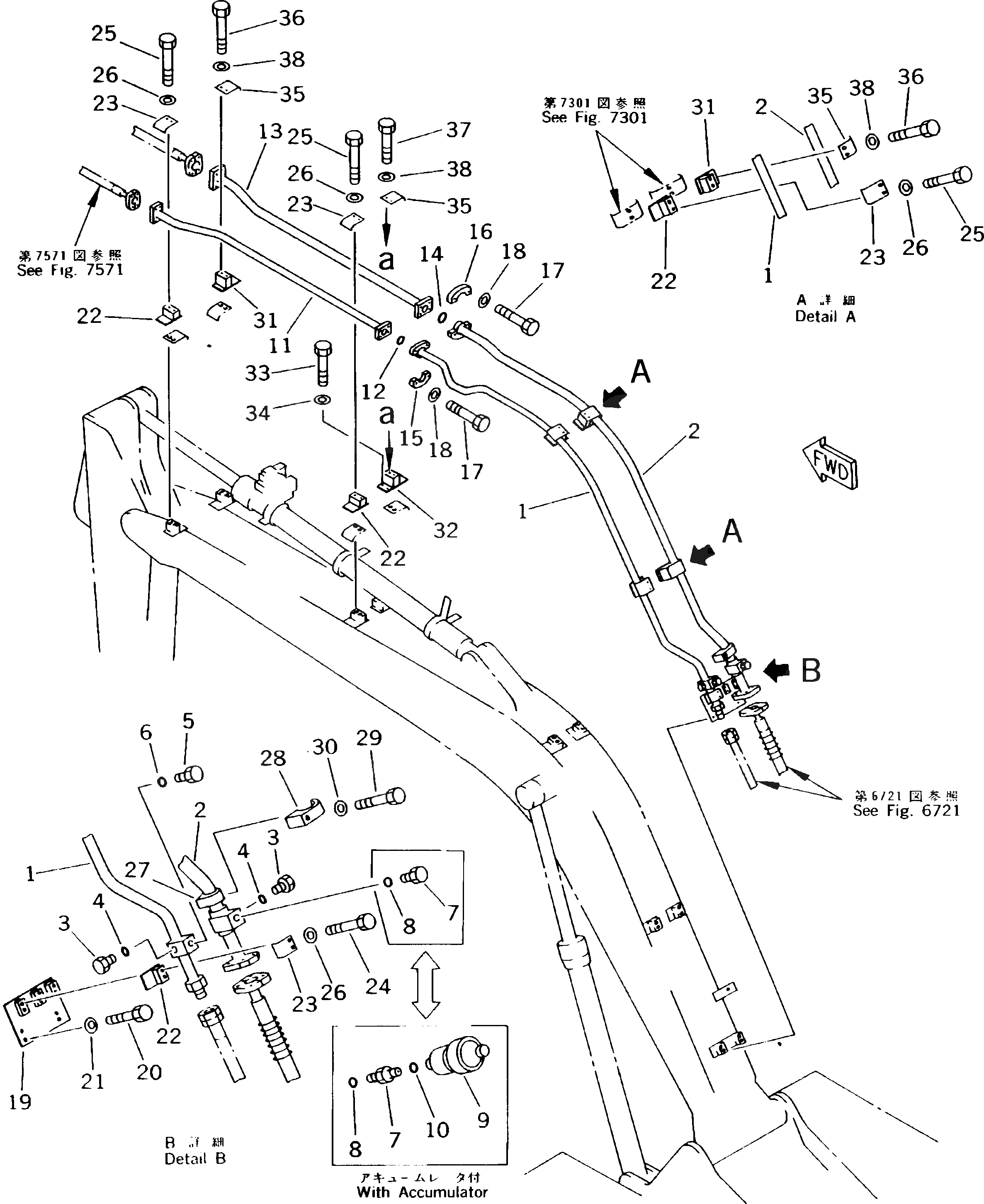

Запчасти Komatsu PC180LC-5K ГИДРОЛИНИЯ (ДОПОЛН. ГИДРОЛИНИЯ ЛИНИЯ) (СТРЕЛА)(№K-K97) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

1

21P-973-2121

TUBE

2

21P-973-2130

TUBE

3

07040-11007

PLUG

4

07002-11023

O-RING

5

07040-12012

PLUG

6

07002-12034

O-RING

7

07040-12012

PLUG,(WITHOUT ACCUMULATOR)

|7

203-973-5610

UNION,(WTIH ACCUMULATOR)

8

07002-12034

O-RING

9

2988-01-3630

ACCUMULATOR

10

07002-12034

O-RING

11

21K-973-3160

TUBE

12

07000-13025

O-RING

13

21K-973-3180

TUBE

14

07000-13032

O-RING

15

07371-30640

FLANGE,SPLIT

16

07371-31049

FLANGE,SPLIT

17

07372-21035

BOLT

18

01643-51032

WASHER

19

21K-973-3210

SEAT

20

01010-51025

BOLT

21

01643-31032

WASHER

22

201-973-6740

SEAT

23

201-973-6730

CLAMP

24

01010-51060

BOLT

25

01010-51065

BOLT

26

01643-31032

WASHER

27

203-973-4390

CUSHION

28

203-973-5790

CLAMP

29

01010-51260

BOLT

30

01643-31232

WASHER

31

203-973-5680

SEAT

32

203-973-5710

SEAT

33

01010-51030

BOLT

34

01643-31032

WASHER

35

203-973-5650

CLAMP

36

01010-51075

BOLT

37

01010-51025

BOLT

38

01643-31032

WASHER
