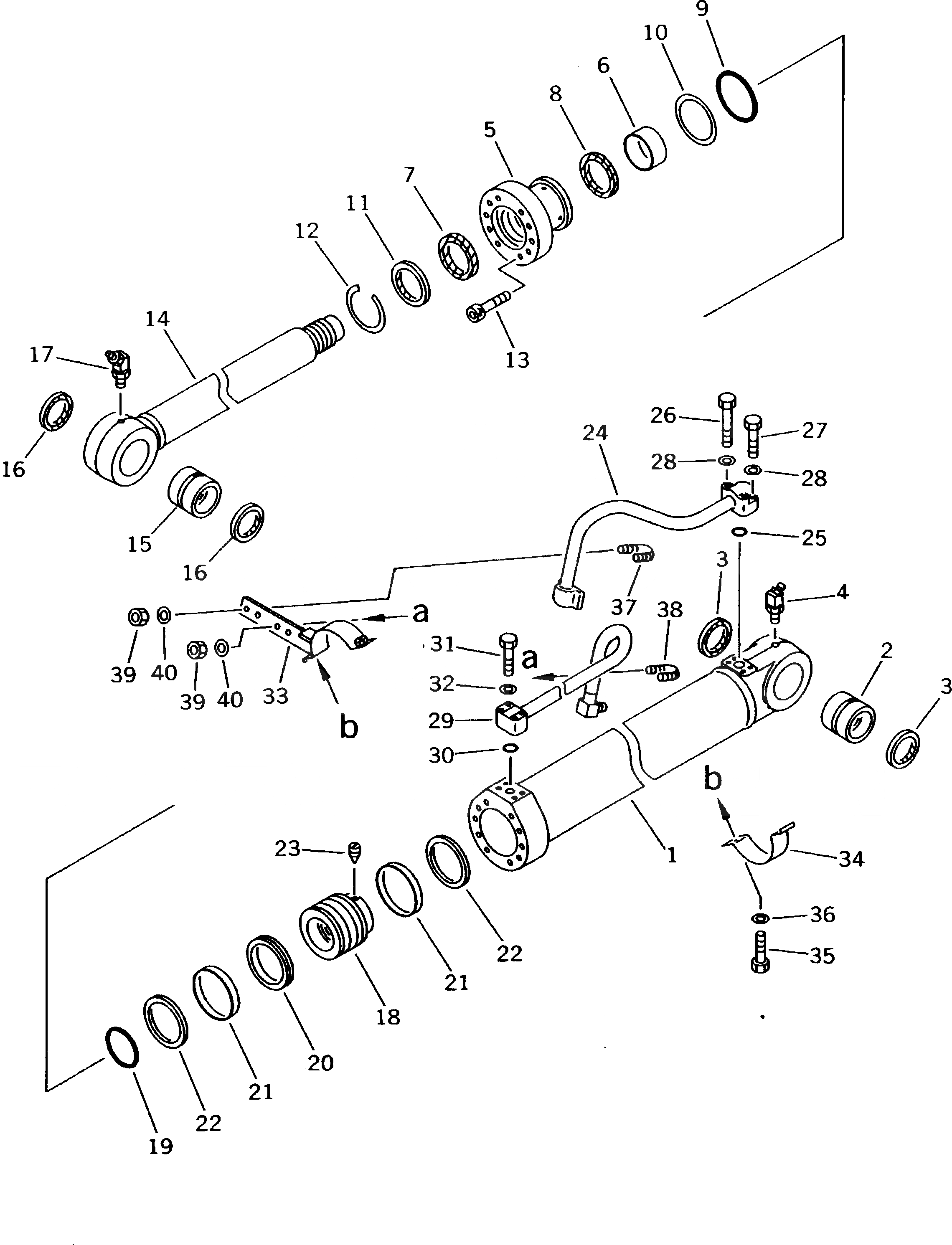

Запчасти Komatsu PC180LC-5K ЦИЛИНДР СТРЕЛЫ РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)
№
Артикул
Название
Примечание
Количество
|1
21P-63-K1600
CYLINDER ASS'Y,L.H. (WITH TUBE)
|1
21P-63-K1700
CYLINDER ASS'Y,R.H. (WITH TUBE)
|1
21P-63-K1610
CYLINDER ASS'Y,BOOM
1
21P-63-K1620
CYLINDER
2
707-76-70040
BUSHING
3
07145-00070
SEAL,DUST
4
203-63-K2370
FITTING,GREASE
5
21P-63-K1650
HEAD,CYLINDER
6
707-52-90500
BUSHING
7
707-51-75030
PACKING,ROD
8
707-51-75630
RING,BUFFER
9
21P-63-K1670
O-RING
10
21P-63-K1660
RING,BACK-UP
11
144-63-94170
SEAL,DUST
12
203-63-K2090
RING,SNAP
13
203-63-K2120
BOLT
14
21P-63-K1640
ROD,PISTON
15
707-76-70040
BUSHING
16
07145-00070
SEAL,DUST
17
203-63-K2370
FITTING,GREASE
18
21P-63-K1680
PISTON
19
21P-63-K1690
O-RING
20
707-44-11180
RING,PISTON
21
707-39-11110
RING,WEAR
22
707-44-11911
RING
23
203-63-K2050
SCREW,SET
24
21P-63-K1910
TUBE,L.H.
|24
21K-63-54280
TUBE,R.H.
|24
21P-63-K1880
TUBE,R.H.
25
07000-13030
O-RING
26
07372-21060
BOLT
|26
21P-63-K1970
BOLT
27
07372-21045
BOLT
|27
21P-63-K2110
BOLT
28
01643-51032
WASHER
|28
203-63-K2220
WASHER
29
21P-63-K1920
TUBE,L.H.
|29
21K-63-54270
TUBE,R.H.
|29
21P-63-K1890
TUBE,R.H.
30
07000-13025
O-RING
31
01010-50850
BOLT
|31
203-63-K2240
BOLT
32
01643-50823
WASHER
|32
203-63-K2440
WASHER
33
21P-63-K1940
BRACKET,L.H.
|33
C77-63-95850
BRACKET,R.H.
|33
21P-63-K1930
BRACKET,R.H.
34
707-88-97750
BAND
|34
21P-63-K1950
BAND
35
01010-51025
BOLT
|35
203-63-K2450
BOLT
36
01643-31032
WASHER
|36
203-63-K2230
WASHER
37
07283-22738
CLIP
|37
21P-63-K1960
CLIP
38
07283-22236
CLIP
|38
203-63-K2190
CLIP
39
203-63-K2790
NUT
40
01643-31032
WASHER
|40
203-63-K2230
WASHER
Выбрано товаров: 60
