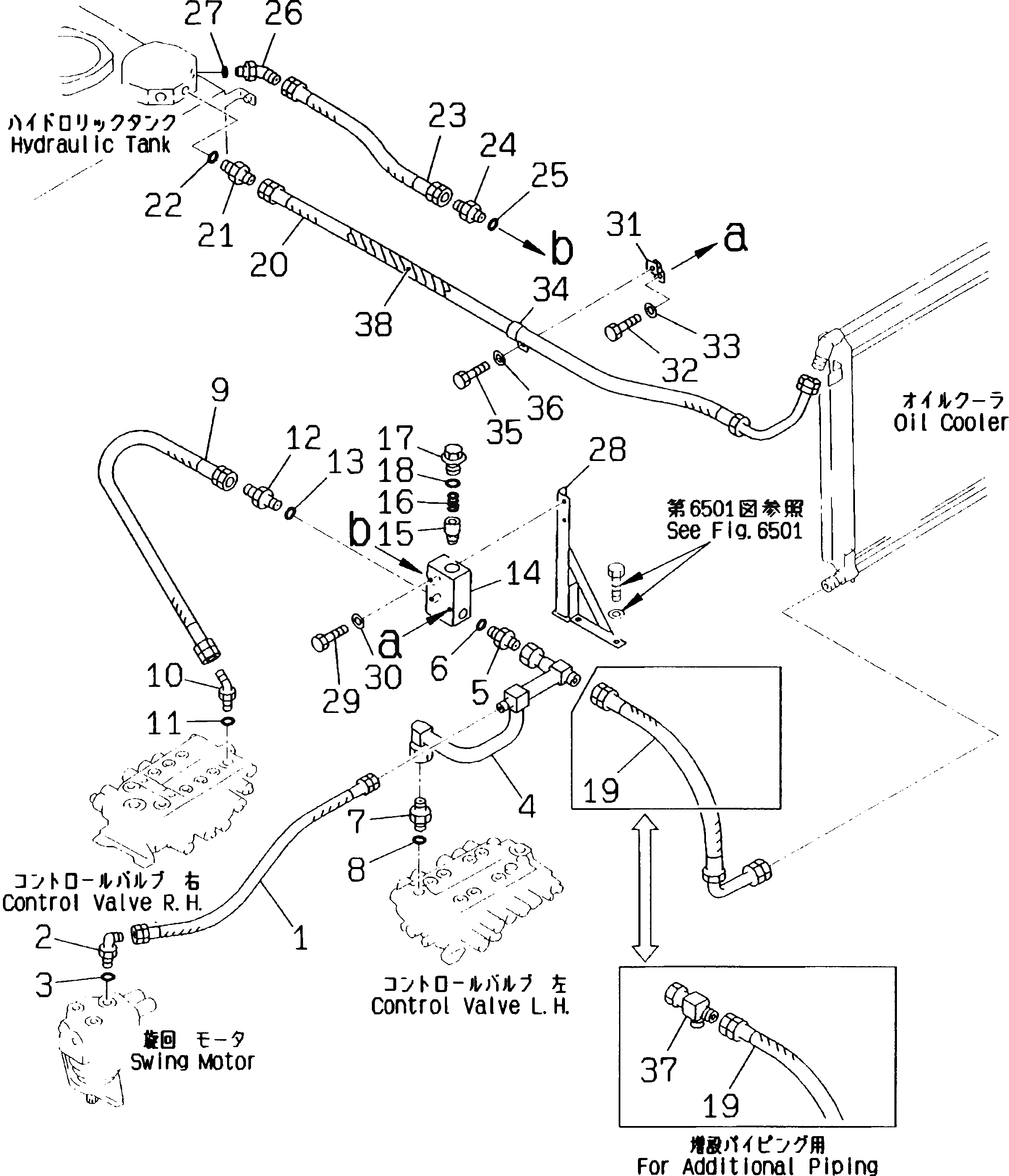

Запчасти Komatsu PC180LC-5K ГИДРОЛИНИЯ (МАСЛООХЛАДИТЕЛЬ И ВОЗВРАТ. ЛИНИЯ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

203-62-58510

HOSE

2

07235-10628

ELBOW

3

07002-02434

O-RING

4

20G-62-K3330

TUBE

|4

21P-62-23710

TUBE

5

07230-21034

UNION

6

07002-03334

O-RING

7

07230-21034

UNION

8

07002-03334

O-RING

9

07102-21005

HOSE

10

07236-11034

ELBOW

11

07002-03334

O-RING

12

07230-21034

UNION

13

07002-03334

O-RING

14

21K-62-34231

BLOCK

15

205-60-51350

POPPET

16

561-60-62240

SPRING

17

21K-62-34240

PLUG

18

07002-04234

O-RING

19

21P-62-23741

HOSE

20

21K-62-39140

HOSE

21

07230-21034

UNION

22

07002-03334

O-RING

23

21K-62-34621

HOSE

24

07230-21034

UNION

25

07002-03334

O-RING

26

07236-11034

ELBOW

27

07002-03334

O-RING

28

21K-62-34262

BRACKET

29

01010-51075

BOLT

30

01643-31032

WASHER

31

21K-62-34290

BRACKET

32

01010-51020

BOLT

33

01643-31032

WASHER

34

281-01-13180

CLIP

35

01010-51020

BOLT

36

01643-31032

WASHER

37

21K-973-3230

TEE,(FOR ADDITIONAL PIPING)

38

203-62-32440

COVER,(FOR ADDITIONAL PIPING)
