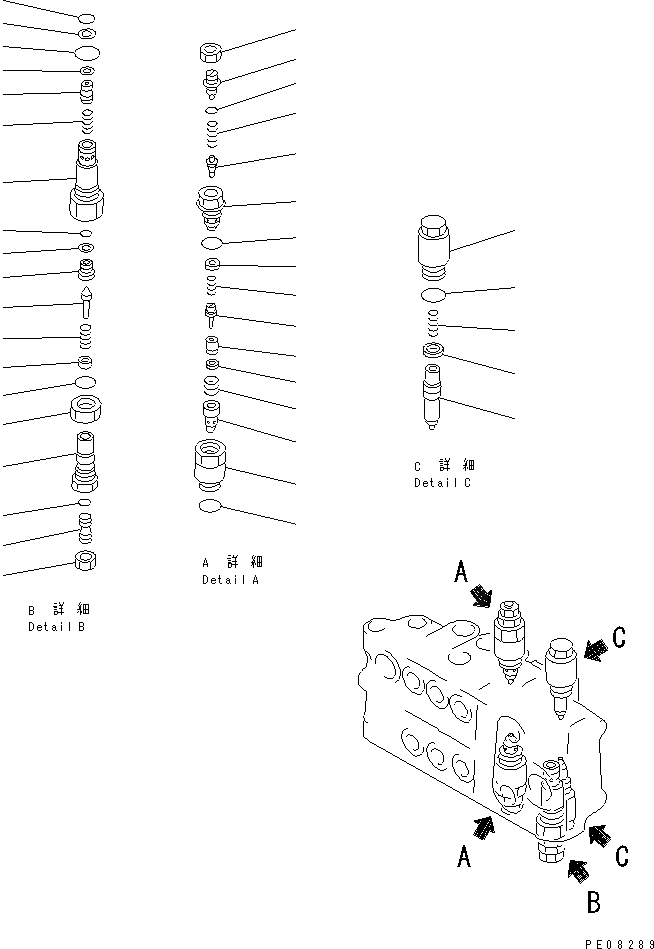

Запчасти Komatsu PC180LC-5K ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-49001

VALVE ASS'Y,R.H.

|1

709-70-74302

VALVE ASS'Y,SUCTION AND SAFETY

1

709-70-71112

SLEEVE

2

SLEEVE

3

POPPET

4

SEAL

5

PISTON

6

709-70-71210

SPRING

7

PLUG

8

SEAL

9

709-70-71220

SPRING

10

07002-02434

O-RING

11

POPPET

12

SPRING

13

SCREW

14

O-RING

15

NUT

16

709-25-11390

O-RING

|17

709-80-52900

RELIEF VALVE ASS'Y,RELIEF

17

SLEEVE

18

700-13-31161

O-RING

19

700-80-51190

RING,BACK-UP

20

07002-03334

O-RING

21

700-80-51350

RING,SNAP

22

VALVE

23

700-80-51390

SPRING

24

700-80-51740

SEAT

25

07000-22012

O-RING

26

07001-02012

RING,BACK-UP

27

700-80-61190

POPPET

28

709-20-51231

SPRING

29

709-90-51260

RETAINER

30

700-80-51360

HOLDER

31

07002-02434

O-RING

32

700-80-51630

SCREW

33

07000-02011

O-RING

34

07239-12410

NUT

35

01582-11411

NUT

|36

709-20-81201

VALVE ASS'Y,SUCTION AND SAFETY

36

709-20-61110

SLEEVE

37

VALVE

38

709-20-61160

SPRING

39

SEAL

40

709-25-11390

O-RING
