Экскаваторы
/
PC16R-3 S/N F60003-
/
МАРКИРОВКА
/

МАРКИРОВКА (НАВЕС) (/)

Запчасти Komatsu PC16R-3 МАРКИРОВКА (НАВЕС) (/) МАРКИРОВКА

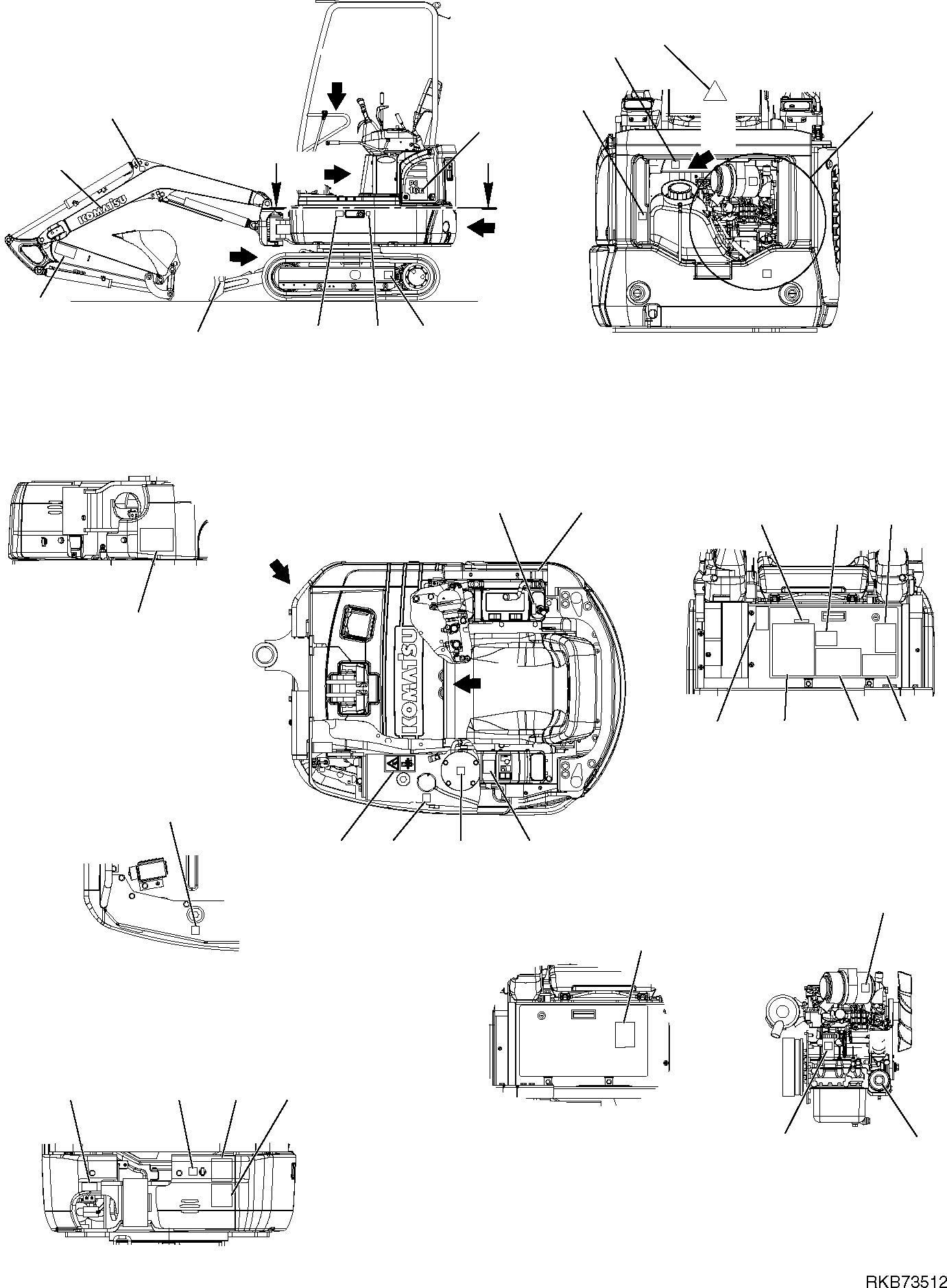

Схема запчастей Komatsu PC16R-3 - МАРКИРОВКА (НАВЕС) (/) МАРКИРОВКА
31
32
9
3
7
2
1
6
4
5
3
18
19
10
14
11
17
16
12
21
20
21
22
23
25
24
28
29
8
30
26
27
b
b
b
x
x
t
t
w
w
y
y
k
k
/n
/n
u
u
m
13
15
31
32
9
3
7
2
1
6
4
5
3
18
19
10
14
11
17
16
12
21
20
21
22
23
25
24
28
29
8
30
26
27
b
b
b
x
x
t
t
w
w
y
y
k
k
/n
/n
u
u
m
13
15

№

Артикул

Название

Примечание

Количество

1

22L-09-R4110

DECAL, DANGER, KEEP OUT WORKING AREA

2

22L-09-R4140

DECAL, KOMATSU LOGO

3

22L-09-R4160

PLATE, LIFTING POINT

4

22L-98-22180

DECAL, WARNING, LOCK LEVERS

5

21D-98-12030

DECAL, SYMBOL, HYDRAULIC OIL

6

21D-98-11860

PLATE, ANCHOR POINT

7

20W-98-91140

DECAL, PC16R, L.H.

8

09696-50077

MARK PLATE, LPA 77

9

21D-98-11220

DECAL, SYMBOL, FUEL

10

20P-98-71510

DECAL, FUSE BOX

11

22L-09-R1520

DECAL, OPERATING

12

09651-A0481

DECAL, WARNING, READ MANUAL BEFORE OPERATING

13

20W-98-91110

DECAL, OIL CHART

14

20W-98-91150

DECAL, WARNING, LOCK LEVERS

15

20W-98-91510

DECAL, LIFTING CAPACITY

16

22L-98-22461

DECAL, BALANCING POSITION MARK

17

22L-09-R4180

DECAL, UTILITY LOGO

18

22L-98-R2380

DECAL, SYMBOL, STARTING SWITCH CONTROL

19

21D-98-11150

DECAL, SYMBOL, RADIATOR CAP

20

22L-98-R2390

DECAL, FLOOR FRAME LIFTING LOCK

21

21D-98-11230

DECAL, SYMBOL, HYDRAULIC OIL LEVEL

22

21D-98-12050

DECAL, SYMBOL, HYDRAULIC OIL FILTER

23

22L-09-R4190

DECAL, LOCK LEVERS

24

22L-09-R4322

DECAL

25

21D-98-11180

DECAL, SYMBOL, AIR FILTER

26

21D-98-11170

DECAL, SYMBOL, FUEL FILTER

27

21D-98-11190

DECAL, SYMBOL, ENGINE OIL FILTER

28

21S-98-33270

DECAL, BALL BEARING RING GREASE POINT

29

21D-98-12040

DECAL, SYMBOL, ELECTRIC SOCKET

30

09696-40093

MARK PLATE, LWA 93

31

42N-93-11220

DECAL, DANGER, PINCH POINT

32

395-93-13550

DECAL, BATTERY DISCONNECTING SWITCH

1

22L-09-R4110

DECAL, DANGER, KEEP OUT WORKING AREA

2

22L-09-R4140

DECAL, KOMATSU LOGO

3

22L-09-R4160

PLATE, LIFTING POINT

4

22L-98-22180

DECAL, WARNING, LOCK LEVERS

5

21D-98-12030

DECAL, SYMBOL, HYDRAULIC OIL

6

21D-98-11860

PLATE, ANCHOR POINT

7

20W-98-91140

DECAL, PC16R, L.H.

8

09696-50077

MARK PLATE, LPA 77

9

21D-98-11220

DECAL, SYMBOL, FUEL

10

20P-98-71510

DECAL, FUSE BOX

11

22L-09-R1520

DECAL, OPERATING

12

09651-A0481

DECAL, WARNING, READ MANUAL BEFORE OPERATING

13

20W-98-91110

DECAL, OIL CHART

14

20W-98-91150

DECAL, WARNING, LOCK LEVERS

15

20W-98-91510

DECAL, LIFTING CAPACITY

16

22L-98-22461

DECAL, BALANCING POSITION MARK

17

22L-09-R4180

DECAL, UTILITY LOGO

18

22L-98-R2380

DECAL, SYMBOL, STARTING SWITCH CONTROL

19

21D-98-11150

DECAL, SYMBOL, RADIATOR CAP

20

22L-98-R2390

DECAL, FLOOR FRAME LIFTING LOCK

21

21D-98-11230

DECAL, SYMBOL, HYDRAULIC OIL LEVEL

22

21D-98-12050

DECAL, SYMBOL, HYDRAULIC OIL FILTER

23

22L-09-R4190

DECAL, LOCK LEVERS

24

22L-09-R4322

DECAL

25

21D-98-11180

DECAL, SYMBOL, AIR FILTER

26

21D-98-11170

DECAL, SYMBOL, FUEL FILTER

27

21D-98-11190

DECAL, SYMBOL, ENGINE OIL FILTER

28

21S-98-33270

DECAL, BALL BEARING RING GREASE POINT

29

21D-98-12040

DECAL, SYMBOL, ELECTRIC SOCKET

30

09696-40093

MARK PLATE, LWA 93

31

42N-93-11220

DECAL, DANGER, PINCH POINT

32

395-93-13550

DECAL, BATTERY DISCONNECTING SWITCH
