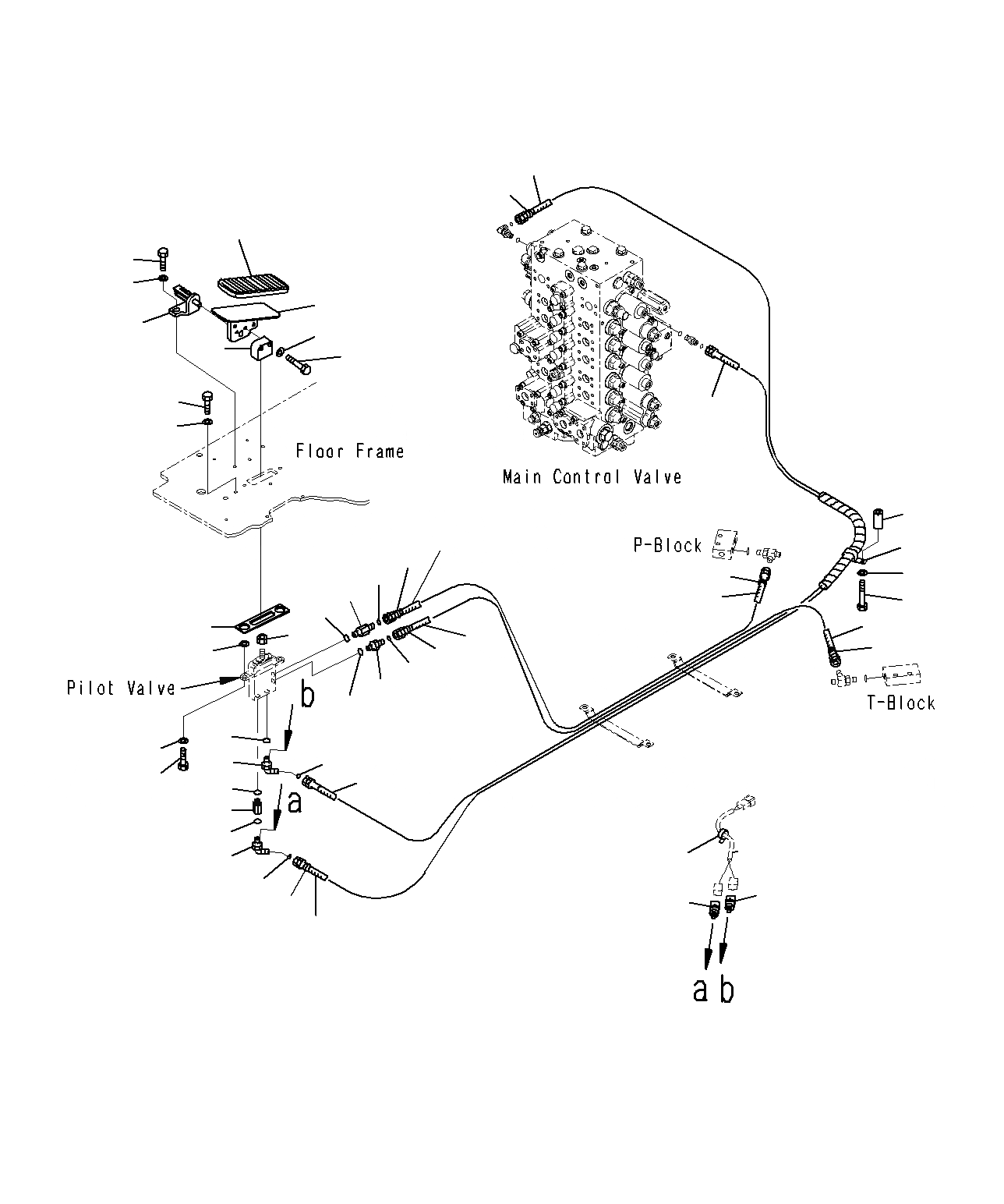

Запчасти Komatsu PC160LC-8 КАБИНА (-УПРАВЛ. НАВЕСН. ОБОРУД.) K

1

22U-54-25660

SEAL

2

20Y-43-41760

SEAT

3

01010-81025

BOLT

4

01643-31032

WASHER

5

01643-31032

WASHER

6

20Y-62-25360

BRACKET

7

01010-D1035

BOLT

8

01643-71032

WASHER

9

20Y-53-14220

PEDAL

10

01010-D1045

BOLT

11

01643-71032

WASHER

12

22U-54-25541

PLATE

13

01010-81025

BOLT

14

01643-31032

WASHER

15

207-43-81240

CAP

16

20T-910-8660

NIPPLE

17

07000-12011

O-RING

18

20Y-62-52160

ELBOW

19

02896-11008

O-RING

20

07000-12011

O-RING

21

20Y-62-43470

NIPPLE

22

02896-11008

O-RING

23

11Y-62-12140

NIPPLE

24

02896-11008

O-RING

25

07000-12011

O-RING

26

HOSE

27

HOSE

28

HOSE

29

HOSE

30

20Y-62-22790

BAND (RED)

31

20Y-62-22810

BAND (YELLOW)

32

20Y-62-22820

BAND (BLUE)

33

08034-20519

BAND

34

04435-51210

CLIP

35

01583-11408

NUT

36

206-06-61130

SWITCH

37

08193-21012

CLIP

38

08053-01510

CLIP

39

01580-01008

NUT

40

08034-20536

BAND

41

04434-50610

CLIP

42

01580-01008

NUT

43

20Y-06-41251

WIRING HARNESS
