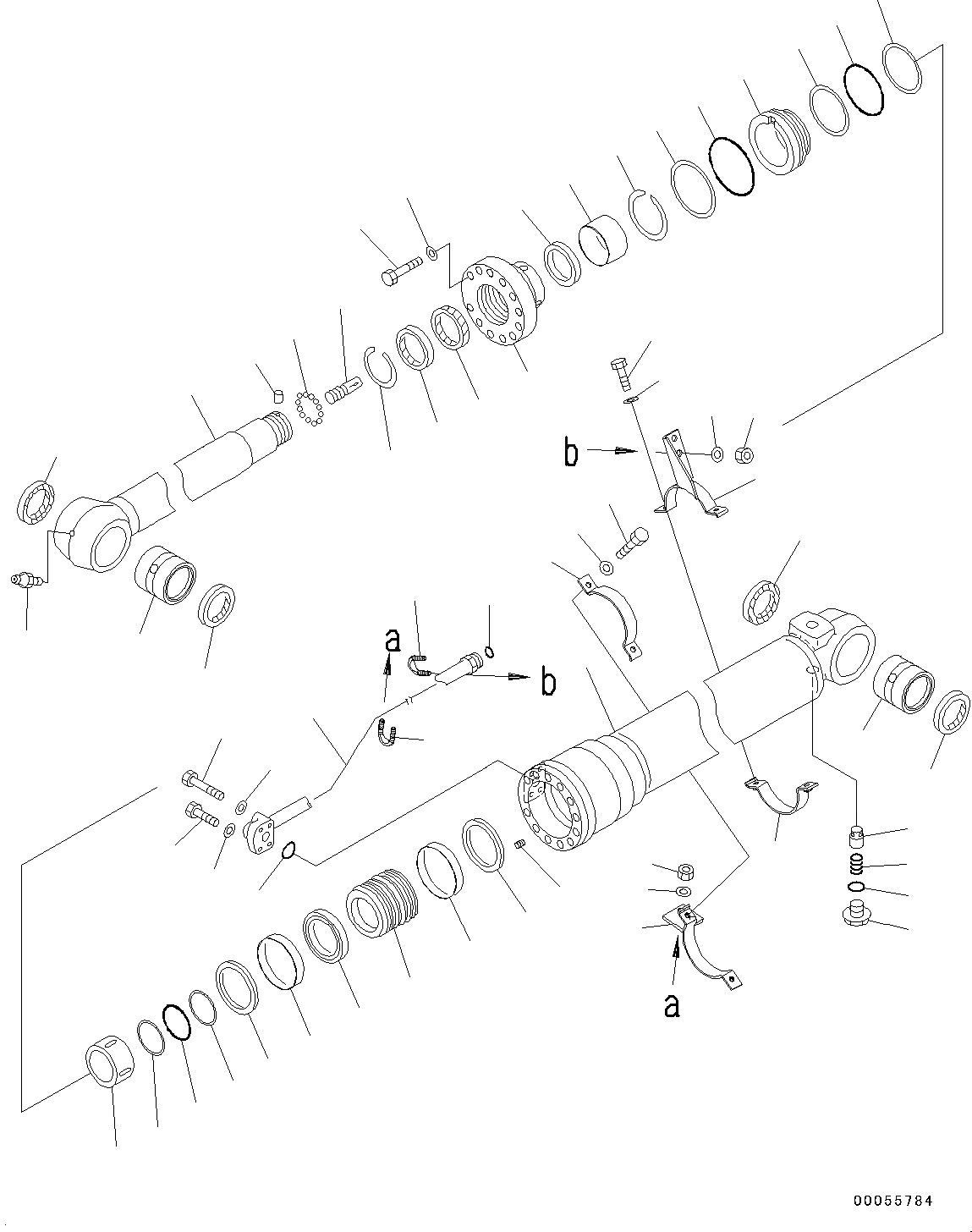

Запчасти Komatsu PC160LC-8 ЦИЛИНДР РУКОЯТИ, ВНУТР. ЧАСТИ РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

707-01-XYK40

Cylinder Assembly

1

707-13-12650

Cylinder

2

707-58-85310

Rod

3

707-76-80010

Bushing

4

07145-00080

Seal, Dust, (Kit : K05)

5

707-76-80010

Bushing

6

07145-00080

Seal, Dust, (Kit : K05)

7

07020-00000

Fitting, Grease

8

707-71-70820

Plunger

9

707-35-91220

Ring, Back-up, (Kit : K05)

10

07000-15110

O-ring, (Kit : K05)

11

707-71-32590

Collar

12

707-71-80230

Plunger

13

04260-00635

Ball, Steel

14

707-71-91270

Cap

15

707-27-12650

Head, Cylinder

16

707-56-85510

Seal, Dust, (Kit : K05)

17

07179-13099

Ring, Snap

18

707-51-85030

Packing, Rod, (Kit : K05)

19

707-51-85650

Ring, Buffer, (Kit : K05)

20

707-52-90611

Bushing

21

707-35-91220

Ring, Back-up, (Kit : K05)

22

07000-15110

O-ring, (Kit : K05)

23

01010-81670

Bolt

24

01643-51645

Washer

25

707-75-85110

Ring, Snap

26

707-36-12851

Piston

27

707-44-12150

Ring, Piston, (Kit : K05)

28

707-39-12140

Ring, Wear, (Kit : K05)

29

707-44-12911

Ring

30

07000-15075

O-ring, (Kit : K05)

31

707-35-90930

Ring, Back-up, (Kit : K05)

32

01310-01216

Screw

33

707-83-13010

Valve

34

07750-01628

Spring

35

707-87-14070

Plug

36

07002-12034

O-ring, (Kit : K05)

37

707-86-68290

Tube

38

02896-61018

O-ring, (Kit : K05)

39

07000-13030

O-ring, (Kit : K05)

40

707-88-22970

Bracket

41

707-88-21630

Band

42

707-88-22930

Bracket

43

707-88-21620

Band

44

07372-21035

Bolt

45

01643-51032

Washer

46

07283-32738

Clip, Pipe

47

01597-01009

Nut

48

01643-31032

Washer

49

07372-21045

Bolt

50

01643-51032

Washer

51

07372-21060

Bolt

52

01643-51032

Washer
