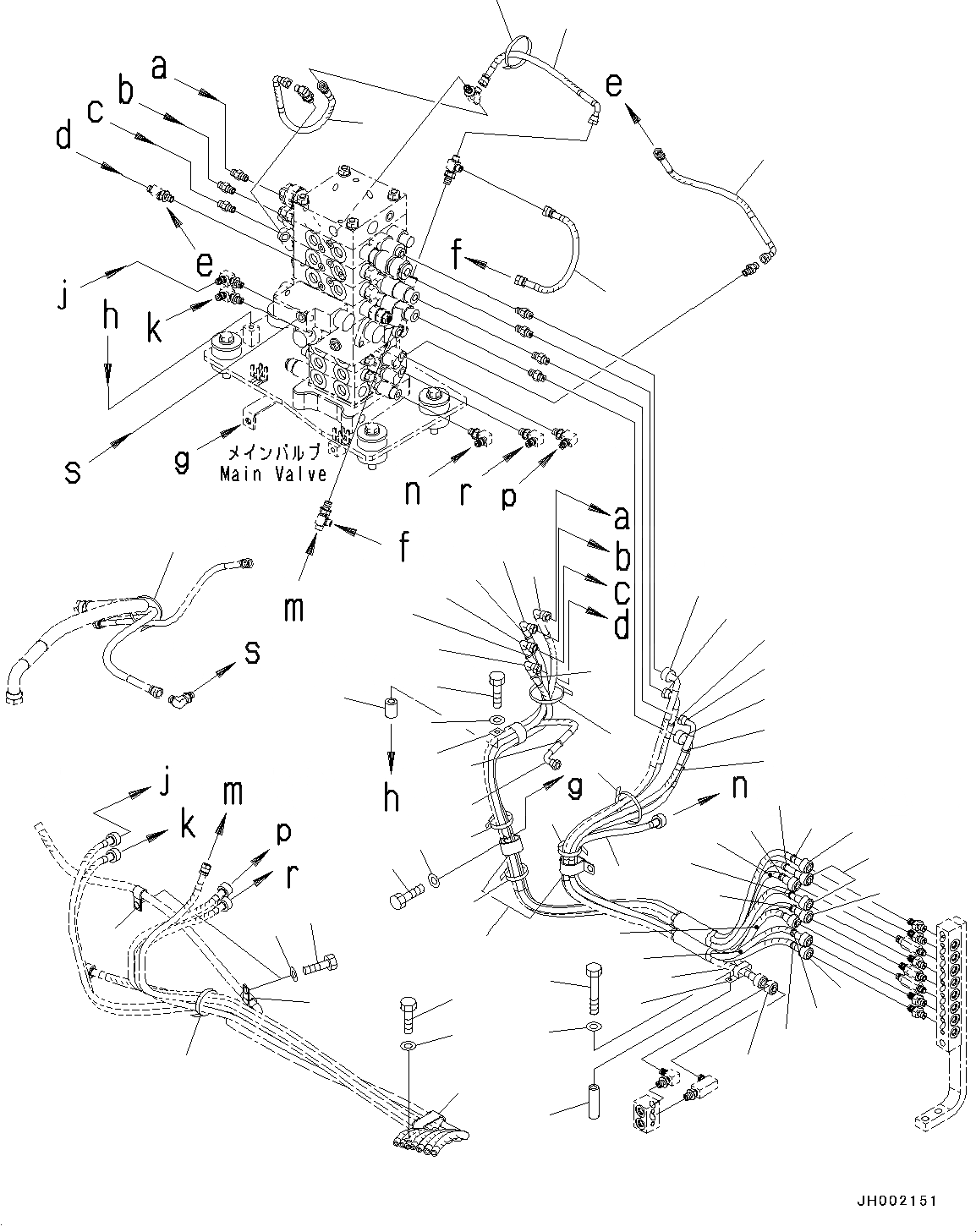

Запчасти Komatsu PC160LC-8 ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛ-Е (PPC) КЛАПАН ТРУБЫ, -АКТУАТОР ГИДРАВЛИКА

1

04434-53412

Clip

2

01010-81225

Bolt

3

01643-31232

Washer

4

20Y-03-11220

Collar

5

04434-53412

Clip

6

01010-81260

Bolt

7

01643-31232

Washer

8

21K-62-71961

Hose

9

21K-62-71970

Hose

10

21K-62-72740

Hose

11

20Y-62-22790

Band, Red

12

20Y-62-22810

Band, Yellow

13

20Y-62-22840

Band, Black

14

20Y-62-22850

Band, Green

15

21K-62-71781

Hose Assembly

16

21K-62-71911

Hose

17

21K-62-71931

Hose

18

21K-62-71940

Hose

19

21K-62-72190

Hose

20

20Y-62-22820

Band, Blue

21

20Y-62-22830

Band, White

22

20Y-62-22860

Band, Brown

23

08034-20834

Band

24

22U-62-26861

Hose

25

22U-62-26861

Hose

26

08034-20834

Band

27

02760-00203

Hose, Face Seal Type

28

195-911-4350

Clip

29

01010-81225

Bolt

30

01643-31232

Washer

31

04434-51612

Clip

32

01010-81225

Bolt

33

01643-31232

Washer

34

08034-20834

Band

35

22S-62-26210

Spacer

36

04435-51212

Clip

37

01643-31232

Washer

38

01011-81210

Bolt
