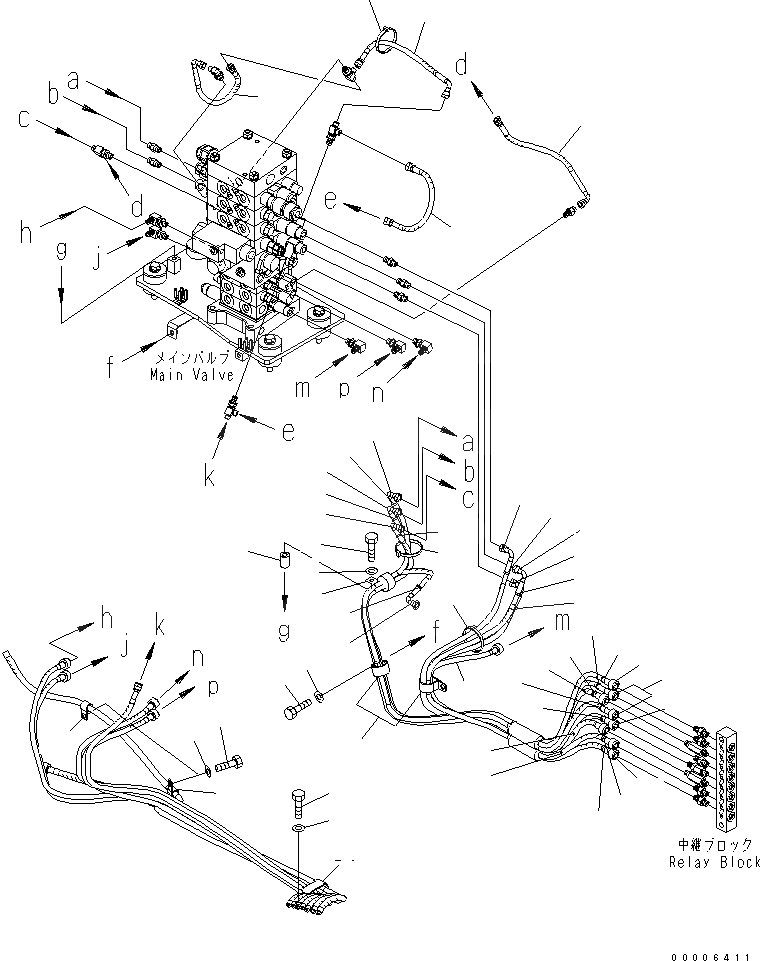

Запчасти Komatsu PC160LC-7K ОСНОВН. КЛАПАН PPC ЛИНИЯ ( АКТУАТОР) ГИДРАВЛИКА

1

20Y-62-15951

CLIP

2

01010-81225

BOLT

3

01643-31232

WASHER

4

20Y-03-11220

COLLAR

5

04434-53412

CLIP

6

01010-81260

BOLT

7

01643-31232

WASHER

8

21K-62-71961

HOSE¤ 1750MM

9

21K-62-71970

HOSE¤ 1450MM

10

21K-62-72740

HOSE¤ 1600MM

11

20Y-62-22790

BAND¤ RED,RED

12

20Y-62-22810

BAND¤ YELLOW,YELLOW

13

20Y-62-22840

BAND¤ BLACK,BLACK

14

20Y-62-22850

BAND¤ GREEN,GREEN

15

21K-62-71911

HOSE¤ 1250MM

16

21K-62-71931

HOSE¤ 1000MM

17

21K-62-71940

HOSE¤ 1200MM

18

21K-62-72190

HOSE¤ 1300MM

19

20Y-62-22820

BAND¤ BLUE,BLUE

20

20Y-62-22830

BAND¤ WHITE,WHITE

21

20Y-62-22860

BAND¤ BROWN,BROWN

22

08034-20834

BAND

23

02761-002A4

HOSE

24

02761-002A4

HOSE

25

08034-20834

BAND

26

02761-00204

HOSE

27

02760-00203

HOSE

28

195-911-4350

CLIP

29

01010-81225

BOLT

30

01643-31232

WASHER

31

04434-51612

CLIP

32

01010-81225

BOLT

33

01643-31232

WASHER
