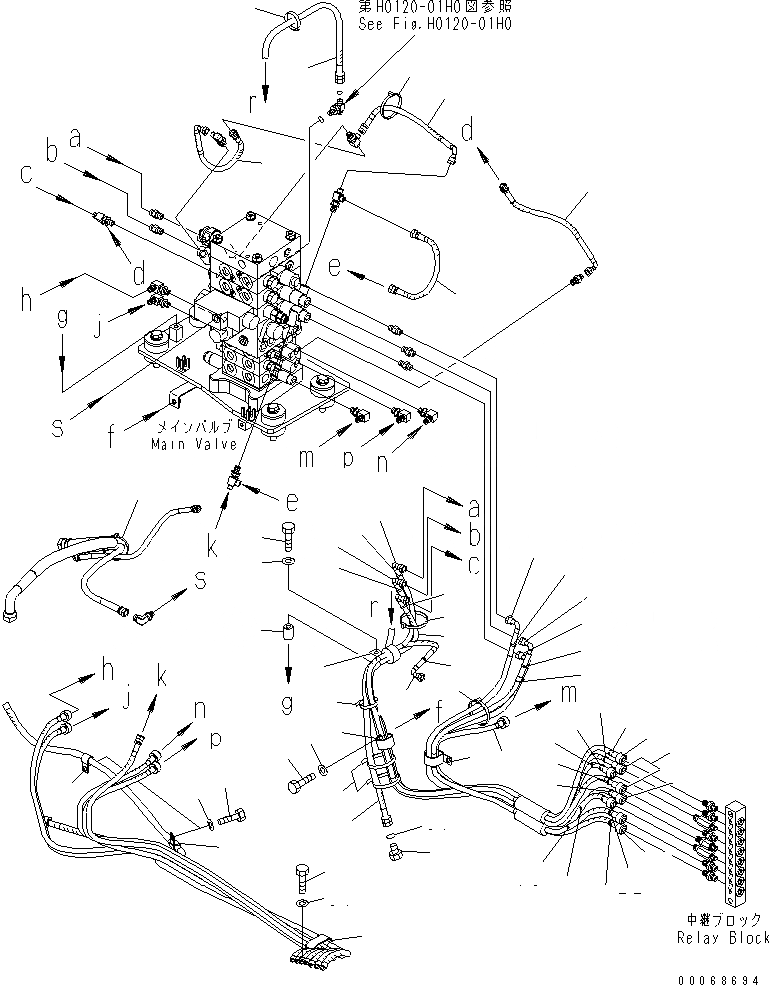

Запчасти Komatsu PC160LC-7E0 ОСНОВН. КЛАПАН PPC ЛИНИЯ ГИДРАВЛИКА

1

20Y-62-15951

CLIP

2

04434-53412

CLIP

3

01010-81225

BOLT

4

01643-31232

WASHER

5

20Y-03-11220

COLLAR

6

20Y-62-15951

CLIP

7

01010-81260

BOLT

8

01643-31232

WASHER

9

21K-62-75360

HOSE, 1750MM

10

21K-62-75330

HOSE, 1450MM

11

21K-62-75350

HOSE, 1600MM

12

20Y-62-22790

BAND, RED

13

20Y-62-22810

BAND, YELLOW

14

20Y-62-22840

BAND, BLACK

15

20Y-62-22850

BAND, GREEN

16

21K-62-75310

HOSE, 1250MM

17

21K-62-75250

HOSE, 1000MM

18

21K-62-75290

HOSE, 1200MM

19

21K-62-75320

HOSE, 1300MM

20

20Y-62-22820

BAND, BLUE

21

20Y-62-22830

BAND, WHITE

22

20Y-62-22860

BAND, BROWN

23

08034-20834

BAND

24

22U-62-26861

HOSE

25

22U-62-26861

HOSE

26

08034-20834

BAND

27

21K-62-75580

HOSE, 400MM

28

22B-62-25320

HOSE, 300MM

29

195-911-4350

CLIP

30

01010-81225

BOLT

31

01643-31232

WASHER

32

04434-51612

CLIP

33

01010-81225

BOLT

34

01643-31232

WASHER

35

02760-00210

HOSE, 1000MM

36

07376-70210

PLUG

37

02896-11008

O-RING

38

08034-20834

BAND

39

08034-20834

BAND
