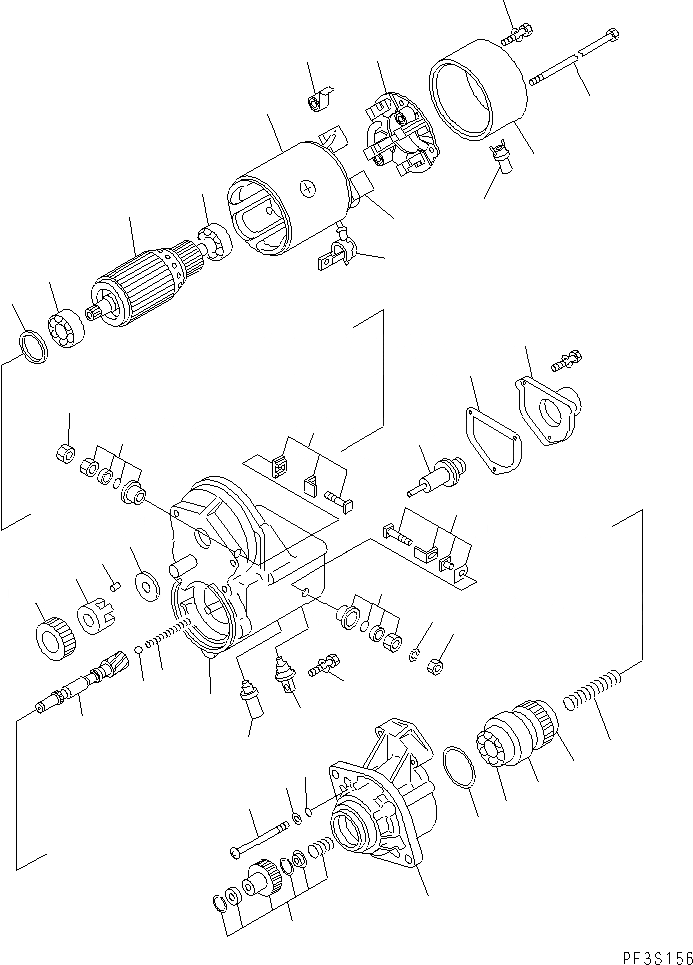

Запчасти Komatsu PC160LC-7 СТАРТЕР (.KW) (С ЗАЩИТА COVER) (ВНУТР. ЧАСТИ) КОМПОНЕНТЫ ДВИГАТЕЛЯ

|1

600-863-4210

STARTING MOTOR ASS'Y,(4.5KW)

1

ND028100-2882

YOKE ASS'Y

2

ND028062-0130

COVER

3

ND028099-3570

STARTER KIT

4

ND028200-1590

ARMATURE ASS'Y

5

ND949100-1930

BEARING,BALL

6

ND949100-1750

BEARING,BALL

|7

ND028300-6551

CLUTCH ASS'Y

7

ND028099-3270

STARTER KIT

8

ND028300-6751

CLUTCH ASS'Y

9

ND949100-4500

BEARING,BALL¤ FRONT

10

ND949100-1920

BEARING,BALL¤ REAR

11

ND949170-4040

SPRING

12

ND028381-0071

SHAFT

13

ND228401-0633

HOUSING ASS'Y

14

ND153400-8530

MAGNETIC SWITCH A.

15

ND028099-5620

STARTER KIT

16

ND028099-3160

STARTER KIT

17

ND053660-7170

PLUNGER

18

ND053404-0240

GASKET

19

ND053505-0290

COVER

20

ND053480-7560

BOLT ASS'Y

21

ND028065-0250

BUSHING

22

ND028510-5390

BRUSH HOLDER ASS'Y

23

ND949173-0571

SPRING

24

ND028501-8091

FRAME

25

ND128961-0010

BALL

26

ND949170-4070

SPRING

27

ND028371-1500

PINION

28

ND028306-0070

ROLLER

29

ND028063-0030

RETAINER

30

ND028327-0171

RETAINER

31

ND128950-0520

BOLT

32

ND949020-0600

WASHER,FELT

33

ND90801-10050

O-RING

34

ND949007-6530

SCREW

35

ND90170-10061

NUT

36

ND949056-4480

NUT

37

ND90258-10001

WASHER

38

ND949006-4720

SCREW

39

ND90200-06241

WASHER

40

ND028062-5790

COVER

41

ND949007-6850

SCREW

42

ND028901-5190

SEAL
