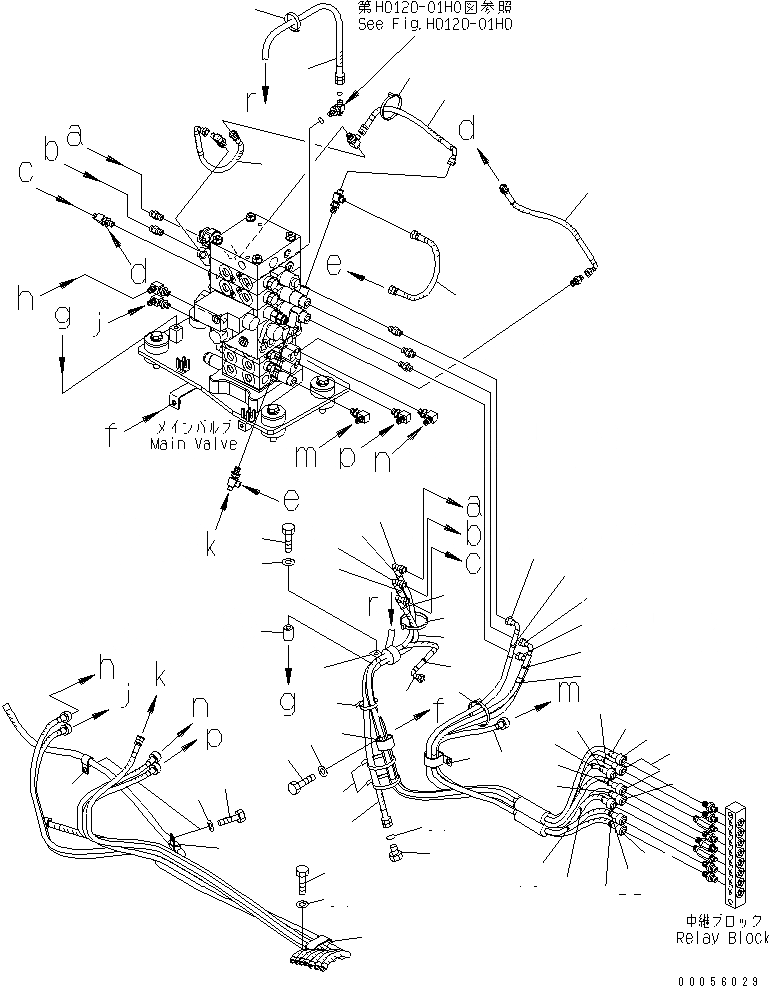

Запчасти Komatsu PC160LC-7-E0 ОСНОВН. КЛАПАН PPC ЛИНИЯ ГИДРАВЛИКА

1

20Y-62-15951

CLIP

2

04434-53412

CLIP

3

01010-81225

BOLT

4

01643-31232

WASHER

5

20Y-03-11220

COLLAR

6

20Y-62-15951

CLIP

7

01010-81260

BOLT

8

01643-31232

WASHER

9

21K-62-75360

HOSE¤ 1750MM

10

21K-62-75330

HOSE¤ 1450MM

11

21K-62-75350

HOSE¤ 1600MM

12

20Y-62-22790

BAND¤ RED

13

20Y-62-22810

BAND¤ YELLOW

14

20Y-62-22840

BAND¤ BLACK

15

20Y-62-22850

BAND¤ GREEN

16

21K-62-75310

HOSE¤ 1250MM

17

21K-62-75250

HOSE¤ 1000MM

18

21K-62-75290

HOSE¤ 1200MM

19

21K-62-75320

HOSE¤ 1300MM

20

20Y-62-22820

BAND¤ BLUE

21

20Y-62-22830

BAND¤ WHITE

22

20Y-62-22860

BAND¤ BROWN

23

08034-20834

BAND

24

22U-62-26861

HOSE

25

22U-62-26861

HOSE

26

08034-20834

BAND

27

21K-62-75580

HOSE¤ 400MM

28

22B-62-25320

HOSE¤ 300MM

29

195-911-4350

CLIP

30

01010-81225

BOLT

31

01643-31232

WASHER

32

04434-51612

CLIP

33

01010-81225

BOLT

34

01643-31232

WASHER

35

02760-00210

HOSE¤ 1000MM

36

07376-70210

PLUG

37

02896-11008

O-RING

38

08034-20834

BAND
