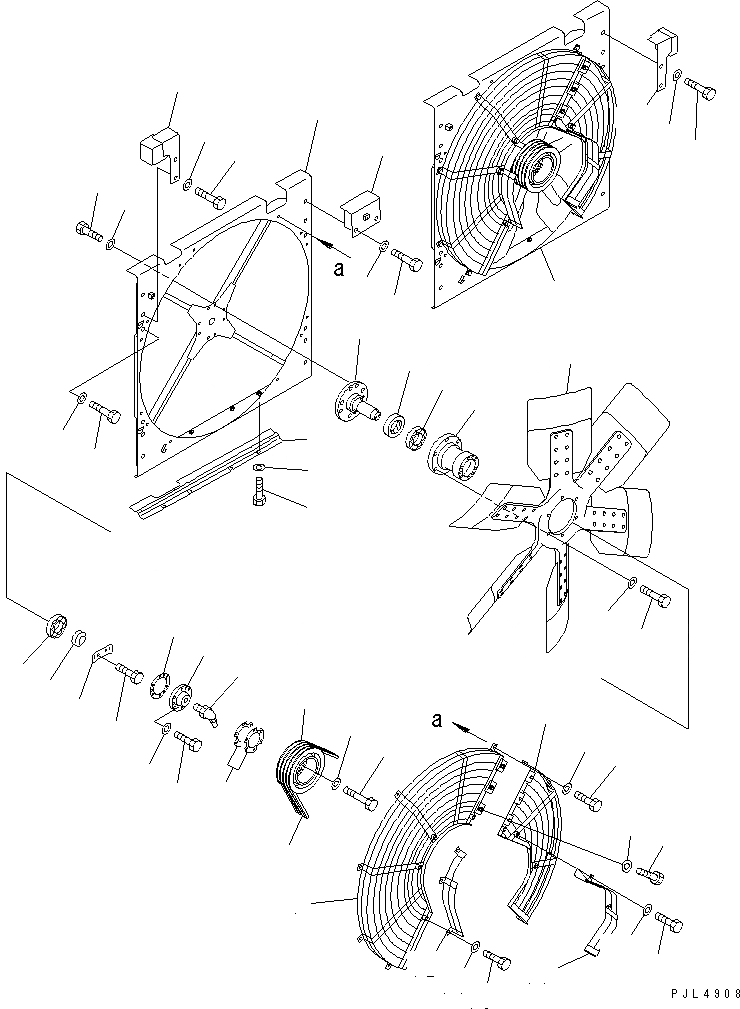

Запчасти Komatsu PC1600SP-1 РЕШЕТКА ВЕНТИЛЯТОРА РАДИАТОРА (SP)(№8-) СИСТЕМА ОХЛАЖДЕНИЯ

1

209-03-51122

GUARD

2

01010-51255

BOLT

3

175-54-34170

WASHER

4

195-03-22230

BRAKER,WIND

5

01010-81025

BOLT

6

01643-31032

WASHER

7

209-03-51510

NET

8

209-03-51521

NET

9

01010-81225

BOLT

10

01643-31232

WASHER

11

209-03-51541

NET

12

209-03-51621

NET

13

01010-81225

BOLT

14

01643-31232

WASHER

15

209-03-21120

SHAFT

16

01010-81235

BOLT

17

01643-51232

WASHER

18

07011-10100

SEAL,OIL

19

06040-06213

BEARING

20

209-03-21130

DRUM

21

600-645-1280

FAN

22

06040-06310

BEARING

23

195-03-11840

HOLDER

24

195-03-11850

LOCK

25

01010-81030

BOLT

26

209-03-11171

GASKET

27

209-03-11160

COVER

28

07020-00675

FITTING,GREASE

29

01010-81030

BOLT

30

01643-31032

WASHER

31

195-03-11880

SHIM, 1.0MM

32

21T-03-71520

PULLEY

33

01010-81260

BOLT

34

01643-31232

WASHER

35

01010-81240

BOLT

36

01643-31232

WASHER

37

21T-03-71351

COVER

38

21T-03-71361

COVER

39

21T-03-71371

COVER

40

600-736-9640

V-BELT SET
